TDT4237 Lectures

Lecture 1: Security principles

Some examples of threats and attacks

• Web defacement: Replace legitimate pages with illegitimate ones
  • Propaganda, etc.
• Infiltration, or control hijacking
  • SMS app virus, Saudi Arabia power plant
• Phishing: Spoofed site that looks real
  • Fake emails, SMSs. Often used to steal personal information
• Data theft/loss:
  • LinkedIn/Twitter emails/passwords databases hacked
• Denial of Service (DoS): flood servers with packets, causing it to drop legitimate packets and become unavailable to real users
  • TDT4237 course website
• Ransomware: Encrypt data, requiring the user to pay to unlock their data. Common today, after the introduction of cryptocurrencies.
  • Nordic Hotels doors, DNV ship software

Basic security goals

• Confidentiality: keep somthing secret
  • Accomplished with cryptography, authentication, authorization
• Integrity: avoiding tampering of data. Data integrity = no corruption. Control integrity = no control hijacking.
  • Accomplised with hashing (sometimes)
• Availability: system uptime, response time and storage
• Privacy: the right to be left alone
  • GDPR
• Accountability:
  • Requires secure timestamping and data integrity of logs
• Non-Repudatiation: two parties cannot deny that they have interacteed with each other. A trusted 3rd party can be used
  • Generate evidence, receipts

Security recommendations

1. Secure the weakest link
2. Practise defense in depth, use layers of defence
3. Fail securely, expect failure of security features
4. Compartmenalize, separate systems*
5. Be reluctant to trust, don't trust code libraries, don't trust users
6. Follow the principle of least privilege, only provide minimal necessary access
7. Keep it simple, complexity creates vulnerabilities
8. Promote privacy, "nice to have" vs. necessary information
9. To hide secrets is hard, a fault of security by obscurity
10. Use your community resources, share known vulnerabilites

Lecture 2: OWASP Testing Guide - part one

Information gathering

Why information gathering?

• Attacker
  • A map to attack
  • Look for low hanging fruit
  • Improve efficiency
• Developer/internal tester
  • Decide test scope, coverage, prioritization
  • Improve test efficiency

What information to gather?

• Application structure
  • All pages you have found in the application
• Including subdomains
  • Any external links
  • Trust zones
• Needs authentication vs. open
• Data flow within the application, e.g.,
  • Parameters and value
  • Get and post
• Infrastructure or platform, e.g.,
  • Web server (WSTG-INFO-02)
  • Applications on the webserver (WSTG-INFO-04)
  • Application entry points (WSTG-INFO-06)
  • Execution path through application (WSTG-INFO-07)
  • Web application framework (WSTG-INFO-08)

Tools for information gathering

• Website copier (e.g., HTTtrack, VisualWget)
• Web debugging proxy server (e.g., Firefox Developer Tools, Fiddler)
• Tool sets (e.g., Kali Linux, Burp Suite and OWASP Zap)

Injection attacks

All input is evil. - Michael Howard, Microsoft

• SQL injection
• Blind SQL injection
• Xpath injection
• …

SQL injection countermeasures

• Blacklisting
• Whitelisting
• Escaping
• Prepared statement & bind variables
• Mitigating impact

Session management attacks

Why session management?

• HTTP is stateless
• Impossible to know if Req1 and Req2 are from the same client
• Users would have to constantly re-authenticate
• Session management
  • Authenticate user once
  • All subsequent requests are tied to the user

Where to store session token

• Embed in all URL links (??) https://site.com/checkout?sessionToken=1234
• In hidden form field (??) <input type= “hidden” name = “sessionToken” value =“1234”>
• Browser cookie setcookie: sessionToken = 1234

Session management attacks

• Session token theft
• Session token predication attack
• Session fixation attack

Lecture 3: OWASP Testing Guide - part two

XSS

• The attacker injects malicious script into your page
• The browser thinks it is your legitimate script
• Can be used for session token theft

Reflected vs Stored

• Reflected XSS
  • JaveScript injected into a request
  • Reflected immediately in response
• Stored XSS
  • Script stored somewhere (i.e., DB) in server
  • Script injected into a request
  • Reflected repeatedly
  • More easily spread

Mitigation

• Sanitize data

Cross-Site Request Forgery (CSRF)

Server-Side Request Forgery (SSRF)

• XML External Entities (XXE) Attack

Software and data integrity failure

Identification and authentication failure

Authentication

• The process of verifying who you are
• Three general ways
  • Something you know (password)
  • Something you have (phone)
  • Something you are (biometrics)

Hashing

• Salt
• Pepper

Other password security techniques

• With hash, pepper, and salt, the dictionary attack is harder, but not impossible
• Other authentication countermeasures
  • Filtering
  • Limiting logins
  • Aging password
  • Last login/ Protective monitoring
  • One-time password
  • Two-factor/two-channel authentication

Security logging and monitoring failures

• Auditable events, such as logins, failed logins, and high-value transactions are not logged
• Warnings and errors generate no, inadequate, or unclear log messages
• Logs of applications and APIs are not monitored for suspicious activity
• Logs are only stored locally
• Appropriate alerting thresholds and response escalation processes are not in place or effective
• Unable to detect, escalate, or alert for active attacks in real time or near real time.

Clickjacking

• Attacker overlays transparent frames to trick user into clicking on a button of another page
• Defend against Clickjacking
  • X-Frame-Options : deny completely disables the loading of the page in a frame,

Lecture 4: Cryptography

You are expected to learn basic concepts of popular cryptography algorithms and how to use them

• Ciphers, e.g., AES, 3DES
• Cryptographic hash function, e.g., MD5, SHA-1, SHA-2
• Public key cryptography, e.g., RSA, ECDSA

Secure communication has two steps

1. Establish a shared secret key
2. Transmit data using the shared secret key

Lecture 5: Autorization and stuff

Access control

• Access control policy
  • Definition of what it means to be secure
  • A statement of what is, and what is not, allowed
• Access control model
  • A succinct and formalized representation of security policy and it working
• Access control mechanism
  • Low-level functions that implement the controls imposed by the policy and the model
• Awareness
  • Education
• Management
  • Operation

Privilege creep: People end up wih more access than necessary

Access control on different levels

• Application
• Middleware
• Operating system
• Hardware

Access control models

• Discretionary access control (DAC)
• Mandatory access control (MAC)
• Role-based access control (RBAC)
• Attribute-based access control (ABAC)
• Context-based access control (CBAC)
• Graph-based access control (GBAC)
• Lattice-based access control (LBAC)
• Organization-based access control (OrBAC)
• Rule-set-based access control (RSBAC)

Comparison

Discretionary access control (DAC)

• Owner of a resource decides how it can be shared
• The owner can choose to give read, write, or other access to other users
• Vulnerabilities of DAC
  • Does not distinguish between user and process
  • Vulnerable to a process executing malicious programs (Trojan Horse) exploiting the authorization of the user

Access control implementation	Figure

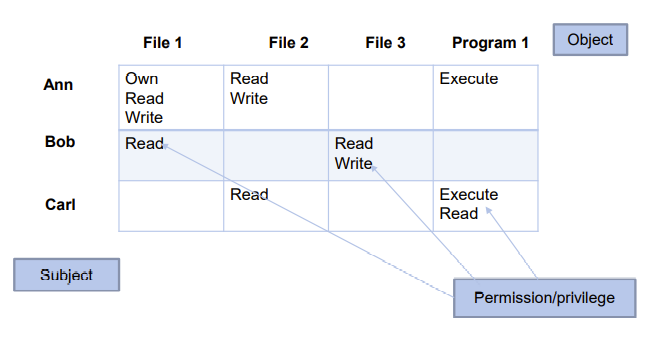

Access control matrix

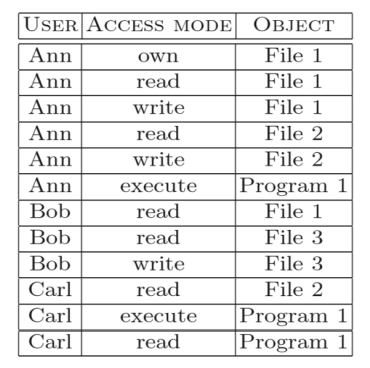

Authorization table

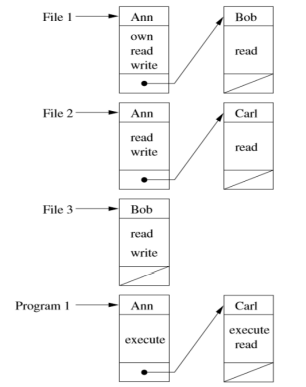

Access control list (ACL)

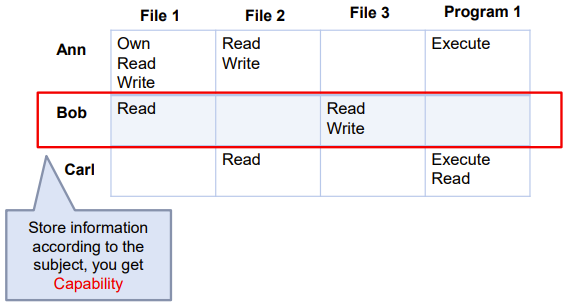

Capabilities

Mandatory Access Control

• Unlike discretionary access control (DAC) where users can take their own access decisions about their files
• Mandatory access control (MAC) means that systems enforce a security policy independent of the user’s action
• Enforce access control on the basis of regulations mandated by a central authority
• Access class is assigned to each object and subject

Bell-LaPadula model

• Ensures confidentiality
• Levels of confidentiality
  • No read up (NRU)
  • No write down (NWD) (* property)
    • Don't write something that should be secret
  • Strong *: only allows operations on the same level

Biba model

• Ensures integrity, source of truth
• Levels of integrity (/trustwortyness)
  • No write up (NWU)
    • No improper modification of high integrity objects from the low classified subject
  • No read down (NRD)
    • High integrity object is not contaminated due to reading and using unreliable data

Role-Based Access Control

Attribute Based Access Control

• RBAC is for coarse-grain access control
• ABAC is for fine-grain access controls (more difficult to use correctly )
• RBAC before ABAC (who can see what module BEFORE what can they see inside a module)

Authentication and Single Sign On (SSO)

SSO Trends

• From SOAP/XML to more lightweight HTTP/JSON
• Social Sign-in (Facebook, Google, etc. )
• OpenID Connect (Authentication) and OAuth 2.0 (Authorization)
• From authentication only to API authorization (and data access)

Control hijacking

• Take over target machine (e.g., webserver)
• Execute arbitrary code on target by hijacking application control flow
  • Compromise Confidentiality, Integrity, Availability
• Targets mainly C/C++ code
• Buffer overflow attacks
