Introduction to ARM Assembly Language

• Chapter 1 (1.1 - 1.3.5)
• Chapter 2 (2.1 - 2.3.2)

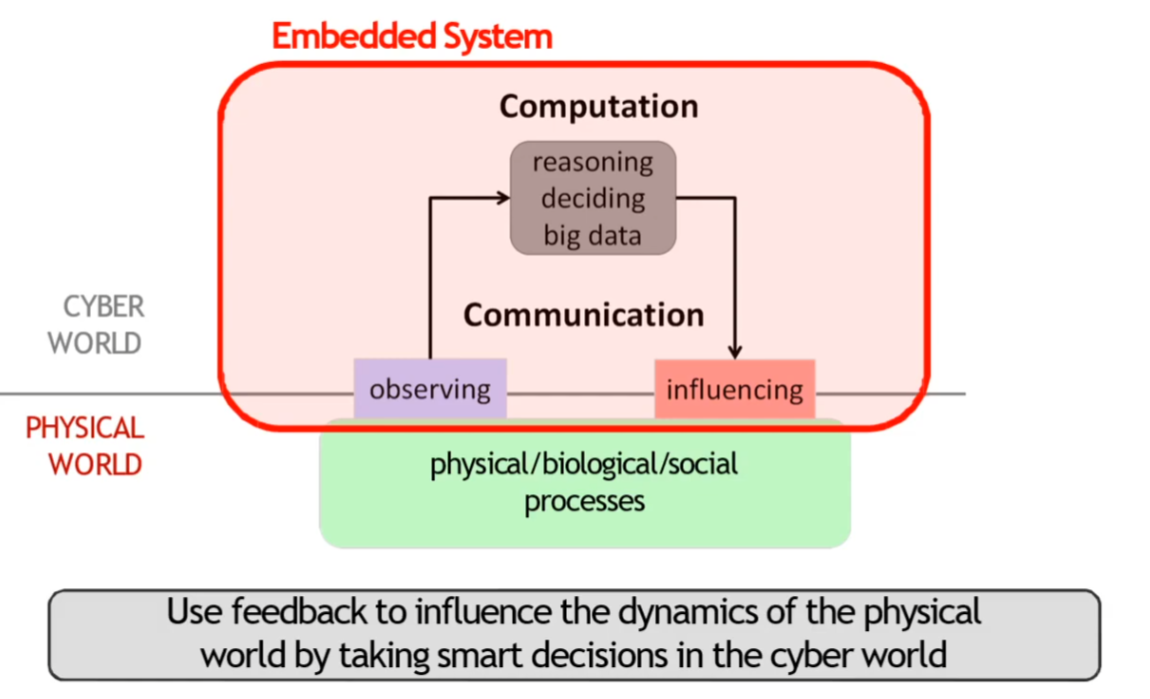

Embedded System Basics

Definition

Embedded System: Any device that includes a programmable computer but is not itself a general purpose computer.

An alternate definition: A computing system, specialized for only a few applications with none (or minimum) end user programmability, embedded into a larger product.

The main purpose of the product with an embedded system is not computing.

Design objectives

• Predictability

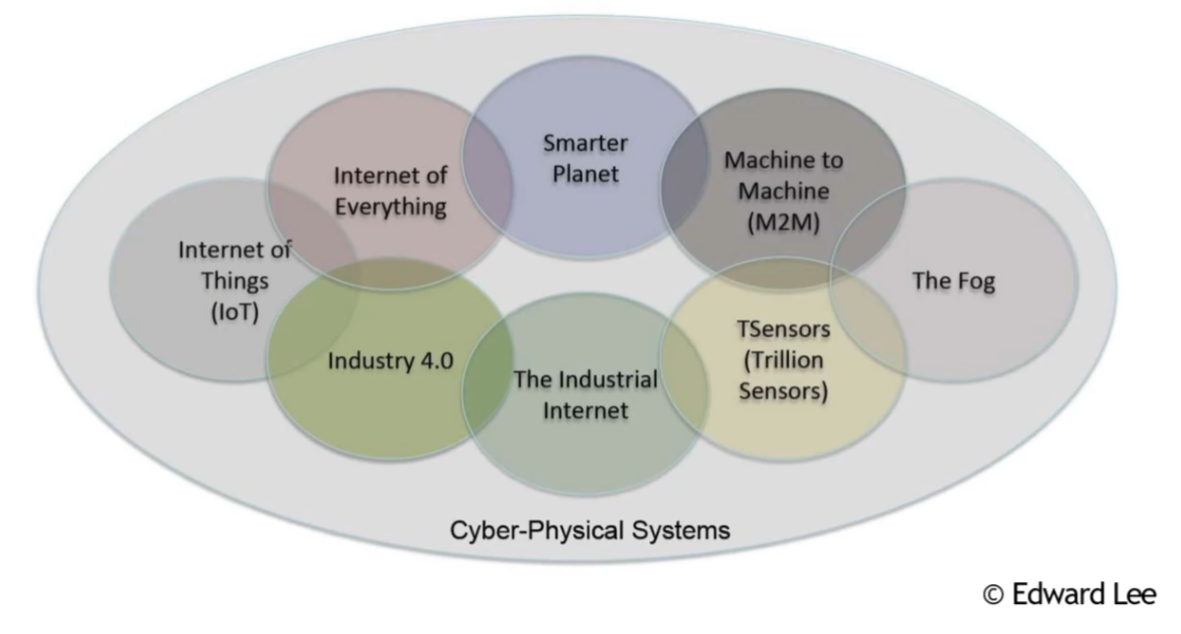

  • "It is essential to predict how a CPS (cyber-physical system) is going to behave under any circumstances (...) before it is deployed" (Maj, 14)
• Dependability
  • "CPS must operate dependably, safely, securely, efficiently and in real-time." (Raj, 10)
• "Efficiency
  • Energy and run-time efficient
  • Weight and cost efficient
• Reactive
  • Must react to stimuli from environment
  • "A reactive system is one which is in continual interaction with its environment and executes at a pace determined by that environment." (Bergé, 1995)
• Time constrained
  • Must meet real-time constraints
  • For hard real-time systems, right answers arriving late are wrong.
  • "A real-time constraint is called hard, if not meeting that constraint could result in a catastrophe" (Kopetz, 1997)
• Specialized
  • Specialized towards few applications or domains
  • Domain knowledge helps optimize the design e.g. minimize resource usage, maximize predictability, etc.

Embedded vs General Purpose System

Embedded System Design

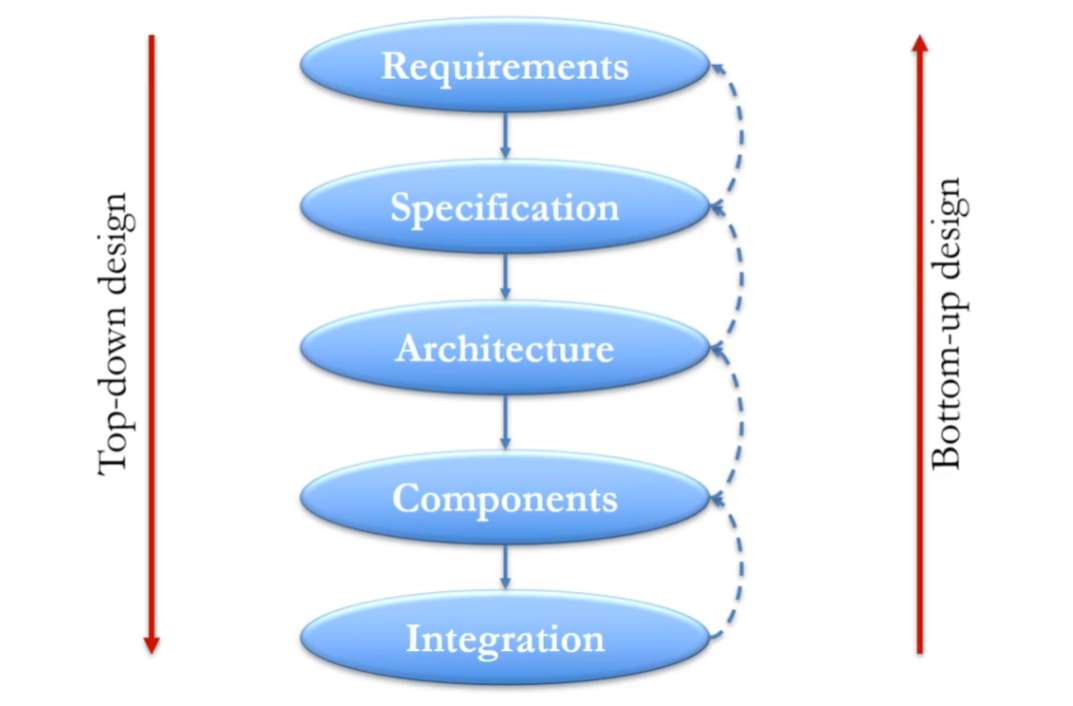

Embedded system design flow

Requirements

Informal description of the system in layman's language.

• Functional: Answers the question - "What should the system do?"
  • E.g.: A GPS Moving Map should display the map of terrain around user's current position.
• Non-functional: Requirements not related to the functionality - such as cost, size, power, etc.
  • E.g.: A GPS Moving Map should cost under 1000 NOK, fit in the palm of a hand, and run for atleast 8 hours on two batteries.

Specification

An unambigous technical description derived from Requirements. Detailed enough to design the system architecture.

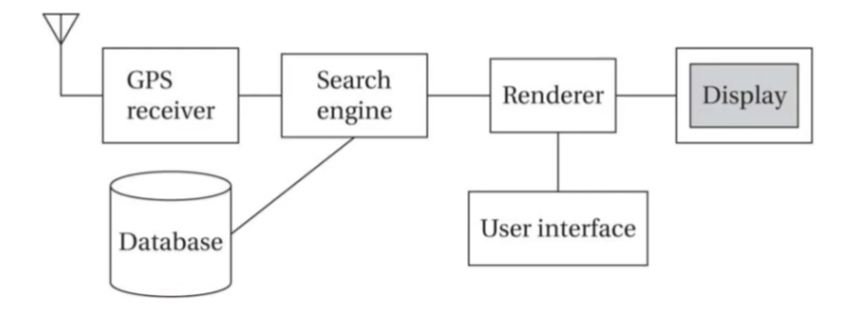

Architecture

A high level overview of system structure in terms of components needed and their interaction.

Key challenge: How to distribute the functionality among hardware and software to meet the competing requirements: cost, performance, power, etc.

Components

Choose or build the components to implement the Architecture and meet the Specifications.

• Standard components: CPUs, memory, software libraries, etc.
  • E.g.: GPS receiver and topographic database
• Custom components: Printed circuit boards, software modules, etc.
  • User interface

Integration

Put the components together and make the system work!

Key challenge: Unforeseen bugs may appear during integration.

• Requires debugging
• Careful component designing can help a lot.

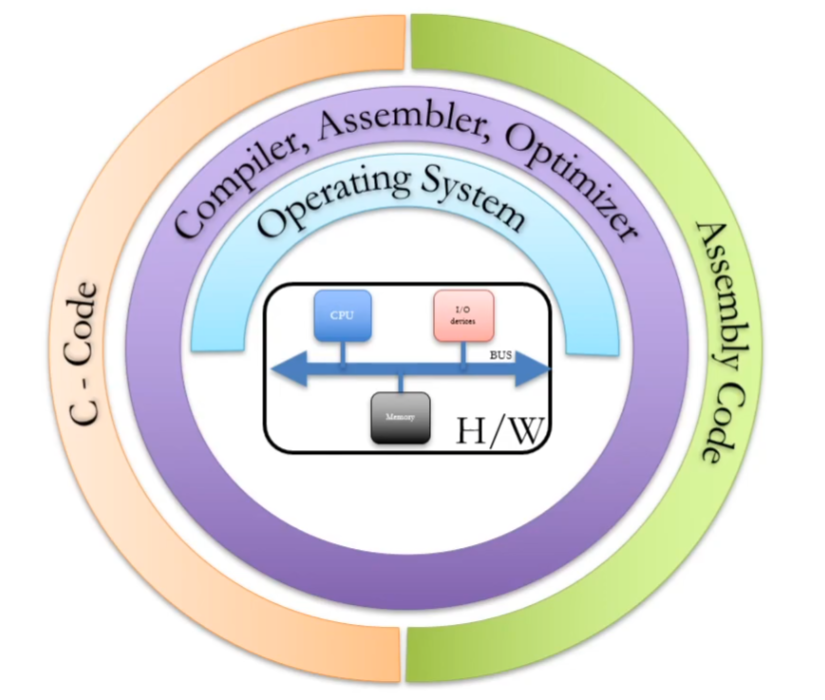

Embedded System: Programming the hardware

Assembly Programming Introduction

In this course, we will examine ARM ISA (Instruction Set Architecture) to learn assembly.

Instruction Set Architecture (ISA)

• Programmer's view of hardware
• Interface between hardware and software
  • Defines processor recognizable machine instructions
  • Defines architecture state, memory management, etc.
• Why is it useful?
  • Abstracts away hardware implementation details
  • Software can be developed (somewhat) independent of hardware implementation
  • Enables multiple implementations (called Microarchitectures) of the same ISA

Machine and assembly instructions

• Machine instructions
  • Strings of binary numbers
  • Example: 01001011010100101011010010001010
  • Processor works with machine instructions but they are difficult for humans to understand
• Assembly instructions
  • Symbolic representation of machine instructions
  • Easier for humans to understand
  • Strict one-to-one mapping between machine and assembly instructions

Assembly code example

Hight level language (c/Java)

a[0] = b[0] + 5;

Assembly code:

ldr r3, [r1]  ; get the value to b[0] from memory to r3
add r4, r3, 5 ; add 5 to b[0] and store in r4
str r4, [r2]  ; save r4 to a[0]

Things to notice:

• Data needs to be brought to registers from memory to operate on it
• Separate instructions to access data (from memory) and operate on it
  • Called load-store architecture
  • An alternative architecture: register memory architecture

ARM architecture (ISA)

• ARM is a load-store architecture
• Offers several variants
  • ARMv8: 64-bit architecture
  • ARMv7: 32-bit architecture
    • All instructions are also 32-bit
  • Thumb architecture
    • 16-bit instructions to reduce code size
  • Thumb-2 architecture
    • Supports both 16-bit and 32-bit instructions

The Thumb-2 architecture will be used in the labs of this course.

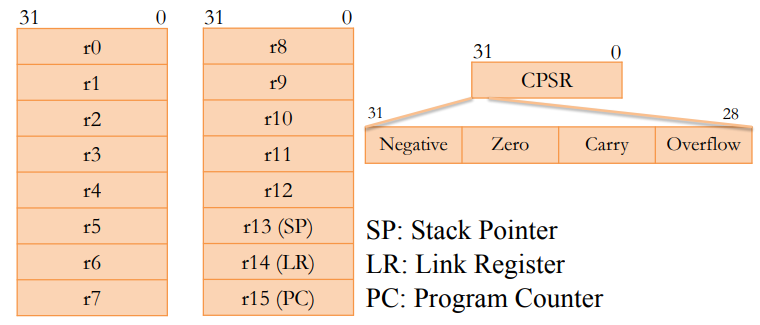

Registers

• Registers are storage locations inside the processor that hold program variables and control state
• Thumb-2 provides 16 general-purpose registers (r0-r15) and a current program status register (CPSR). Each register is 32-bit wide

Thumb-2 Instruction Categories

• Memory access instructions
  • To transfer data between registers and memory
  • Only instructions that can access memory
  • Examples: ldr, str, etc.
• Arithmetic/logic instructions
  • Perform the desired operation like: add, subtract, shift, or, and
  • Operate only on registers
• Control transfer (a.k.a. branch) instructions
  • Control the flow of program execution
  • Jumps, loops, etc.

More details in the text book and Thumb-2 manuals!

Writing your first assembly program

Preparing to write an assembly program

High level language statement:

g = A[1] + 5

; offset in number of bytes, for int32: 4 bytes
ldr r3, [r2, #4] ; r3 = r2[1]
add r4, r3, #5   ; r4 = r3 + 5

Writing an assembly program

High level language program:

int a[2] = {10, 20};
int x;
x = a[0] + a[1];

.section .text
  ldr r1, =a ; ldr is a pseudo-op here, loading the address of a
  ldr r2, [r1]
  ldr r3, [r1, #4]
  add r4, r2, r3
  ldr r1, =x
  str r4, [r1]

.section .data
a:
  .word 10 ; a[0]
  .word 20 ; a[1]
x:
  .word 0 ; x

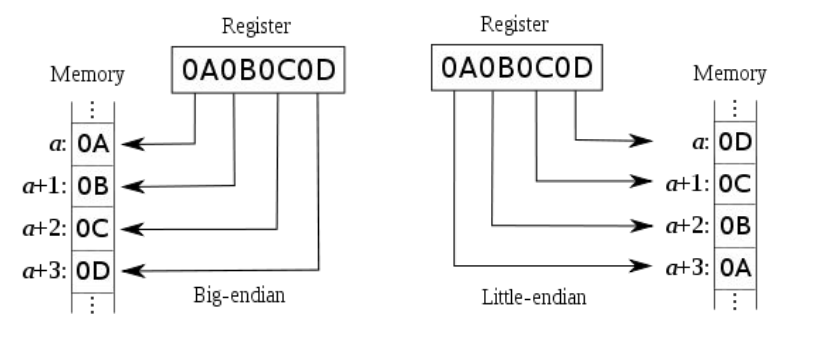

Memory addressing: Endianness

• Given a memory address, Endianness tells where to find the first byte of a word.
• ARM supports both little and big endianness
