Introduction to C programming

• Chapter 2 (2.9)
• Chapter 4
• Chapter 5
• Chapter 6

Intro to C

Procedural vs Object-oriented

• Different ways of thinking
• Procedural (or Imperative) languages
  • Example: C
  • Programmers think in terms of operations to be done and supply data for the operation
    • add (a, b);
• Object-oriented languages
  • Example: C++, Java
  • Programmers first think of the objects to be operated on and then what operation to perform.
    • rect.area();

C is less “safe”

• Run-time errors are not ‘caught’ in C
  • The Java interpreter catches these errors before they are executed by the processor
    • Example: array out-of-bounds exception
  • C run-time errors happen for real and the program crashes
• The C compiler trusts the programmer!
  • Many mistakes go un-noticed, causing run-time errors and leaving systems vulnerable to security exploits

Built-in data types

• The usual basic data types are there: char 8 bits short 16 int 16, 32, 64 (same as machine word size) long 32, 64 float 32 double 64
• Data type sizes are machine dependent
  • Unlike Java where an int is always 32 bits
• Normally signed, unsigned available too
• No boolean type exists
  • for any number (int, char,…): 0 false, other true

Intro to Pointers

Pointers in C

• Pointers are special variables that reference (or point to) another variable
• We have already seen pointers in assembly: ldr r1,[r2]
  • r2 is a pointer
  • C pointers are the same thing!
• r2 points to the location in memory where the “real” data is kept
• r2 is a register, but there’s nothing stopping us to have pointers stored in memory like “normal” variables
• A C pointer is a variable that holds the address of a piece of data
• Declaration: int \*p; // p is a pointer to an int
  • The compiler must know what data type the pointer points to
• Basic pointer usage:

p = &i; // p points to i now
\*p = 5; // \*p is another name for i

• & - address of operator. * dereference operator

Pointers as function arguments

• In Java
  • an argument with primitive type is passed by value (function gets copy of value)
  • an argument with class type is passed by reference (function gets reference to value)
• In C
  • Most arguments passed by value
  • To get effect of `pass by reference’, use an argument with a pointer type

Memory Mapping

Two’s complement

• Flip all the bits
• Add one

Sign extension

When extending a two's complement value, we don't append zeros to the left, we append the value of the left-most bit.

Memory Manipulation with Pointers

• Q: If all pointers are 32-bit wide, why do we need to declare their datatype?
• A: The datatype provides the size (or type) of the variable the pointer points to.

Casting

int i = 4;
short s;

• s = i; copies the two right-most bytes, resulting in s = 4
• s = *(short*)&i; copies the two left-most bytes, resulting in s = 0

short s = 4;
int i;

• i = s; places the two bytes from s into the right side of i, resulting in i = 4
• i = *(int*)&s; copies the two bytes from s into the left side of i, resulting in i = 2^20

Structures in C

Composite data types - struct

• Structures are like objects, but their types have no methods, unlike classes:

struct point {
 int x, y;
 // can include other structs
} p1;
struct point p2;

• Members accessed using “.” operator: p1.x = 2;
• Notice that pointers use a different operator to access members.

p1.x = 10;
struct point *p2 = &p1;
p2->x = 20;
(*p2).y = 30; // equal to p2->y = 30

What does p1.y translate to in Assembly?

; r1 points to the starting addr of p1
ldr r0, [r1] ; loads p1.x
ldr r0, [r1, #4] ; loads p1.y

Arrays in C

• Syntax of C arrays similar to Java
• As in Java, C arrays have fixed size
• Example declarations of array:

int m[] = {5, 8, 10}; // size fixed to 3
int n[2][10]; // two-dimensional array
 // with 2 rows and 10 cols
point p[4]; // array of 4 structs

• C arrays have no knowledge of their length
  • No checking that indexes are within bounds
• In C, close relationship between arrays and pointers
  • Pointers commonly used to pass arrays between functions

More pointer arithmetic

• Common expressions:
  • *p++ use value pointed by p, make p point to next element
  • *++p as above, but increment p first
  • (*p)++ increment value pointed by p, p is unchanged
• Special value NULL used to show that a pointer is not pointing to anything
  • NULL is typically 0, so statements like if (!p) are common
• Dereferencing a NULL pointer is a very common cause of C program crashes

Memory Management

• Pointers are not much use with statically allocated data
• Library function malloc allocates a chunk of memory at run time and returns the address

int *p;
if ((p = malloc(n*sizeof(int))) == NULL)
{
 // Error
}
...
free(p); // release the allocated memory

Memory management is different

• In Java
  • All objects dynamically allocated
  • Unusable objects recycled automatically by garbage collection
• In C
  • No objects, only data structures
  • Some data structures statically allocated, others dynamically
  • Dynamically-allocated storage must be reclaimed (or freed) once the data structures there are no longer needed.
    • Major source of error, particularly when the programmer forgets to free the memory, resulting in memory leaks.

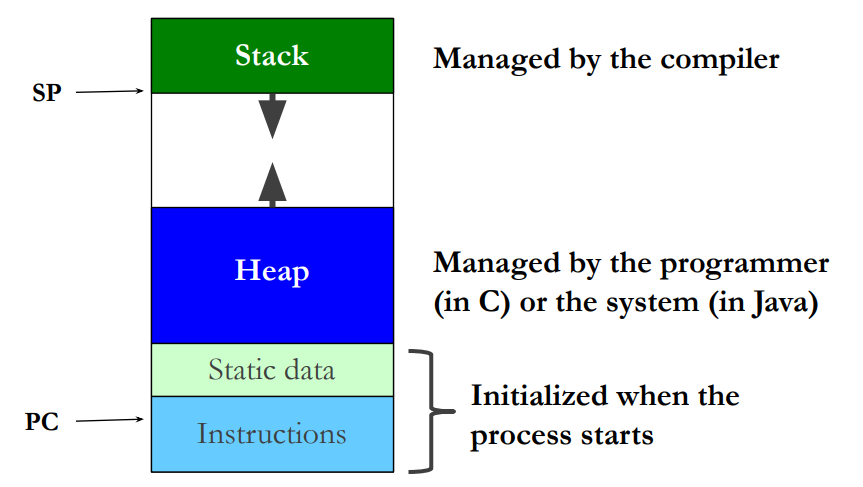

Memory regions and management

• Memory areas
  • Heap: dynamically allocated storage
  • Stack: for function/method local variables
  • Static: for data living program lifetime
• In Java
  • All objects on heap
  • Unusable objects on heap recycled automatically by garbage collection
• In C
  • Data structures in all 3 areas
  • Programs must explicitly free-up heap storage that is no longer needed

Memory regions in detail

Categories of variables in C

• Global variables (statically allocated)
  • Defined outside of functions
  • Have lifetime of program and scope to file end
  • extern declarations extend scope before definition and to other files
  • Declare static to hide from other files
• Local (automatic) variables (allocated on stack)
  • Defined inside a function
  • Not available outside function
  • Distinct storage for each function invocation
  • Declare static for same storage for all invocations
