Power and Wrap Up

• Chapter 3 (3.6)

Power Basics

Power vs Energy

• Power = Energy/Time

• Watt = Joule/Sec

• Energy is the integral of power

Power vs Energy: What to optimize

• Maximize battery life -> minimize energy consumption
• Minimize heat -> minimize peak power draw

Power Consumption

CMOS Invertor: Power Analysis

• In steady state, there is no path between power supply (Vdd) and ground hence, there is no power consumption.
• Power is consumed only during input/output transitions.

Dynamic Power

• Power consumed by circuit while doing some (useful) activity. (This is what we have seen so far)

$$P_{dynamic} = \alpha f C V_{dd}^2$$

• $\alpha$ : activity factor
• $F$ : frequency
• $C$ : capacitance
• $V_{dd}$ : supply voltage

Static Power

• Power consumed by circuit while doing nothing.
  • Transistors leak even when they are in off state.

1. Sub-threshold leakage
2. Gate leakage
3. Junction leakage

$$P_{static} = V_{dd} \cdot I_{static}$$

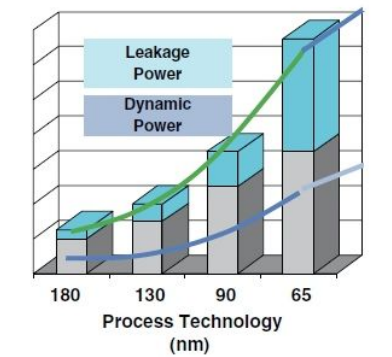

Dynamic vs Static Power Distribution

• Static power dominates overall power consumption in smaller technology nodes:
  • Leakage increase

Hardware Techniques to Reduce Power

Reducing energy consumption

• Hardware techniques
  • Clock gating
  • Power gating
  • ...
• Software techniques
  • Sleep modes
  • Dynamic voltage and frequency scaling (DVFS)
  • ...

Clock Gating

• Digital circuits typically change stage only on the rising/falling edge of clock

• Idea: turn off clocks to the circuits not in use

• $f = 0 \implies P_{dynamic} = 0$

Power Gating

• Digital circuits consume power even when frequency is 0 due to leakage

• Idea: turn off power supply to the circuits not in use

  • No power no leakage

• $V_{dd} = 0 \implies P_{static} = P_{dynamic} = 0$

Power Gating Overhead

• Energy overhead: Energy required to power-down and then power-up a unit
  • Energy saved by power gating should be more than the overhead of power gating.
• Performance overhead: Time required for a unit to be fully activated before it can be used
• The overhead has to be paid every time a unit is power gated.

Clock/Power Gating Summary

• Turn off clock/power to the circuit not in use
• A complex chip can have multiple clock domains
  • Each domain has it’s own clock distribution network
  • Each domain can be gated independent of others
• A chip can also have multiple power domains
  • Each domain with it’s own power distribution network and gating circuit.

Software Techniques to Reduce Power

Operating System Power Management

• Hardware provides multiple power modes
  • OS can exploit them to reduce power consumption without missing deadlines.
• Sleep modes provide maximum power saving
  • Similar to power gating, though controlled by OS, not by hardware
  • There is an overhead on entering and exiting the sleep modes
  • Multiple levels to trade-off the overhead and power savings

DVFS

• Dynamic Voltage and Frequency Scaling
  • OS can choose among multiple voltages and frequencies
• Reducing frequency reduces dynamic power consumption
  • How about energy?
• Reducing voltage reduces both dynamic and static power consumption
• OS needs to adjust voltage and frequency such that the CPU runs just fast enough
