Compilation and Optimizations

• Chapter 5 (5.1 - 5.7)

Intro to Compilers

Overview

• Programs are divided into compilation units
  • Provide degree of modularity
  • Each commonly has main file (.c) for source code
  • Header files (.h) declare public interfaces of units
• Each unit is compiled separately to relocatable object code
  • Allows creation of object-code libraries
• A linker combines these into an executable, resolving references between units
• A loader sets up the executable program in memory and initialises data areas, prior to the program being run

Declaration vs Definition

• Declaration: inform the compiler of the existence of a variable or function

void swap(int *a, int *b); // in .h file

• Definition: provide function body; allocate memory for local variables

void swap(int *a, int *b) { // in .c file
 int temp = *a;
 *a = *b;
 *b = temp;
}

Compilers Frontend

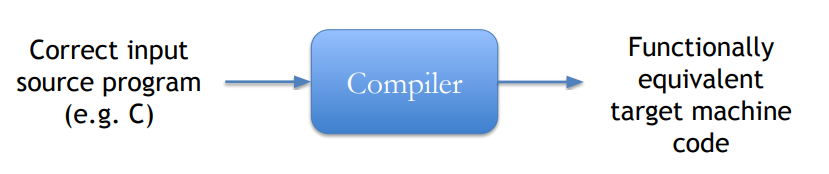

Compilers

• Bare minimum for a functional compiler

• Good compilers o Produce meaningful errors on incorrect programs o Produce fast, optimized code

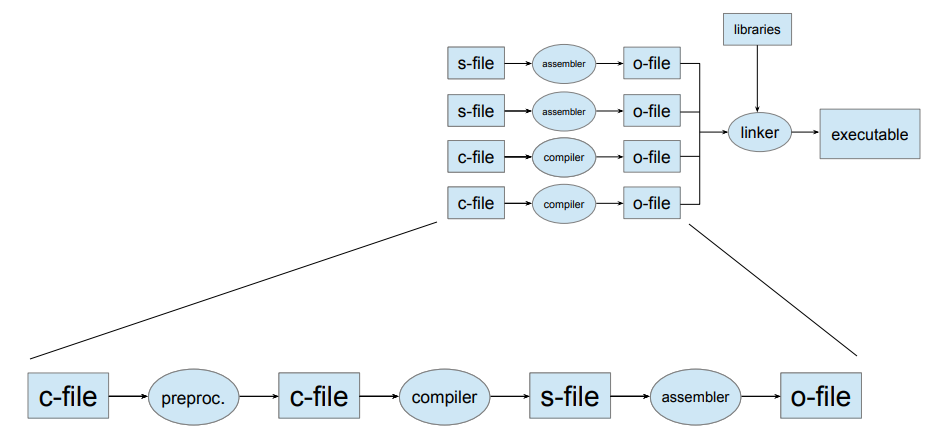

Detailed Compilation Flow

The C pre-processor

• Includes - imports header files

#include <stdio.h>
#include "A.h"

• Text substitution, e.g. define constants

#define NAME value

• Macros (inline functions)

#define MAX(X,Y) (X>Y ? X : Y) // careful with macros!

• Conditional compilation

#ifdef DEBUG
printf("Debugging message");
#endif

// $ gcc -DDEBUG

• Inserts header files to C source code file in response to

#include <stdio.h>
#include "A.h"

• Performs macro substitution
  • E.g. In response to #define CONST 5
  • All references to CONST in source will be replaced by 5
• No type checking or anything, just a direct textual replacement
• To examine the output gcc pre-processor $ gcc –E file.c –o output.c

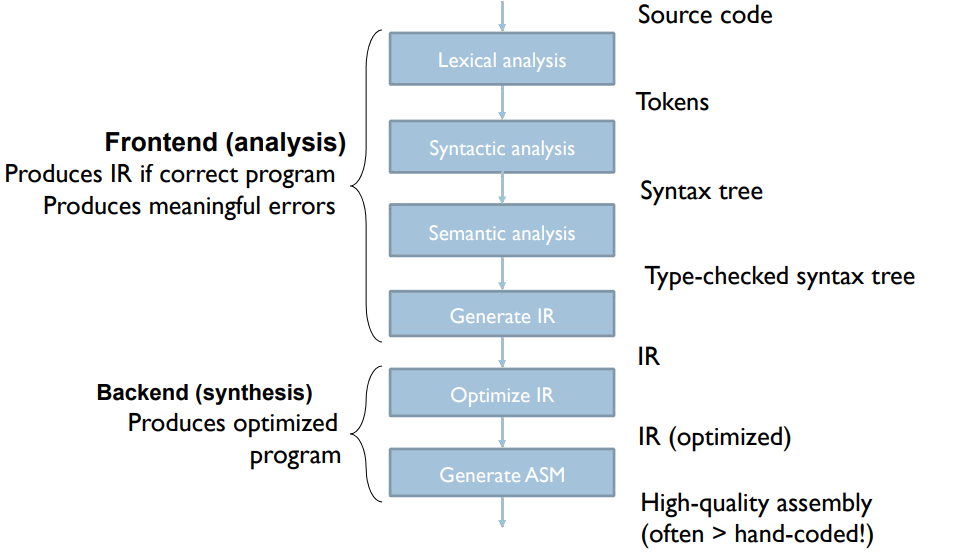

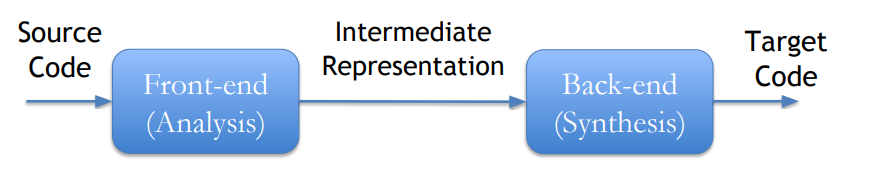

Anatomy of a Modern Compiler

Frontend (analysis)

• Read source program • Break it up into basic elements • Check correctness, report errors • Translate to generic intermediate representation (IR)

Back-end (synthesis)

• Optimize IR • Translate IR to ASM • Optimize ASM

Frontend Stages

• Lexical analysis (scanning): Source -> List of tokens • Syntactic analysis (parsing): Tokens -> Syntax tree • Semantic analysis (mainly, type checking)

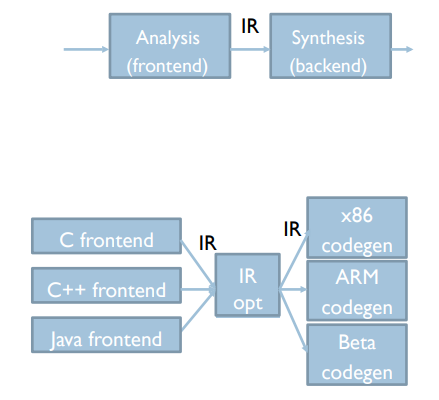

Intermediate Representation

• Internal compiler language that is: ○ Language-independent ○ Machine-independent ○ Easy to optimize • Why yet another language? ○ Assembly does not have enough info to optimize it well ○ Enables modularity and reuse

Data flow graph (DFG)

• Represents flow of data inside “basic block”
• Basic blocks
  • Code with one entry one exit
  • May have a branch at the end, not before
• Does not represent control.
• Describes the minimal ordering requirements on operations.
• Static Single Assignment is employed to ease optimizations

Static Single Assignment (SSA)

• If a variable is assigned more that once in the source code:
  • SSA keeps only the first assignment
  • The rest of the assignments are renamed to temporary variables

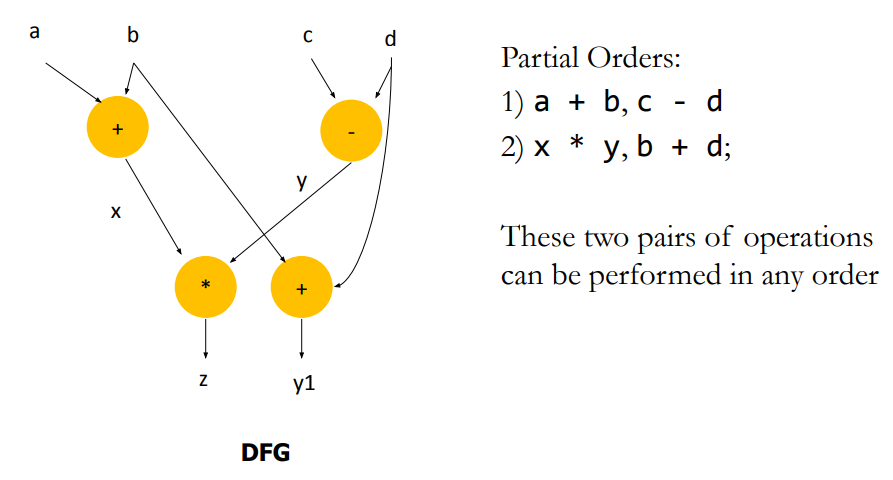

DFG and Partial Orders

Optimizations

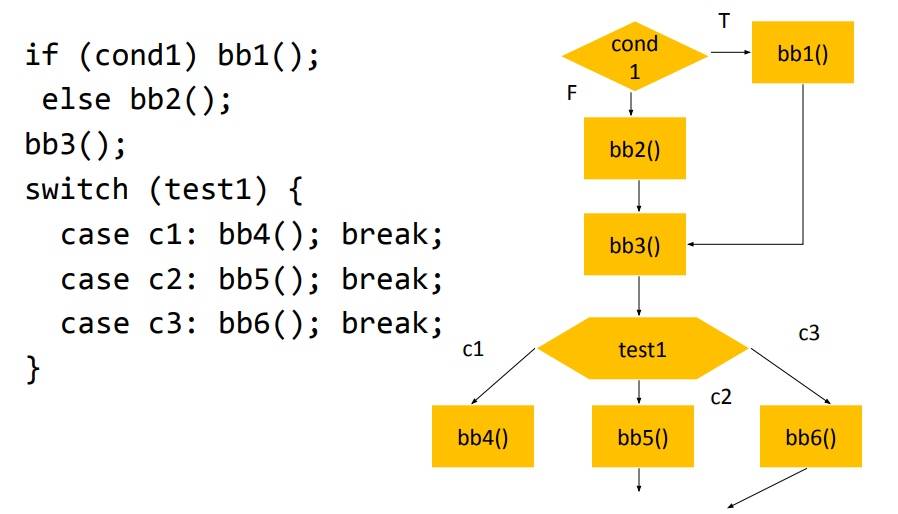

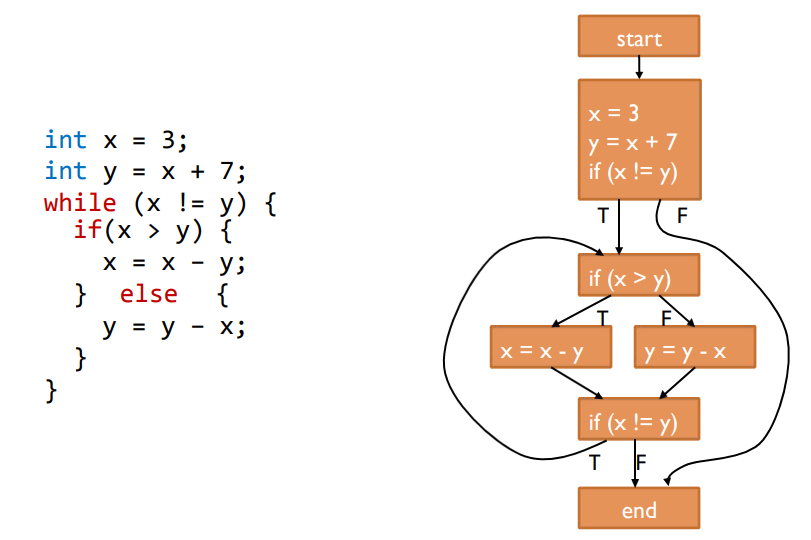

Control-Data Flow Graph (CDFG)

• Represents control and data flow
  • Nodes: basic blocks
  • Edges: branches between basic blocks

IR Optimization

• Machine independent optimizations
  • Code optimizations independent of the target architecture
  • e.g. dead code elimination, constant propagation, constant folding etc.
• Machine dependent optimizations
  • Specifically aim at target architecture
  • May not be applicable directly across different architectures
  • e.g. Instruction selection, register allocation etc.
• Perform a set of passes over the CFG
  • Each pass does a specific, simple task over the CFG
  • By repeating multiple simple passes on the CFG over and over, compilers achieve very complex optimizations
• Example optimizations:
  • Dead code elimination: Eliminate assignments to variables that are never used, or basic blocks that are never reached
  • Constant propagation: Identify variables that are constant, substitute the constant elsewhere
  • Constant folding: Compute and substitute constant expressions

Code Generation

• Translate optimized IR to assembly
• Register allocation: Map variable to registers
  • If #variables > #registers, map some to memory and load/store when needed
• Translate each assignment to instruction
  • Some assignments may require more than one instruction if ISA does not have operations
• Emit each basic block: labels, assignments and branches
• Lay out basic blocks, remove superfluous branches
• ISA and CPU specific optimization
  • E.g. reorder instructions if possible

Summary: Modern Compilers

Loop Transformations

• Why is it important
  • Programs spends lots of time in loops
• Goal
  • Reduce loop overhead
  • Increase opportunities for other optimizations
  • Improve pipeline and memory system performance

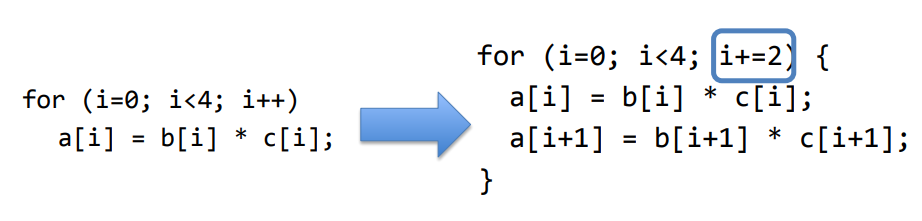

#1: Loop Unrolling

• Duplicates loop body ‘n’ times and adjust loop bounds
  • Reduces number of comparisons/branches to test loop exit • Branches are big performance bottleneck in hardware
  • Increases loop body size • Enables more optimizations • More register pressure

#2: Loop Fusion

• Combines two (or more) loops into one

• Pros:

  • May improve data locality
  • Reduces loop overhead
  • May enable better instruction scheduling

• Cons:

  • May hurt data locality
  • May hurt I-cache hit rate

#3: Loop Distribution/Fission

• Divides a loop into two (or more) loops

• Pros:

  • Enables optimizations: 2nd loop is parallel loop
  • Reduces register pressure

• Cons:

  • Increases loop overhead

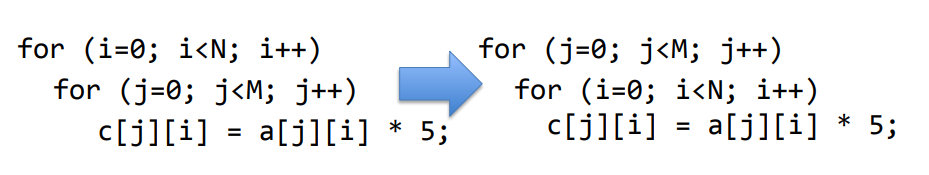

#4: Loop Interchange

• Switches the order of loops in a loop nest
• Can improve data locality and parallelism

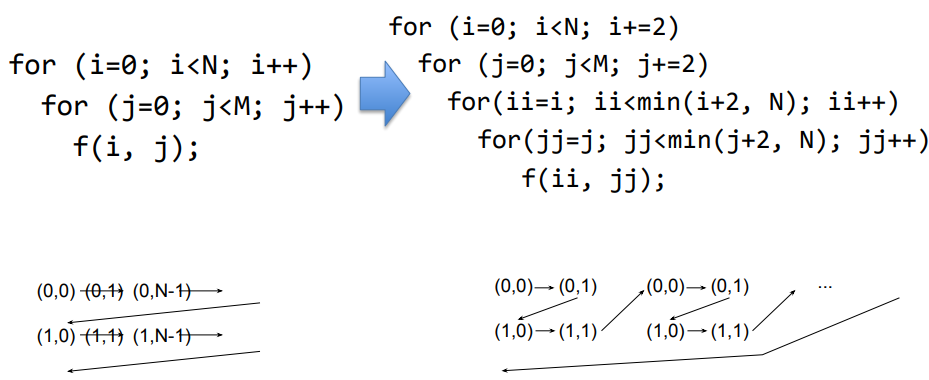

#5: Loop Tiling

• Breaks a loop into a set of nested loops
  • Each inner loop operates on a subset of data
• Changes memory access pattern: Can improve locality

Function Inlining and Register Allocation

Procedure/Function Inlining

• Replaces call with the body of the callee (called function)
• Programmer can ask compiler to inline a function
  • C provides inline keyword
• Compiler itself can inline a function if deemed beneficial

• Function calls can be costly
  • Direct costs: arguments and results passing, call/return (branch) instructions, stack frame maintenance etc
  • Indirect costs: breaks intra-procedural analysis to inter-procedural analysis (which is more complex)
• Inlining removes these costs
• Downside
  • Can increases code size
  • Can reduce instruction cache hit rate

Register Allocation

• Registers temporarily hold variables
• Aim: Allocate registers to variables such that memory accesses are minimized
  • Good register allocation is key to performance as memory accesses can be costly (imagine cache misses)
• Compilers analyze lifetime of variables for register allocation
• Programmers could hint which variables to keep in registers
  • C supports register keyword
  • Modern compilers just ignore it!
• Some variables always need to be in memory
  • volatile keyword provides this functionality
  • Still brought to a register for using the value

Register Allocation with Graph Coloring

• Edges between variable that are live at the same time
• Represent each register with a color
• Color the nodes with as few colors as possible
  • No edge must share a color
• NP-complete
  • Compilers use heuristics to reach a good solution

Instruction Selection

• IR code can be translated to a number instruction sequences depending types of instructions in ISA
• IR expressions are represented as graphs (CDFG)
  • Find the best template for expression
  • The template should minimize the chosen cost metric

Assembler and linker

• Generate machine instructions (binary) from assembly instructions (symbolic)
  • One to one translation (usually)
• Translate labels into addresses
• Handle pseudo-ops
• Two pass approach
  • First pass: Generate symbol table
  • Second pass: resolve labels and generate machine instructions

Symbol Table

• Generating symbol table:
  • Scan the file to collect labels and their addresses
• Addresses are generally relative to the first instructions in the file

Object File

• Output of assembler
• Several standards
  • ELF (Unix), ECOFF (Windows), Mach-O (OS X)
• Object file includes
  • Symbol table
  • Program code (.text segment)
  • Data (.data segment)
  • Information about relocatable parts
  • Debug data (references to source files)

Linker

• Takes multiple object files and libraries and generates one executable file
  • Combines all object file segments (text, data)
  • Determines start address for all modules
  • Combines all symbol tables
  • Resolves all symbols
• Transforms relative address to absolute addresses
• Produces an error if cannot find a label/symbol in merged symbol table

Dynamic Linking

• Most operating systems can link modules at load time
  • e.g. shared libraries (.so on linux platforms)
  • Saves storage space
