Processor and Memory

• Chapter 3 (3.5 - 3.6)
• Chapter 4 (4.4, 4.7)

Processor Architecture

• Organization of a processor core with different components and interconnection between them
• Two main architecture types based on memory organization
  • Von Neumann: Shared instruction and data memory
• Typically used in general purpose computers
  • Harvard: Separate memories for instruction and data
• Used mostly in embedded computers

Main processor functions

• Fetch
  • Get instruction from (instruction) memory
• Decode
  • What operation needs to be performed
  • Where the operands are
• Execute
  • Read operands
  • Perform required operation
  • Store result

Single cycle processor design

• All functions (fetch, decode, execute …) are performed in one cycle
• Cycles needs to be long enough to cover all functions

Analyzing single cycle design

• Inefficient use of hardware resources
  • Only one stage is active at any time

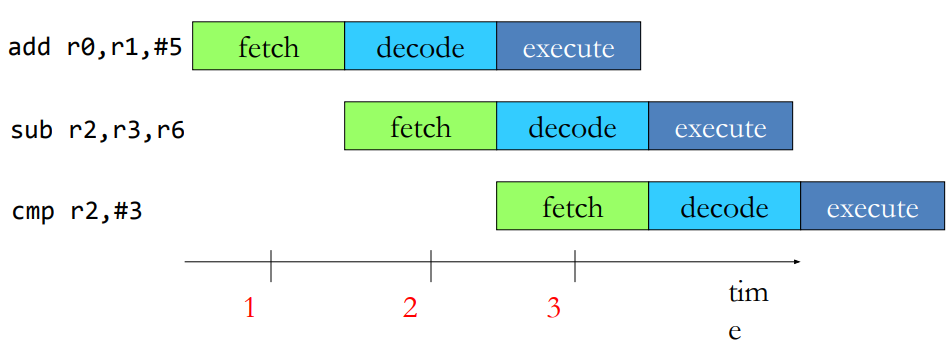

Pipelined processor design

• Breaks instruction execution in different phases
  • Example phases: fetch, decode, execute
• Executes only a phase (not whole instruction) in one cycle
  • Each phase does less work → Shorter clock cycle (higher frequency)
• Key idea: Overlap execution of different phase of multiple instructions
• Overlapping improves hardware utilization and performance

Processor Performance Analysis

Performance: single cycle vs pipeline

• Execution time = Instruction count * CPI * Cycle time
• Instruction count is same in both designs
• CPI is also same (1) in both designs
  • Overlapped execution leads to CPI of close to 1 in pipelined design (Slightly less in the beginning and at the end of execution)
• Cycle time in pipelined design is 1/3 of single cycle design

Pipeline design provides 3x performance (ideally) due to combination of overlapped execution and smaller cycle time

What limits pipeline performance?

• Dependencies may cause empty stages (stalls) in pipeline
  • Data dependencies: an instructions reads the result of a previous instruction
  • Control dependencies: instruction execution depends on the outcome of a branch instruction
  • Properties of applications, not of pipeline
• A hazard is a situation when a dependency leads to incorrect execution, if not handled properly.
  • Hazards are pipeline properties
• Pipeline needs to be paused to avoid hazards, resulting in idle pipeline stages and lower CPI and performance

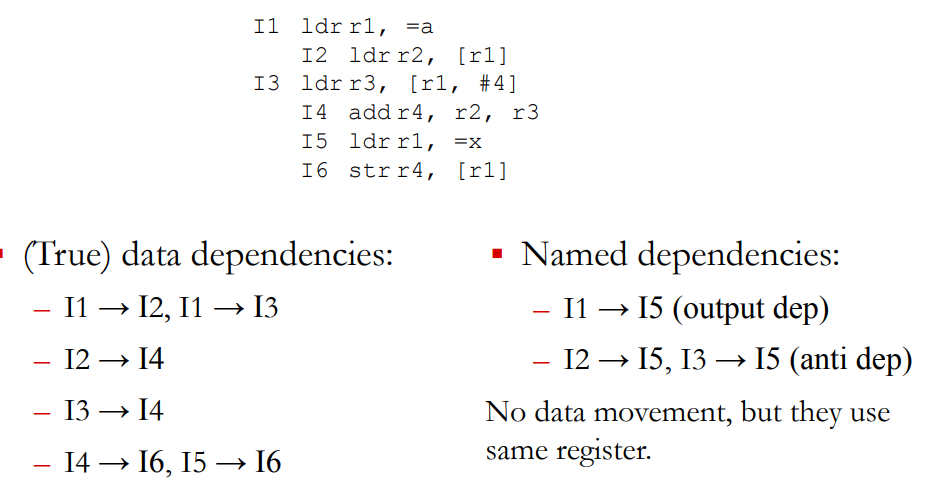

Data dependencies

• An instructions reads the result of a previous instruction

Data dependence hazards in pipeline

• A dependence between two instruction can cause a bubble

Control dependence hazards in pipeline

• Pipeline needs to be flushed on wrong execution path detection (e.g. if-else)
  • Fetch starts from new PC provided by the branch instruction
  • Loss of two cycles, called branch penalty

Avoiding control hazards

• Branch delay slots: n instructions after the branch are always executed, regardless of branch outcome (2 instructions in our example)
  • Advantage: No hazard detection required, no flushing
  • Disadvantages:
• Difficult to find instruction that need to execute irrespective of branch outcome. Deeper pipelines might require up to 15 such instructions
• Needs to insert NOPs otherwise which is an intentional bubble
• Exposes the pipeline design to programmer/compiler 🡪 results in microarchitecture dependent code, not a good idea! Also leads to bugs
• Branch Prediction
  • Predict the direction of branches for fetching next instructions. Need to flush only if the prediction was wrong.

Performance boosting techniques

• Out-of-order execution
  • Reorder instructions to minimize stalls
• Superscalar processors
  • Fetch, decode and execute multiple instructions per cycle
• Multithreaded processors
  • Execute multiple instructions streams in parallel
• Other techniques: Caching, Prefetching, Vector execution,…

Memory Technologies

Memory requirements

• Programmers wish for memory to be
  • Large
  • Fast
  • High bandwidth
• Unfortunately, wish not fulfillable by one kind of memory
  • Issues of cost and technical feasibility
• Solution: Build a memory hierarchy to approximate the “ideal” large and fast memory through a combination of different types of memories

Example memory technologies

*Used as "main memory"

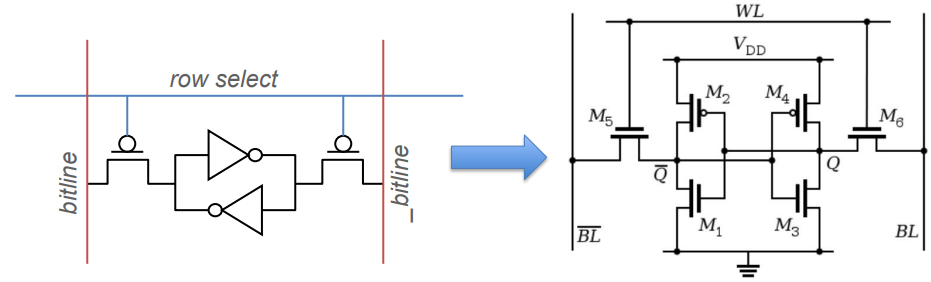

SRAM

• Static Random Access Memory (SRAM)
• Two cross-coupled inverters store a single bit
  • Feedback path enables the stored value to persist in the cell
  • 4 transistors for storage
  • 2 transistors to access the cell

DRAM

• Dynamic Random Access Memory (DRAM)
• One capacitor stores a single bit
  • Whether the capacitor is charge or discharged indicates storage of 1 or 0 value
  • 1 capacitor for storage
  • 1 access transistor
• Capacitor leaks through RC path
  • DRAM cell loses charge over time
  • Needs to be refreshed periodically

Memory bank organization and operation

DRAM read access

• Decode row address and enable “row select” signal
• Selected row drives bit lines. Entire row is read
• Amplify row data
• Decode column address and select subset of data. It is the output data

DRAM vs SRAM

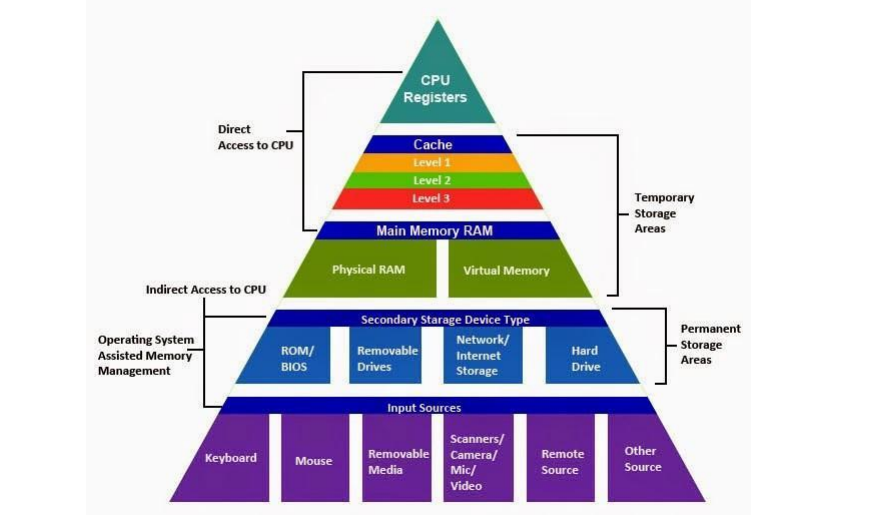

Memory Hierarchy

Memory hierarchy idea

• Use a combination of memory kinds
  • Smaller amounts of expensive but fast memory closer to the processor
  • Larger amounts of cheaper but slower memory farther from the processor
• Not a new idea

Why is memory hierarchy effective?

• Temporal Locality:
  • A recently accessed memory location (instruction or data) is likely to be accessed again in the near future
• Spatial Locality:
  • Memory locations (instructions or data) close to a recently accessed location are likely to be accessed in the near future
• Why does locality exist in programs?
  • Instruction reuse: loops, functions
  • Data working sets: arrays, temporary variables, objects

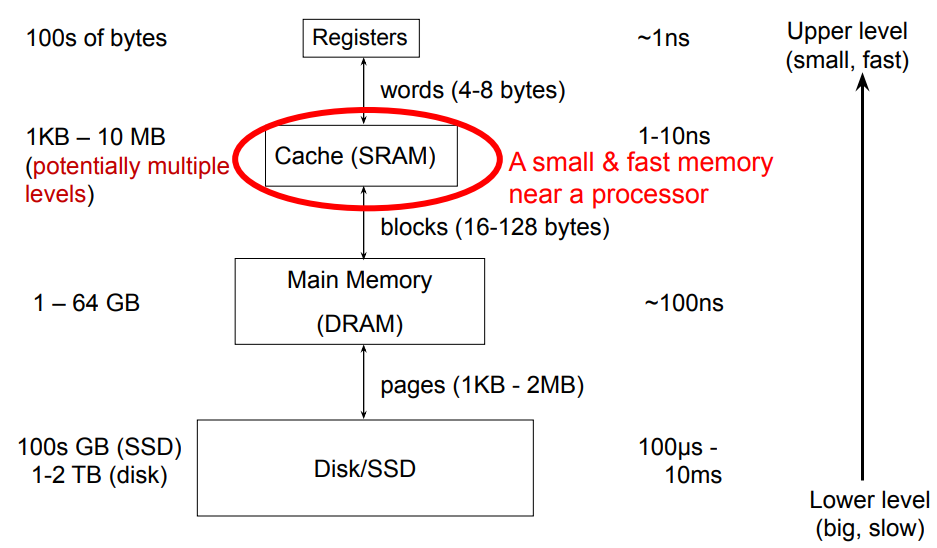

Memory hierarchy in modern processors

• Small, fast cache next to a processor backed up by larger & slower cache(s) and main memory give the impression of a single, large, fast memory
• Take advantage of Temporal Locality:
  • If access data from slower memory, move it to faster memory
• Take advantage of Spatial Locality:
  • If need to move a word from slower to faster memory, move adjacent words at same time

Cache Terminology

• Block (or line): the unit of data stored in the cache
  • Typically in the ranges of 32-128 bytes
• Hit: data is found in cache (this is what we want to happen)
  • Memory access completes quickly
• Miss: data not found in cache
  • Must continue to search in the next level of hierarchy (could be next level cache or main memory)
  • After data is eventually located, it is copied to the cache
• Hit rate (hit ratio): fraction of accesses that are hits at a given level of hierarchy
• Hit time: time required to access a level of hierarchy
• Miss rate (miss ratio): fraction of accesses that are miss at a given level of hierarchy (= 1 - hit rate)
• Miss penalty: time required to fetch a block into some level from the next level down the hierarchy
• Cache size: refers only to the size of data portion, not tags and valid bits.

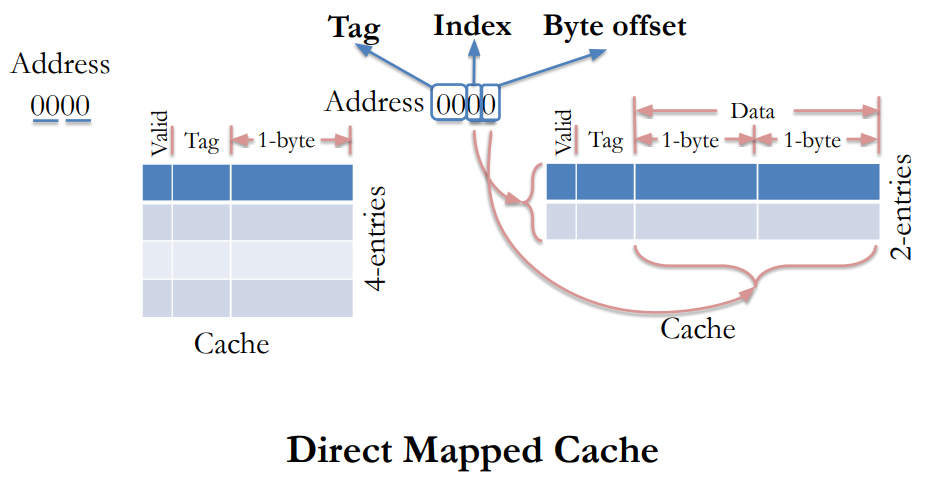

Direct Mapped Caches

Accessing cache

• Data are identified in (main) memory by their full 32-bit address
• Problem: how to map a 32-bit address to a much smaller memory, such as a cache?

How to know which of these memory locations is currently mapped to the selected cache line?

Practice Proble on Direct Mapped Caches

Given a 4 KB direct-mapped cache with 8-byte blocks and 32-bit addresses. Question: How many tag, index, and offset bits does the address decompose into? Answer:

• 8-byte block: requires a 3-bit offset
• 4 KB / 8 bytes per block = 512 blocks (Requires a 9-bit index)
• Tag: 32 – 9 – 3 = 20 bits
