Lecture 4, part 1: Processes

Previous lecture Next lecture

Exam

Details about the process abstraction and its use in Unix

Important questions:

• What is the definition of a process and what is the difference to a program?
• What is a process hierarchy and why does it exist?
  • Parent/child processes, orphans, zombies and PID 1 (init)
• How can processes perform I/O, how can it be (re)configured?
  • Relation of the I/O concept to the Unix philosophy?
• How do processes interact with the OS: system calls
• How can processes be created/controlled/terminated?
  • Which Unix syscalls are used for process management?
  • Pros and cons of the Unix fork/exec model
• Optimizations for process creation in Unix: copy-on-write
• What are details of the extended process state model?

Review: processes..

• are "programs in execution"
  • dynamic, not static
  • alternating sequences of "CPU bursts" and "I/O bursts"
• require resources of the computer
• have a state
  • READY, RUNNING, BLOCKED
• are conceptionally considered to be independent, concurrent control flows
• are under the control of the operating system
  • resource allocation and revocation

Unix (Thompson and Ritche 1968)

• A system with a long (hi)story
• Origin: AT&T Bell Labs
  • Developed as an alternative to "Multics"
• Version 1 created on a PDP 7
  • written in assembler
  • 8192 18 bit words of memory
• Version 3 implemented in C on a PDP11
  • C was created to enable OS development in a high-level language

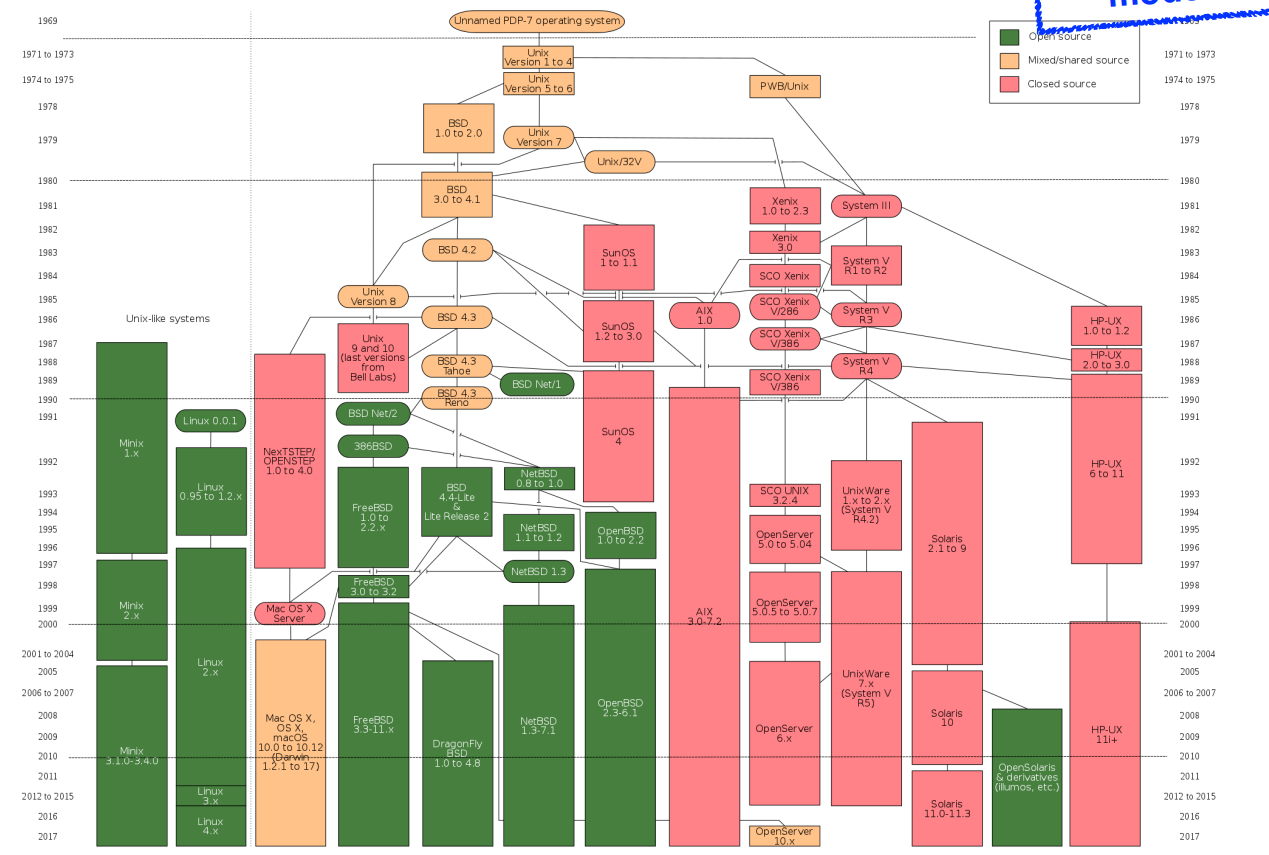

Unix variants

Unix processes

• Are the primary way to structure activities
  • Application as well as system processes
• Can create new processes in a fast and easy way
  • Parent process -> child process
• Form a process hierarchy

Unix shells

• A "shell" around the operating system "core"
• Text based user interface to start commands (Unix programs)
  • Commands can be located anywhere on the file system
  • Shell searches in directories given in the $PATH environment variable
• Shell prompt example: me@unix:~>which vim
• Every executed command is a separate child process
• Typically, the shell blocks (waits) until the last command has terminated
• It is possible to suspend, continue and terminate commands (job control) and to have commands executing in the background

Unix shells: job control

Standard I/O channels

• Usually connected to the terminal in which the shell runs that started the process
  • Standard input (stdin): read user input (keyboard)
  • Standard ouput (stdout): text output of the process (terminal window)
  • Standard error (stderr): separate channel for error messages (usually also connected to the terminal)
• Almost all Unix commands also accept files as input or output channels (instead of the terminal)
• Shells provide a simple syntax to redirect the standard I/O channels

Redirecting standard I/O

• > redirects standard output
• < redirects standard input
• | (pipe) symbol tells the shell to connect the standard output of the left process to the standard input of the right process

The Unix philosophy

• Doug Mcllroy, the inventor of Unix pipes, summarized the Unix philosophy as follows:

  This is the Unix Philosophy:
  Write programs that do one thing and do it well.
  Write programs to work together.
  Write programs to handle text streams,
  because that is a universal interface.


This is commonly expressed in a shorter way: "Do one thing, do it well."

Lecture 4, part 2: Processes

Process-OS interaction in Unix (1)

• How does an application program request a service from the operating system?
• From the point of view of the application, calling an operating system service looks like a regular function call, e.g.: pid = fork();
• However, arbitrarily calling code inside the OS kernel is dangerous:
  • No checking of permission to execute a function
  • No checking for correct parameters
    • Security nightmare!
• The transition from code ecevuting in an application to code running in the kernel needs to be protected!

Process-OS interaction in Unix (2)

• Many CPUs provide several execution modes:
  • "user mode": only restricted functionality is allowed
  • "kernel" or "supervisor mode": full access to all hardware resources
• Special machine instructions are provided to transistion from user to kernel mode:
  • int 0x80 (intel x86), syscall/sysenter (intel/AMD64)
  • trap (Motorola 68k), SVC (ARM), ECALL (RISC-V)
• Executing such an instruction causes the CPU to change its current execution mode to kernel mode and jump to an address predetermined by the processor hardware: system call

Process-OS interaction in Unix (3)

• Applications can execute a syscall instruction directly, but
  • This stops working when the syscall interface changes
• In most modern systems, the C library (libc) provides stubs (adapter functions) that call the actual syscall
  • The stub function is a regular function linked to the application

Unix process control: syscalls

A first overview of process related system calls (syscalls)

Read Unix manual pages with man <num> <command>

Unix processes in detail: fork()

System call: pid_t fork(void)

• Duplicates the calling process (the standard way to create new processes in Unix!)
• The child process inherits..
  • Address space (code, data, bss, stack segments)
  • User and group ID
  • Standard I/O channels
  • Process group, signal table
  • Open files, current working directory
• Not copied are the following:
  • Process ID (PID), parent process ID (PPID)
  • Pending signals, accounting data, ..
• One process calls fork, but two processes return 🤔

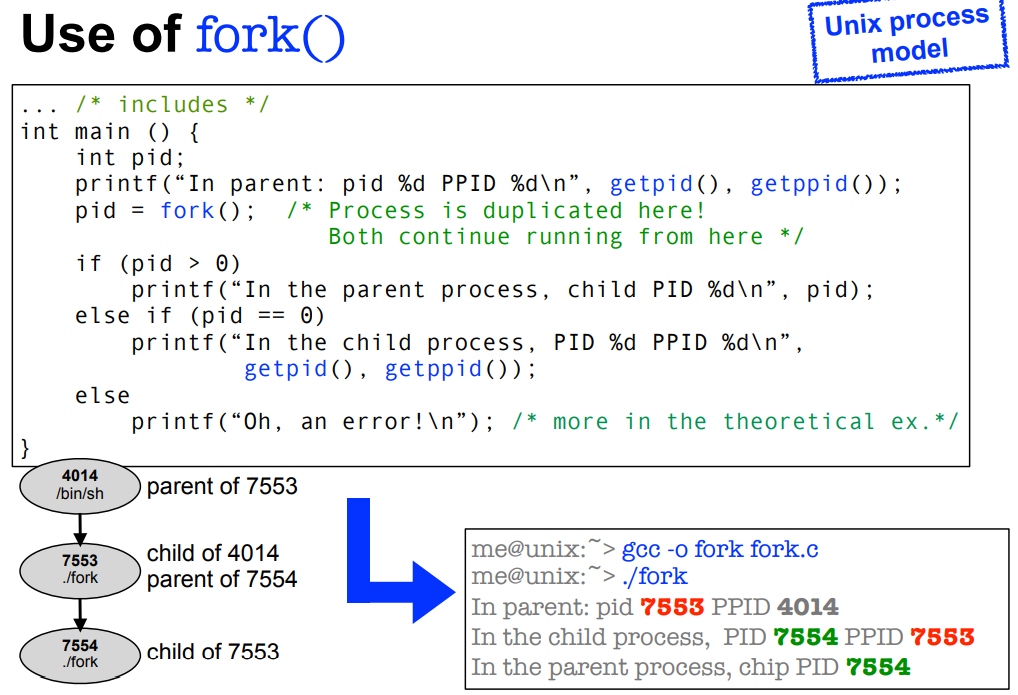

Use of fork()

Discussion: fast process creation

• Copying the address space takes a lot of time
  • Especially if the program immediately calls exec..() afterwards -> complete waste of time!
• Historice solution: vfork
  • The parent process is suspended until the child process calls exec..() or terminates using _exit()
  • The child simply uses code and data of its parent (without copying!)
    • The child process must not change any data
    • Sometimes not so simple: e.g., don't call exit(), but _exit()!
• Modern solution: copy on write
  • Parent and child process share the same code and data segments using the memory management unit (MMU)
  • A segment is copied onlu if the child process changes any data
  • This is not the case when exec..() is called directly after fork()
  • fork() using copy on write is almost as fast as vfork()

Unix processes in detail: _exit()

System call: void wait(int)

• Terminates the calling process and passes an integer argument as "exit status" to the parent process
• Releases the resources allocated by the process
  • Open files, used memory, ..
• Sends a signal SIGCHLD to its parent process
• There is also a library function exit which additionally releases resources used by the C library
  • Among other things, the outputs (flushes) all data still stored in output buffers!
• Normal processes should use exit, not _exit

Discussion: orphaned process

• A Unix process is orphaned when its parent process terminates
• What happens to our process hierarchy?
  • The init process (always pid 1) adopts all orphaned processes.

Unix processes in detail: wait()

System call: pid_t wait(int *)

• Blocks the calling process until one of its child processes terminates
• The return value is the terminated child's PID
• Using the int * parameter, the caller is passed the child's "exit status" (and more)
• wait returns immediately if all child processes are already terminated

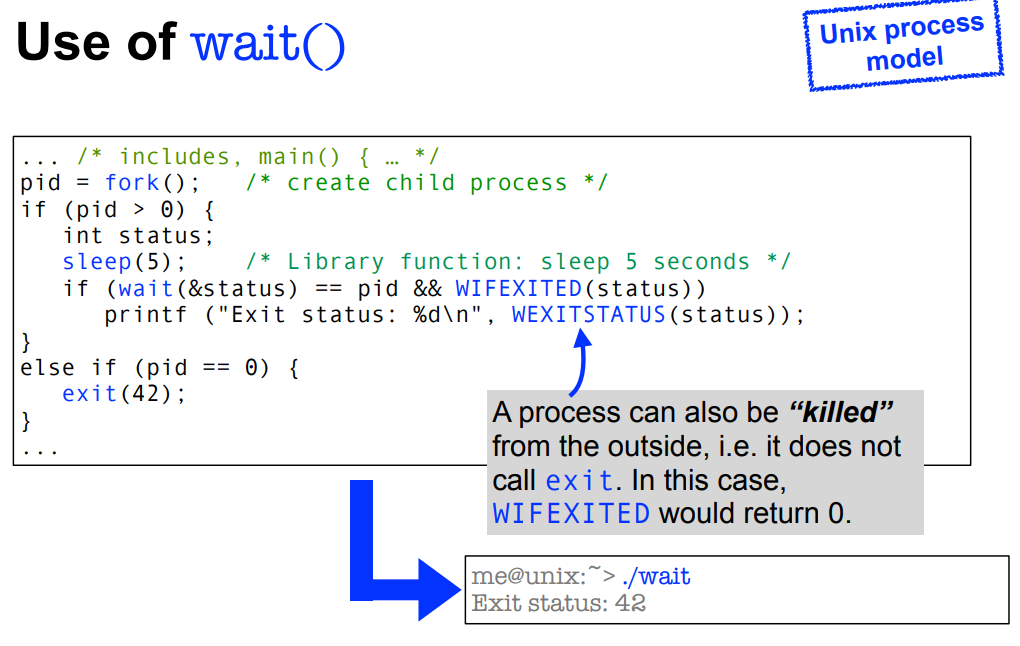

Use of wait()

Discussion: zombies

• A terminated process is called a "zombie" until its exit status is requested using wait
• The resources allocated to such processes can be released, but the OS project management still needs to know about them
• Especially the exit status has to be saved
• Zombies are annoted by ps by <defunct>

Unix processes in detail: execve()

System call: int execve(const char *command, const char *args[], const char *encp[])

• Loads and starts the command passed in the "command" parameter
• Only returns in case of an error
  • e.g. command does not exits, no access, etc.
• Replaced the complete address space of the calling process
  • but is remains the same process!
  • Sam PID, PPID, open files, etc.
• The C library provides some comfortable support functions that internally call execve: execl, execv, execlp, execvp, ..

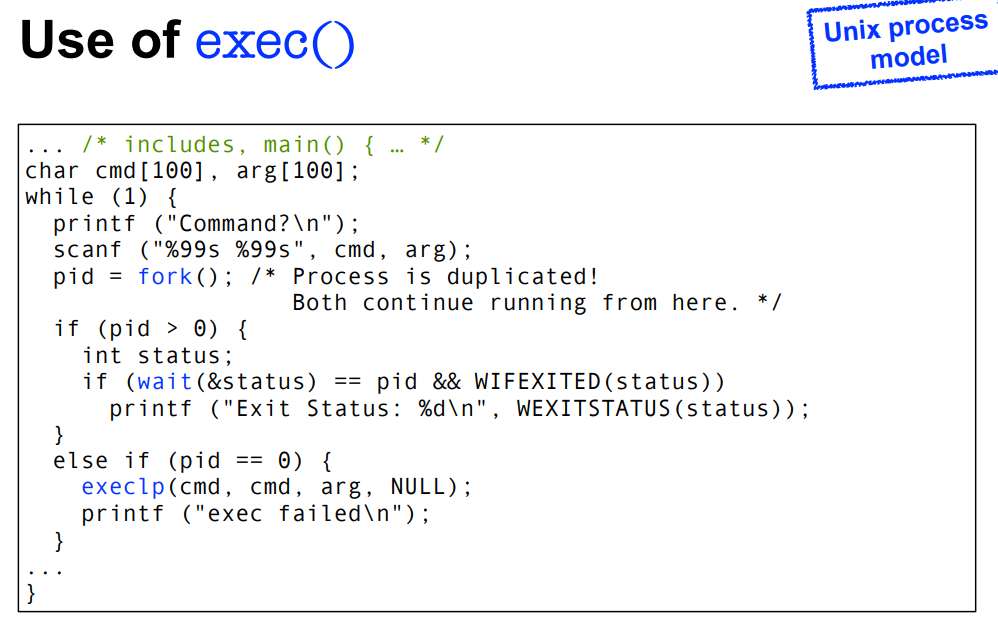

Use of exec()

Discussion: why no forkexec()?

• The parent process has more control if we separate the calls to fork and execve:
  • Execute operations in the context of the child process
  • Full access to the parent processes data
• Unix shells use this feature to e.g.
  • redirect the standard I/O channels
  • configure pipes

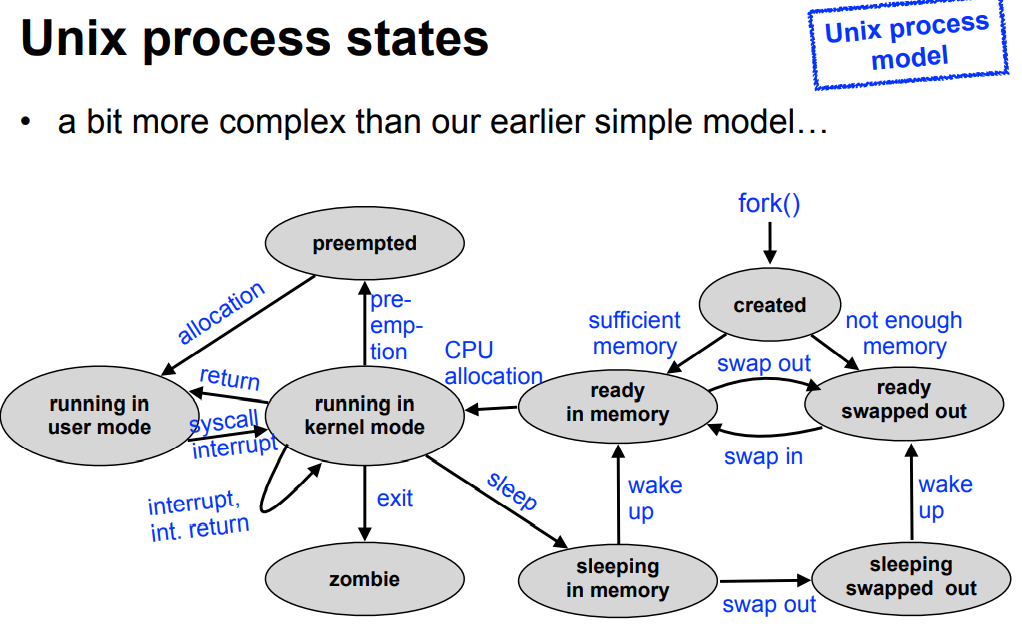

Unix process states

Conclusion

• Process management is an important part of any OS
  • Unix has a process hierarchy
  • The init process (PID 1) is the root of the hierarchy
• Special approach taken in Unix: separate process creation (fork) and program execution (exec)!
  • Used by the Unix shell to implement I/O redirection
• Small set of basic system calls for process management
  • Hardware support required to make fork efficient
• Real-world process states are quite complex
