Lecture 15: File systems

Previous lecture Next lecture

Exam

Files as an abstraction of disk space and their management

Important questions:

• What is the file abstraction and why is it useful?
• What are the syscalls/libc functions in Unix to handle files?
• What is a virtual file system and how does this work?
  • What is mounting/unmounting, what is their effect on the directory tree of a Unix system?
• Which methods exist to map a file to disk blocks?
  • Describe problems of the approaches/pros/cons
• Which methods exist to manage free space?
• What are the directory and inode structures for typical file systems?
  • Unix System V, BSD FFS, Linux ext2/3/4

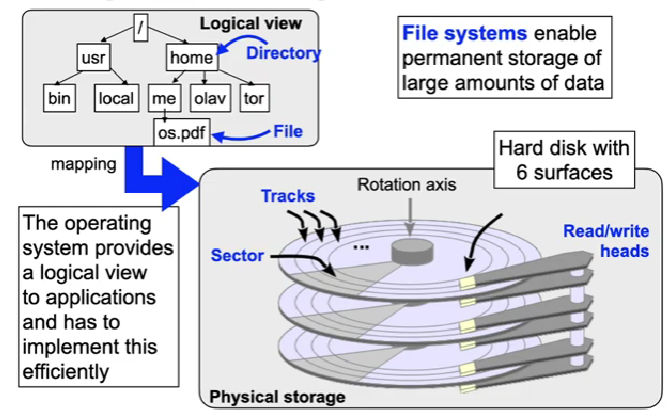

Background storage

The file abstraction

• Unix principle: "everything is a file"
  • more precisely: every resource in the system can be accessed using a name mapped into a directory hierarchy
  • access to the resource takes place using the standard Unix system calls for file access
  • file permissions are used to control access to the resource
• Examples:
  • regular files and directories
  • special files for devices, symbolic links, named pipes
  • virtual files for process and system information
• Not completely consistent in Unix, but e.g. in the Plan 9 OS:
  • network connections and protocols
  • access to the graphics frame buffer

Accessing files

• Files are identified by per process file descriptors in the OS
  • positive integer number, can be reassigned
• The Unix file access API consists of four simple system calls:
• int open(const char *path, int oflag, ...);
  • Attempts to open the file with the given path name and options for accessing (read only, read/write etc.)
  • Returns a file descriptor (fd) refering to the file on success
• ssize_t read(int fd, void *buf, size_t nbyte);
• ssize_t write(int fd, const void *buf, size_t nbyte);
  • Read (write) nbyte bytes from (to) file fd into (from) the memory starting at user space memory address buf
• int close(int fildes);
  • Closes the file: flushes buffers and invalidates file descriptor

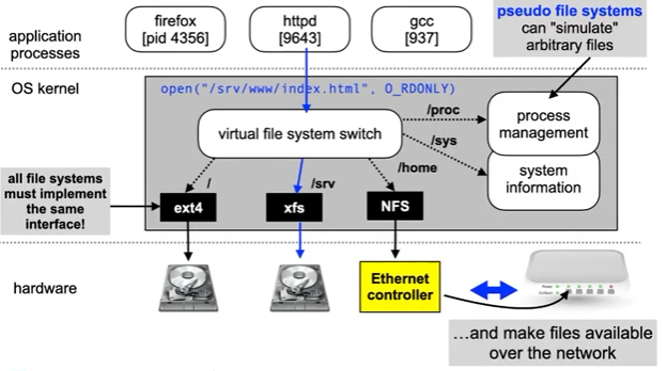

The Unix virtual file system (VFS) switch

• System-wide name space for files

Virtual file system: mounting

System Call:

int mount(const char *source, const char
  *target, const char *filesystemtype,
  unsigned long mountflags, const void *data);

Attaches ("mounts") a file system to the given directory in the global directory tree System Call:

int umount(const char *target);

Removes the attachment. Note: umount, not unmount! Using both system calls requires system administrator privileges! When the system is booted, all filesystems listed in /etc/fstab are automatically mounted.

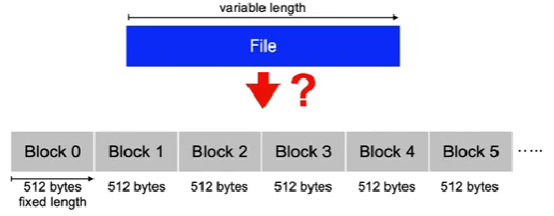

File storage

• In most cases, files require multiple blocks of storage on disk
  • We simply view a disk as a large array of blocks
    • Each block has an identical small size, e.g. 512 bytes
    • This is already an abstraction from the heads, tracks and sectors of a real disk drive
  • Which of the blocks are used to store a file?

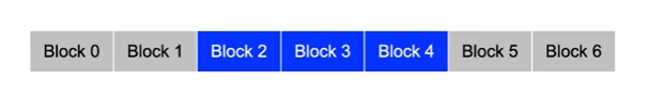

Contigous storage

• A file is stored in blocks with increasing block numbers
  • requires to store information about the first block and the number of subsequent blocks, e.g. Start: block 2, length: 3

• Advantage:
  • Access to all blocks with minimal delay due to disk arm positioning
  • Fast direct access to a given file offset position
  • Used for read-only file systems, e.g. CD-ROM/DVD

Contiguous storage problems

• Finding free space on the disk
  • required: sufficiently large set of contiguous free disk blocks
• Fragmentation
  • free blocks that cannot be used since they are too small for the given file
  • cf. main memory management
• The size of new files is usually not known in advance
  • Extending (growing the size of) a file is problematic: what if the following blocks are already allocated?
  • Requires copying of data if insufficient free following blocks are available

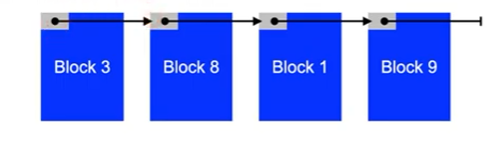

Linked list storage

• Blocks of a file are linked

• e.g. used on Commodore disk drives (C64 etc.)
  • block size 256 bytes
  • first two bytes: track and sector nr. of following block
  • if track number = 0 ➛ final block
  • 254 byte payload data
• Files can be extended and shrunk

Linked list storage problems

• Available storage is reduced by amount of memory used for pointers
  • Problematic when using paging: a page would always require parts of two disk blocks
• Error prone
• a file cannot be completely restored if the pointer information contains errors
• Direct access to arbitrary file positions is difficult
• Requires frequent positioning of the disk head when the data blocks are spread over the disk

Linked list storage: FAT

• Links are stored in separate disk blocks
  • FAT: file allocation table (first used in MS-DOS)

• Advantages:
  • complete content of data block is usable
  • redundant storage of the FAT is possible
    • useful in case of an error

Linked list storage problems (2)

• Additional loading of at least one block required
  • it is possible to cache the FAT to increase efficiency
• Unused information is loaded
  • FAT contains links for all files
• Search overhead for the data block containing information at a given offset inside a file
• Frequent positioning of the disk head when data blocks are scattered over the disk

Discussion: chunks/extents/clusters

• Variation
  • Split a file into sequences of blocks stored contiguously (called chunk, extent or cluster)
  • Reduces the number of positioning actions
  • Improves the speed to search for a block linear
    • depending on the chunk size
• Problems:
  • additional information required for managing chunks
  • fragmentation
    • fixed size: inside of a sequence (internal fragmentation)
    • variable size: outside of the sequences (external fragm.)
• Is used in practice, but does not have significant advantages

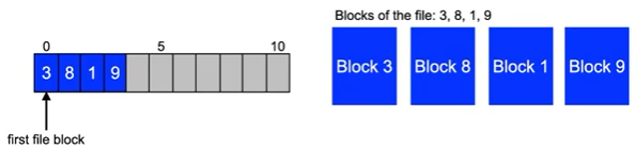

Indexed storage

• A special disk block contains block numbers of the data blocks of a file

• Problem
  • Fixed number of blocks that can be referenced in the index block
    • Fragmentation for small files
    • Extensions required for large files

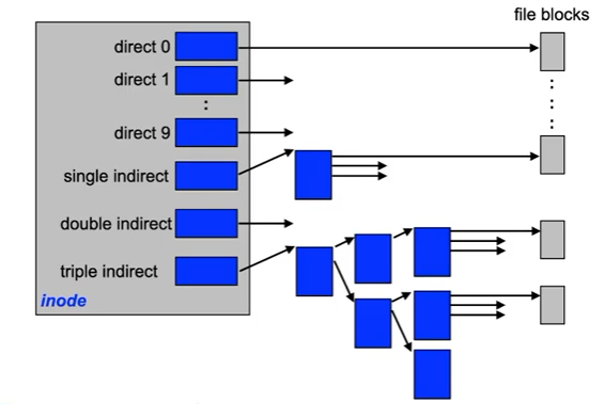

Indexed storage: Unix inodes

Indexed storage: discussion

• Use of multiple indexing levels
  • inodes require a block on the disk in any case (fragmentation is not a problem for small files)
  • multiple levels of indexing enable the addressing of large

files

• Disadvantage:
  • multiple blocks have to be loaded (only for large files)

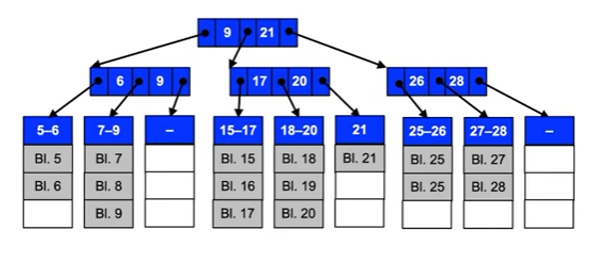

Tree sequential storage

• Used in databases to efficiently find records using a search key
  • Key space can be sparsely populated
• Can also be used to find chunks of files with a certain file offset, e.g. in NTFS, btrfs, IBM JFS2, Apple HFS+ (B+ tree)

Free space management

Similar to free main memory management

• Bit vectors indicate for each block if it is used or not
• Linked Lists represent free blocks
  • linking information can be stored in the free blocks
  • Optimization: information on contiguous block is not stored separately but in one single piece

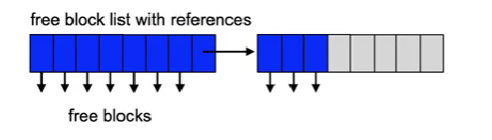

  • Optimization: one free block contains many block numbers of additional free blocks and possibly also the block number of an additional block containing the numbers of free blocks
• Tree sequential storage of free block sequences
  • Enables faster search for a free sequence of blocks of a given size
  • Used e.g. in the SGI XFS file system

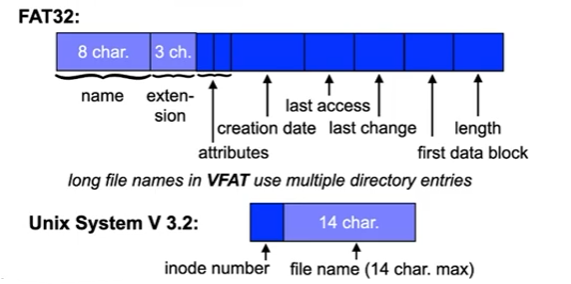

Directory management: lists

• Entries of identical length stored one after the other in a list, e.g.

• Problems:
  • Linear search for a given entry required
  • When sorting the list: fast search, insertion overhead

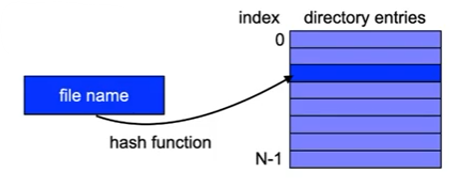

Using hash functions

• Function maps file name to index in directory list
• Enables faster access to the entry
• no linear search required
• Simple (but bad…) example: ( ∑ character values ) mod N

• Problems:
  • Collisions (multiple file names mapped to the same entry)
  • Adaptation of the list size required if list is full

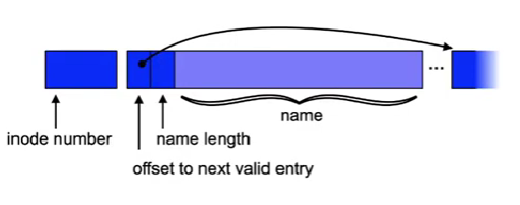

List elements with variable length

• Example: used in 4.2 BSD, System V Rel. 4, etc.

• Problems:
  • management of free entries in the list
  • fragmentation (need for compaction etc.)

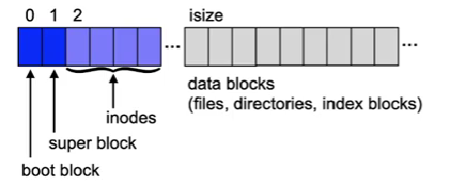

Unix example: System V file system

• Block organization

• Boot block contains information used to load the OS
• Superblock contains management data for a file system:
  • number of blocks and inodes
  • number and list of free blocks and inodes
  • attributes (e.g. flag indicating the file system was modified)

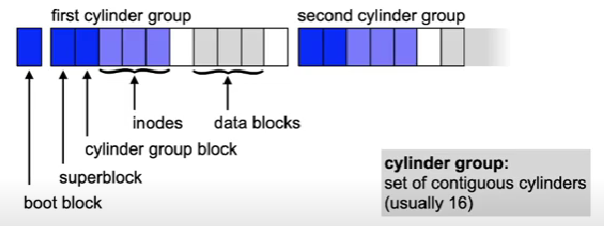

Unix example: Berkeley Fast File System

• Block organization (used from 4.2 BSD Unix onwards)

• Copy of the superblock is stored in every cylinder group
• One file is stored inside a single cylinder group if possible
• Directories are distributed, files of a directory are stored together
• Advantage: reduced positioning time

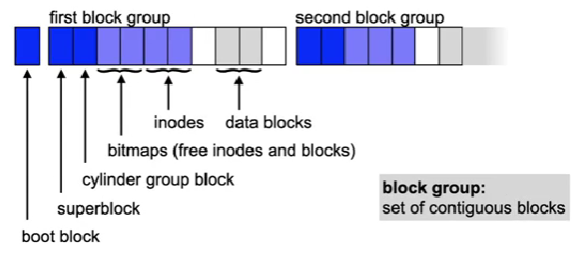

Unix example: Linux ext2/3/4 file system

• Block organization

• Similar layout to BSD FFS
• Block groups are independent of cylinders

Conclusion

File systems are an operating system abstraction

• Logically related information is represented and stored as a file
• Often uses a hierarchical directory structure to organize data ... are influenced by the hardware
• Minimization of positioning times for disks
• Wear levelling for Flash memories ... are influenced by the application profile
• Block size
  • too small → management data structures can lead to performance loss
  • too big → fragmentation wastes disk space
• Structure of directories
  • no hash function → long search
  • using a hash function → more administrative overhead
