Lecture 5: Threads

Previous lecture Next lecture

Exam

Threads as a lightweight abstraction and process alternative

Important questions:

• What is the overhead of Unix processes and their creation?
• What are the differences between address spaces for processes and threads?
• What are the thread models in Unix and Windows?
• What are fibers (user-level threads)?
  • Can you discuss pros and cons of threads vs. fibers?
• Cooperative multithreading
  • Can you describe the ideas behind Duff’s device and protothreads? (you don’t have to know the details of their implementations)

Lightweight processes - threads

• With processes, there is a 1:1 relation between control flow and address space
  • Even for forked processes due to copy-on-write
• Closely cooperating threads can share an address space
  • code + data + bss + heap, but not the stack!
  • Why not the stack?
    • Each thread has an independent flow of control
    • Accordingly, it required an independent call hierarchy, local variables etc.
• Advantages of threads:
  • Complex operations can be delegated to a lightweight helper thread
  • The parent thread can already wait for input while the helper thread is running -> reduced latency (response time)

Threads example

• Typical use case for threads: web server
• Programs consisting of independent control flows can immediately benefit from multiprocessor systems
• Fast context switch: no need to copy the address space
  • only switch the stack pointer - one CPU register
• Disadvantage of threads
  • Difficult to error-prone to program
  • Acces to shared data of threads requires coordinations
  • OS still has to schedule threads -> overhead

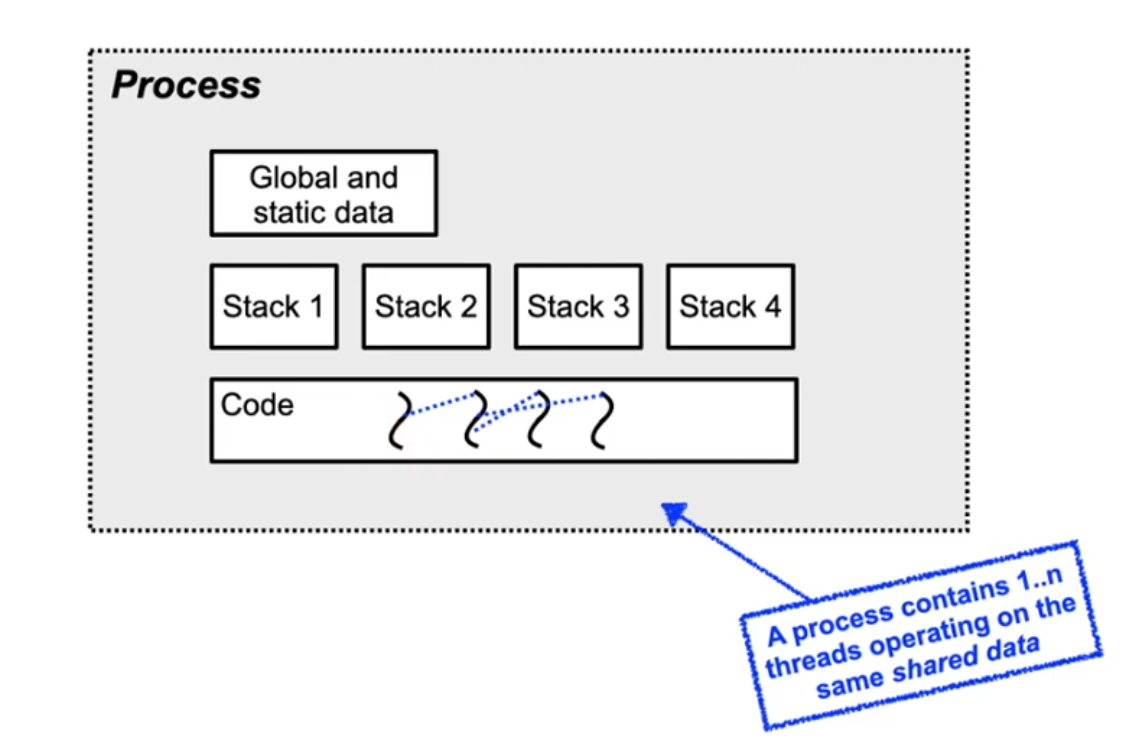

Threads in Windows

Threads in Windows (2)

• Process: provides environment and address space for threads
  • But has no execution context itself!
• A Win32 process always contains at least one thread
• Thread: unit executing code
  • Every thread has its own stack and CPU register set (escpecially the program counter)
  • The scheduler allocated compute time to the threads
• All threads are kernel level threads
  • User level threads (fibers) are possible, but unusual
• Stretegy: Keep the number of threads low
  • Use overlapping (asynchronous) I/O

Threads in Linux

• Linux implements POSIX threads using the pthreads library
• pthreads on Linux use a Linux-specific system call:

Linux system call: int __clone(in (*fn)(void*), void *stack, int flags, void *arg) Universal function, parameterized using the flags parameter:

• In Linux, all threads and processes are internally managed as tasks
  • The scheduler does not differentiate between those

Threads in Linux (2)

• Originally, threads of a process showed up as individual processes in the ps output
• More recent Linux systems (from kernel 2.4) still behave like this, but no longer show separate processes when using CLONE_THREAD

Fibers

• Also called user-level threads, green threads or featherweight processes
• Implemented on application level only (inside of a process)
  • The operating system doesn't know about fibers
  • Accordingly, scheduling affects the whole process
• Implemented using a library: user level thread package
• Advantages:
  • Extremely fast context switch: only exchange processor registers
  • No switch to kernel mode required to switch to different fiber
  • Every application can choose the fiber library best suited for it
• Disadvantages:
  • Blocking a single fiber leads to blocking the whole process (since the OS doesn't know about fibers)
  • No speed advantage from multiprocessor systems

Inspiration: Duff's device

• Problem: copying 16-bit unsigned integers ("short"s) from an array into a memory-mapped output register is slow (loop overhead):

send(short *to, *from, int count)
{
  do { /* count > 0 assumed */
    *to = *from++;
  } while (--count > 0);
}

• Optimization: unroll the loop
  • Execute multiple copy operations inside a single loop iteration
  • Reduces the loop overhead

send(short *to, *from, int count)
{
  register n = count / 8;
  do {
    *to = *from++;
    *to = *from++;
    *to = *from++;
    *to = *from++;
    *to = *from++;
    *to = *from++;
    *to = *from++;
    *to = *from++;
  } while (--n > 0);
}

• Problem with loop unrolling: count has to be a multiple of 8!
• Duff's solution: Introduce a jump into the loop body (using the C switch statement) to implement the first n mod 8 iterations!

send(short *to, *from, int count)
{
  register n = (count + 7) / 8;
  switch (count % 8) {
  case 0: do { *to = *from++;
  case 7: *to = *from++;
  case 6: *to = *from++;
  case 5: *to = *from++;
  case 4: *to = *from++;
  case 3: *to = *from++;
  case 2: *to = *from++;
  case 1: *to = *from++;
  } while (--n > 0);
} // Please do not write code like this..

Fibers example: Protothreads

• Stackless, lightweight threads, or coroutines
  • Provide a blocking context cheaply using minimal memory per protothread (on the order of single bytes)
  • Developed by Adam Dunkels (SICS)

// protothreads implementation: pt.h
define PT_BEGIN(pt) \
  switch(pt->lc) { case 0:

// … more macros defined …
define PT_WAIT_UNTIL(pt, c) \
  pt->lc = __LINE__; case __LINE__: \
  if(!(c)) return 0

include "pt.h"
// … protothreads example …
PT_THREAD(example(struct pt *pt)) {
  PT_BEGIN(pt);
  while (1) {
    if (initiate_io()) {
      timer_start(&timer);
      PT_WAIT_UNTIL(pt,
      io_completed() ||
      timer_expired(&timer));
      read_data();
    }
  }
}

Processes vs. threads. vs. fibers

Conclusion

• Traditional Unix process creation using fork is too heavyweight for some applications
  • e.g. a heavily used web server
• Alternatives exist
  • (kernel-level) threads
  • (user-level) fibers
• Each solution has its own advantages and drawbacks
  • Processes: copy and scheduling overhead
  • Threads: syncronization difficult to program
  • Fibers: no kernel management
    • blocking a fiber of a process blocks all fibers
• Linux har used the Unix process model exclusively for a long time
  • Windows (NT) didn't have to be compatible and implemented threads from the beginning
