Lecture 17: Virtual machines and microkernels

Previous lecture Next lecture

Exam

Operating system architectures and abstractions

Important questions:

• Can you define monolithic kernels, microkernels, hypervisors?
  • Differences between these, pros/cons?
• What problem did first-generation microkernels have?
  • How was this solved in second-generation microkernels?
  • What is an exokernel?
• What is virtualization, can you define its functionality?
  • What is a virtual machine monitor or hypervisor?
  • What are the differences between type 1 and 2 hypervisors?
  • Which hardware support was introduced to support virtualization?
  • What is paravirtualization and what are its pros/cons?
  • What is a hypercall?

Software architecture

• Definition:

The basic organization of a system, expressed through its components, their relations to each other and the environment as well as the principles which define the design and evolution of the system. Source: Gesellschaft für Informatik e.V. (https://gi.de/informatiklexikon/software-architektur)

• Intuitive view: "boxes and arrows"
• Does not describe the detailed design
• Focus on the relation between the requirements and the system that is to be constructed

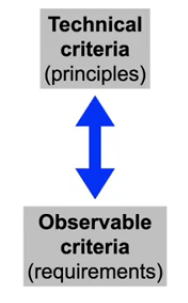

Different operating system architectures

• Isolation
• Interaction mechanisms
• Interrupt handling mechanisms
• Adaptability
  • Portability, modifications
• Extensibility
  • New functions and services
• Robustness
  • Behavior in the presence of errors
• Performance

Early operating systems

• The first computers had no operating system at all
  • Every program had to control all hardware on its own
  • Systems were running batch processing jobs controlled by an operator
    • Single tasking, punch card operated
  • Peripheral devices were rather simple
    • Tape drives, punch card readers/writers and printers connected over serial lines
• Replication of code to control devices in every application program
  • Waste of development and compile time as well as storage
  • Error prone

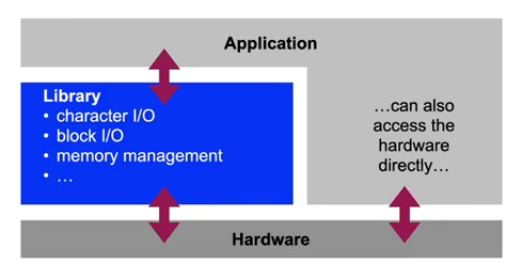

Library operating systems

• Collect frequently used functions to control devices in software libraries which can be used by all programs
  • Call system functions like regular program functions
• Library could remain in the computer’s main memory
  • Reduced program loading times, "Resident Monitor"
• Library functions were documented and tested
  • Reduced development overhead for application programmers
• Errors could be fixed centrally
  • Improved reliability

Library operating systems

Library OS: Evaluation

• Isolation
  • Ideal – single tasking system – but high time overhead to switch tasks
• Interaction mechanisms
  • Direct (function calls)
• Interrupt handling mechanisms
  • Sometimes interrupts were not in use → polling
• Adaptability
  • Separate libraries for each hardware architecture, no standards
• Extensibility
  • Depends on the library structure: global structures, "spaghetti code"
• Robustness
  • Direct control of all hardware: errors → system halt
• Performance
  • Very high due to direct operations on the hardware without privilege mechanisms

Library OS: Discussion

• Expensive hardware could only be used "productive" for a small fraction of the time
  • High overhead to switch tasks
  • Waiting for I/O unnecessarily wastes time, since only one "process" runs on the system
• Results took a lot of time
  • Waiting queue, batch processing
• No interactivity
  • System run by an operator, no direct access to the hardware
  • Execution of a program could not be controlled at runtime

Monolithic systems

• Management system for computer hardware
  • Standardized accounting of system resources
• Complete control of hard- and software
  • Applications run under system control now
  • Systems with multiple processes are feasible now: multiprogramming
• Introduction of a privilege system
  • System mode and application mode
  • Distinction and switch between modes hardware-supported Direct hardware access only in system mode
• System functions called using special mechanisms (software traps)
  • Requires context switching and saving

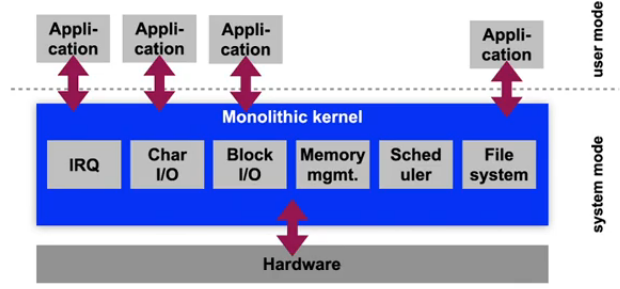

Monolithic operating systems

Monolithic systems: OS/360

• One of the first monolithic systems: IBM OS/360, 1966
• Objective: common batch processing OS for all IBM mainframes
  • Performance and memory differ by several orders of magnitude
• System available in different configurations:
  • PCP (primary control program): single process, small systems
  • MFT (multiprogramming with fixed number of tasks): mid-scale systems (256 kB RAM!), fixed partitioning of memory between processes, fixed number of tasks
  • MVT (multiprogramming with variable number of tasks): high end systems, swapping, optional time sharing option (TSO) for interactive use
• Innovative properties:
  • Hierarchical file system
  • Processes can control sub-processes
  • MFT and MVT are compatible (API and ABI)

Monolithic systems: OS/360

• Problems in the domain of operating system development
  • Fred Brooks’ "The Mythical Man-Month" described the problems that occurred during the development of OS/360
  • Conceptual integrity
    • Separation of architecture and implementation was difficult. Developers love to exploit all technical capabilities of a system → reduces comprehensibility and developer productivity
  • "Second System Effect"
    • Developers wanted to fix all errors of the previous system and add all missing features → never finished
  • Dependencies between components of the system were too complex
    • Starting with a certain size of the code, errors are unavoidable!
• Developments in software technology were driven by developments in operating systems

Monolithic systems: Unix

• Unix was developed for systems with rather limited resources (AT&T Bell Labs)
  • Kernel size in 1979 (7th Edition Unix, PDP11): ca. 10,000 lines of code (straightforward, easy to handle!), compiled ca. 50 kB
  • Originally implemented by 2-3 developers
• Introduction of simple abstractions
  • Every object in the system can be represented as a file
  • Files are simple unformatted streams of bytes
  • Complex functionality can be realized by combining simple system programs (shell pipelines)
• New objective of system development: portability
  • Simple adaptability of the system to different hardware
  • Development of Unix in C – designed to be a domain specific language to develop operating systems

Monolithic systems: Unix

• Further development of Unix was not predictable
  • Systems with large address spaces (VAX, RISC systems)
  • The Unix kernel also grew in size (System III, System V, BSD) – without significant structural changes
  • Very complex subsystems were integrated along the way
    • TCP/IP was about as complex as the rest of the kernel
• Linux was modelled after the structure of System V Unix
• Impact in academia: "Open Source" policy of Bell Labs
  • Weaknesses of Unix lead to new research questions
  • However, many projects (e.g. Mach) tried to remain compatible to Unix

Monolithic systems: Evaluation

• Isolation
  • No isolation of components in kernel mode, only between application processes
• Interaction mechanisms
  • Direct function calls (in the kernel), Traps (application – kernel)
• Interrupt handling mechanisms
  • Direct handling of hardware interrupts by IRQ handlers
• Adaptability
  • Changes in one component influence other components
• Extensibility
  • Originally: recompilation required; today: kernel module system
• Robustness
  • Bad – an error in one component "kills" the complete system
• Performance
  • High – few copy operations required, since all kernel components use the same address space. System calls require a trap, however

Monolithic systems: Discussion

• Complex monolithic kernels are difficult to work with
  • Adding or changing functionality often involves more modules than the developer intended
• Shared address space
  • Security problems in one component (e.g. buffer overflows) compromise the complete system
  • Many components unnecessarily run in system mode
• Reduced number of options for synchronization
  • Often only a "Big Kernel Lock", i.e. only a single process, can run in kernel mode at a time, all others have to wait
  • This is especially bad for the performance of multiprocessor systems

Microkernel systems

• Objective: reduction of the Trusted Computing Base (TCB) size
  • Minimize functionality running in the privileged mode of the CPU
  • Isolate all other components against each other in non privileged mode
• Principle of least privilege
  • System functions are only allowed to have the privileges required to complete their task
• System calls and communication between processes using message passing (IPC – inter process communication)
• Reduced functionality in the microkernel
  • Lower code size (10,000 lines of C++ code in L4 vs. 5.5 million lines of C in Linux without device drivers)
  • Allows for formal verification of the microkernel (seL4)

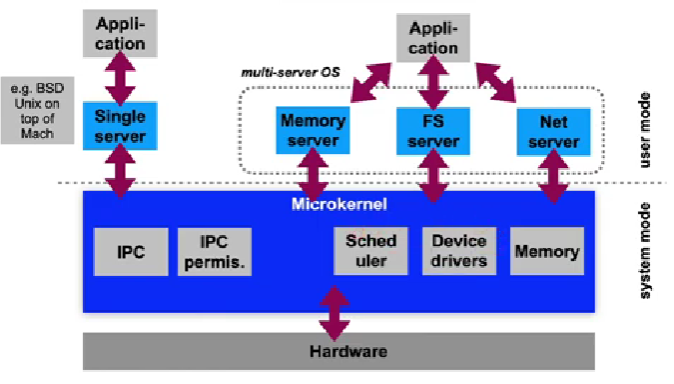

First-generation microkernels

• Example: CMU Mach
• Initial idea: Separation of the features of (BSD) Unix into features requiring execution in the privileged mode of a CPU and all other features
• Objective: Creation of an extremely portable system
• Improvements to Unix concepts
  • New communication mechanisms using IPC and ports
    • Ports are secure IPC communication channels
    • IPC is optionally network transparent: support for distributed systems
  • Parallel activities inside of a single process address space
    • Support for threads → processes are now "containers" for threads
    • Better support for multiprocessor systems

First-generation microkernels

First-generation microkernels

• Problems of Mach:
  • High overhead of IPC operations
    • System calls are a factor of 10 slower compared to a monolithic kernels
  • Sub-optimal decisions about which components should be implemented in the microkernel: large code base
    • Device drivers and permission management for IPC in the microkernel
  • Resulted in a bad reputation of microkernels in general
    • Practical usability was questioned
• The microkernel idea was dead in the mid 1990s
• Practical use of Mach mostly in hybrid systems
  • Separately developed components for microkernel and server
  • Colocation of the components in one address space, replacing of inkernel IPC by function calls
  • Apple macOS: Mach 3 microkernel base + FreeBSD components

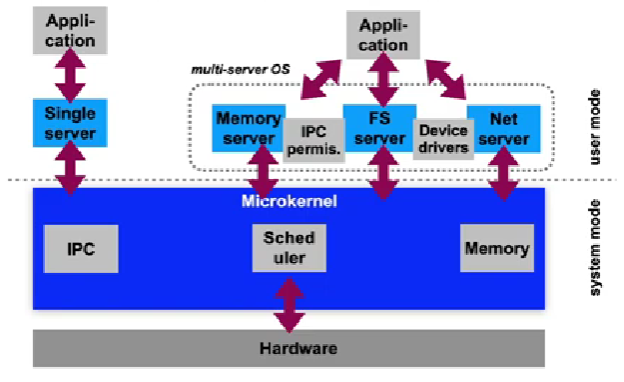

Second-generation microkernels

• Objective: Remove disadvantages of first generation microkernels
  • Optimization of IPC operations
  • Jochen Liedtke: L4 (1996)
    • A concept is tolerated inside of a microkernel only if moving it outside of the kernel would prevent the implementation of functionality required in the system
• Four basic mechanisms:
  • Abstraction of address spaces
  • A model for threads
  • Synchronous communication between threads
  • Scheduling
• Much of the functionality implemented in kernel mode in first generation microkernels now runs in user mode
  • e.g. checking of IPC communication permissions

Second-generation microkernels

Microkernel OS: Evaluation

• Isolation
  • Very good – separate address spaces for all components
• Interaction mechanisms
  • Synchronous IPC
• Interrupt handling mechanisms
  • The microkernel translates interrupts into IPC messages
• Adaptability
  • Originally hard to adapt – x86 assembler code, today in C/C++
• Extensibility
  • Very good and simple as components in user mode
• Robustness
  • Good – but dependent on the robustness of user mode components
• Performance
  • In general depending on the IPC performance

Exokernel OS: Even smaller…

• Idea to simplify the OS even further:
  • The lowest system software layers does not implement strategies or abstractions and does also not virtualize resources
  • One single task: resource partitioning
    • Every application is assigned its own set of resources
    • The assignment is enforced by the exokernel
    • Everything else is implemented according to demand using application-specific library operating systems inside of resource containers
• Problem: Library operating systems are specific to the respective exokernel

Virtualization

• Objective: Isolation and multiplexing of resources below the operating system layer
• Simultaneous use of multiple guest operating systems
• Virtual machines (VMs) on system level virtualize hardware resources such as:
• Processor(s), main memory and mass storage resources, peripheral devices

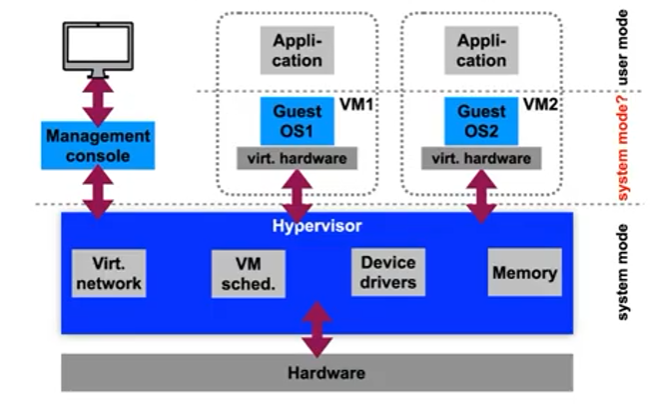

• A virtual machine monitor (VMM) or hypervisor is the software component that provides the virtual machine abstraction

Virtualization: IBM VM

• IBM S/360 mainframes: many different operating systems
  • DOS/360, MVS: batch processing library operating systems
  • OS/360+TSO: Interactive multi user system
  • Customer-specific extensions
• Problem: How to use all systems simultaneously?
  • Hardware was expensive (millions of US$)
  • OS expect to have control over the complete hardware → This illusion has to be maintained for every OS
• Development of the first system virtualisation "VM" as a combination of emulation and hardware support
  • Enabled simultaneous operation of batch processing and interactive operating systems

Virtualization with a type 1 hypervisor

Hardware-supported virtualization

• Example x86: Privileged instructions in ring 0 can be caught
  • Intel "Vanderpool" (Intel VT-x), AMD "Pacifica" (AMD-V)
  • Additional logical privilege mode: often called "ring -1"
• Guest OS kernel runs in ring 0 as before
• "Critical" instructions in ring 0:
  • Trap to the hypervisor
  • The hypervisor emulates critical instructions
  • or stops the OS using them (if not permitted)
• Allows to use multiple completely unchanged OS instances on a single hardware system at the same time
  • Peripheral devices of the respective VMs still have to be emulated, since the virtualized systems are not aware of the presence of the other OSes

Paravirtualization

• Applications of the virtualized OS run unchanged, but the virtualized OS itself requires a special kernel
• Guest kernel runs (on x86) in a protection ring > 0 (e.g. ring 3)
  • not in system mode
• Realization:
  • "critical" instructions (interrupt handling, memory management, etc.) in the guest kernel are replaced by hypercalls (explicit calls to the hypervisor)
    • VMware approach: kernel binary code is adapted when loading the guest OS
    • Xen approach: modification of the OS source code
  • Performance improvement: Hypercalls also used to access peripherals and the network – no more slow hardware emulation required

Virtualization: Evaluation

• Isolation
  • Very good – but coarse granularity (between VMs)
• Interaction mechanisms
  • Communication between VMs only via TCP/IP (virtual network cards!)
• Interrupt handling mechanisms
  • Forwarding of IRQs to guest kernel inside of the VM (simulated hardware interrupts)
• Adaptability
  • Specific adaptation for a CPU type required, paravirtualization has a lot of overhead
• Extensibility
  • Difficult – not commonly available in VMMs
• Robustness
  • Good – but coarse granularity (whole VMs affected by crashes)
• Performance
  • Good – 5-10% lower compared to direct execution on the same hardware

Libraries of OS functionality

• "Unikernels" are used to efficiently execute a single application inside of a virtual machine
  • mirageOS, Mini-OS, Unikraft, …

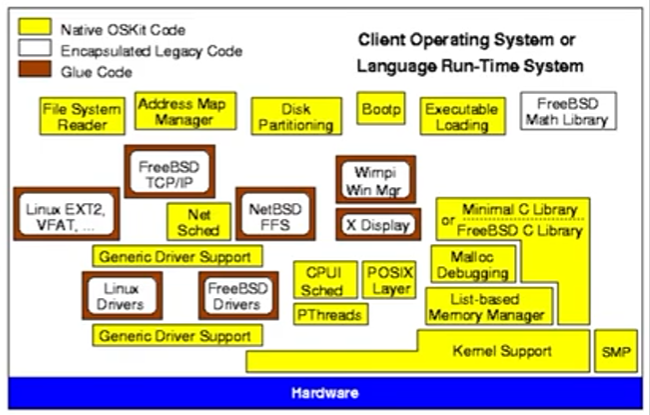

• Example: Utah OSKit
  • "best of" of different operating system components
  • Interfaces adapted to conform to a single standard
  • Language support (interface generator) enables easy integration of components

OS architectures: Conclusion

• OS architectures are still a current area of research
  • "old" technologies such as virtualization find new applications today, e.g. in cloud computing
  • Hardware and applications change all the time, e.g.
    • Energy awareness (energy harvesting)
    • Scalability (multi-/manycore processors)
    • Heterogeneity (ARM big.LITTLE, GPUs, ...)
    • Adaptability (mobile systems, resource constrained systems)
    • Persistent main memories (TI FRAM, Intel DCPMMs)
• Compatibility requirements and high development costs prevent the fast acceptance of new developments
  • Virtualization is used as compatibility layer
