Lecture 9, part 1: Memory management

Previous lecture Next lecture

Exam

Main memory as a resource and its management

Important questions:

• Requirements for memory management for multiprogramming systems?
• Which policies and strategies are relevant for memory management?
• Can you describe the basic problem of memory allocation?
• How does dynamic memory allocation work?
  • Can you describe different approaches, describe pros/cons?
• Can you name and describe different placement strategies?
• What is memory fragmentation?
  • Which kinds of fragmentation exist, what are their properties?
  • Where are different allocation methods typically used?
• Can you describe differences between swapping, segmentation, paging?
  • How does paging as an OS concept interact with the MMU?
  • How can paging be optimized using hardware or software approaches?

Resources (again)

• Tasks of an operating system:
  • Administering the resources of a computer ^6134fb
  • Creating abstractions that allow applications to easily and efficiently use these resources
• So far: processes
  • Concept to abstract from a real CPU
• Now: memory
  • Administration of main and background memory (RAM and secondary storage)

Multiprogramming (again)

• CPU load under the assumption of a given probability to wait for I/O
• Multiprogramming is essential to guarantee a high CPU utilization
  • When processes are started and terminated, memory has to be allocated and released dynamically!

Memory management requirements

• Multiple processes need main memory
  • Processes are located in different positions in main memory
  • Protection requirements:
    • Protect the OS from processes
    • Protect processes against accesses from other processes
  • Size of main memory may not suffice for all processes together
• OS has to know about free memory areas, administer and allocate them
  • Swapping of processes
  • Relocation of instructions in programs
  • Use hardware support

Basic policies and strategies

• Placement policy
  • Which area of memory should be allocated?
    • The one with the largest/smallest fragmentation?
    • Not that relevant, since fragmentation is secondary.
• Fetch policy
  • When should we swap in memory contents?
    • On demand or predictive
• Replacement policy
  • Which memory contents should be swapped out if the system is running out of free memory?
    • The oldest, least used one
    • The one that is used for the longest amound of time

Memory allocation: problem

The available memory is used by

• User processes
  • Program code (text)
  • Program data (data)
  • Dynamic memory allocations (stack, heap)
• Operating system
  • Operating system code and data
  • Process control blocks
  • Data buffers for I/O
  • ...
• Memory allocation is necessary!

Static memory allocation

• Idea: use fixed memory areas for the OS and for user processes
• Problems:
  • Limited degree of multiprogramming
  • Limitation of other resources e.g. I/O bandwidth due to buffers that are too small
  • Unused OS memory cannot be used by application processes (and vice versa)
• Solution: use dynamic memory allocation

Dynamic memory allocation

• Segments
  • contiguous area of memory
• Allocation and release of segments
• All the segments that hre part of a program we have seen already:
  • text segment(s)
  • data segment(s)
  • stack segment(s) (local variables, parameters, return addresses, ...)
• Search for suitable memory areas for allocation
  • especially when a program is started
• Placement policies required
  • especially important: management of free memory

Memory allocation: bit lists

• Free (sometimes also allocated) segments of main memory have to be represented
• Simple approach: bit lists
  • Problems:
    • Bit lists can require lots of memory
    • When releasing memory, the size of the memory block to be released has to be known or provided
    • Linear search is slow

Memory allocation: linked list

• Representation of used and free segments
• Problem:
  • Memory required for the list has to be allocated (dynamically)

Linked list in free memory

• A minimum gap size has to be guaranteed to store the length of and the pointer to the next free gap!
• Problem:
  • To increase efficieny, backwards links might be required in addition
  • This representation is dependent on the allocation strategy

Placement strategies

...based on different sorting policies for the list of gaps:

• First fit (sorted after memory address)
  • use the first fitting gap
• Rotating First Fit / Next Fit
  • Like first fit, but start with the most recently allocated gap
  • avoids the generation of a large number of small gaps at the beginning of the list
• Best Fit (sorted after gap size - smallest first)
  • find the smallest fitting gap
• Worst Fit (sorted after gap size - largest first)
  • find the largest fitting gap
• Problems:
  • gaps that are too small, fragmentation

Placement strategies (2)

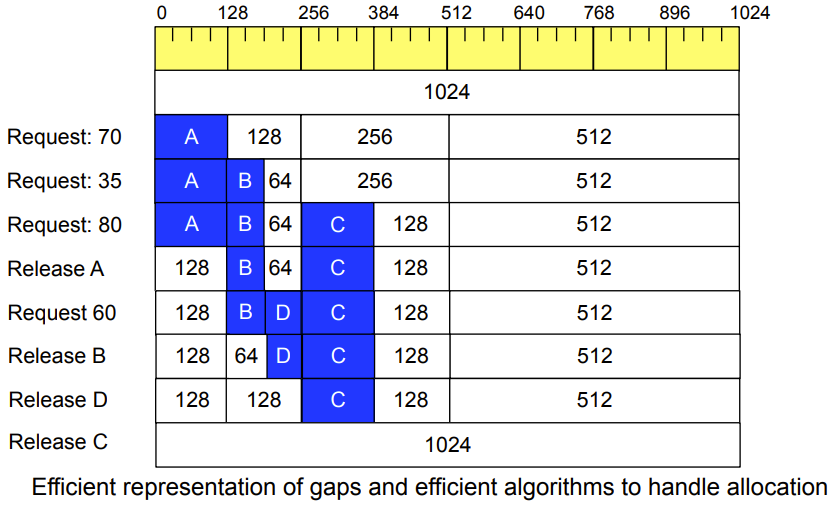

• Buddy method: split memory dynamically into areas of a size 2^n^

Discussion: fragmentation

• External fragmentation
  • Allocations creates memory fragments outside of the allocated memory areas which cannot be used
  • Problems with all list based strategies, e.g. first fit, best fit ...
• Internal fragmentation
  • Unused memory inside of allocated memory areas
  • Problem e.g. with the buddy allocator
    • since request sizes are rounded up to the next power of two

Use of the different methods

• In the operating system (kernel) itself
  • Management of system memory
  • Allocation of memory to processes and the operating system itself
  • e.g. Buddy allocator in Linux
• Inside of processes
  • Management of heap memory
  • Enables dynamic allocation of memory areas by the process (using the malloc und free libc functions)
  • Typically using linked lists
• Areas of secondary storage
  • Management of certain sections of secondary memory
    • e.g. the area used for process swapping (swap space)
  • Often using bitmaps

Lecture 9, part 2: Memory management and MMU hardware support

Multiprogramming: swapping

• Segments of a process are swapped out to background memory and released in main memory
  • e.g. if I/O waiting times hinder a process from running
• Segments are swapped in back into main memory when the waiting time ends
• Large amount of time required for swapping in and out
  • Latency of the disk (e.g. positioning og a read/write head of a hard disk, not a big problem with SSDs)
  • Transfer time

Swapping (2)

• Addresses in processes are usually linked statically
  • Can only be swapped into the same location in main memory
  • Collisions with new segments allocated in memory after the process was swapped out
• Possible solution: partitioning of main memory
  • Only one process per partition
  • Swapping in into the same partition as before
  • Memory cannot be used optimally
• Better approach: dynamic allocation and program relocation

Address linking and relocation

• Problem: Machine instructions use addresses
  • e.g. a jump instruction that changes control flow into a function
  • or a load instruction to read a variable value from the data segment
• Different approaches to link the adrress used as the operand of an instuction:
  • Absolute linking (at compile/link time)
    • Addresses are fixed
    • The program can only execute correctly at a certain location in memory
  • Static linking (at load time)
    • Absolute addresses are adapted (relocated) when a program is loaded (started)
    • Relocation information has to be provided by the compiler/assembler
  • Dynamic linking (at execution time)
    • Code accesses operands only indirectly
    • The program can be relocated in memory at any time
    • Resulting programs are slightly larger and slower

Address linking and relocation (2)

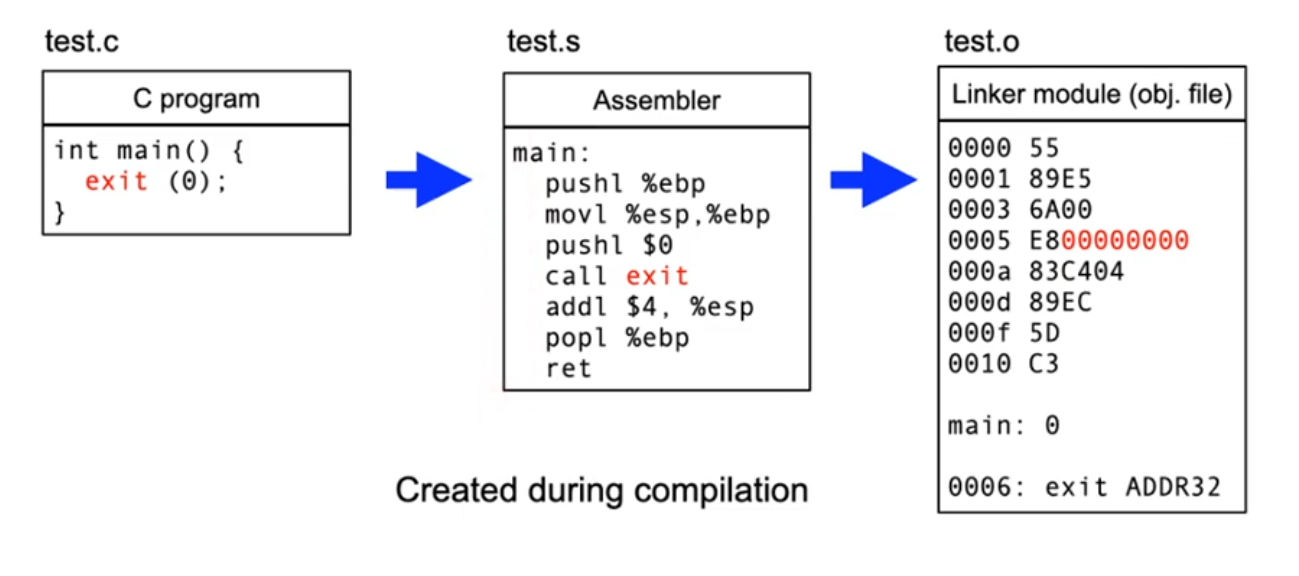

• Translation process (creation of relocation information)

Address linking and relocation (3)

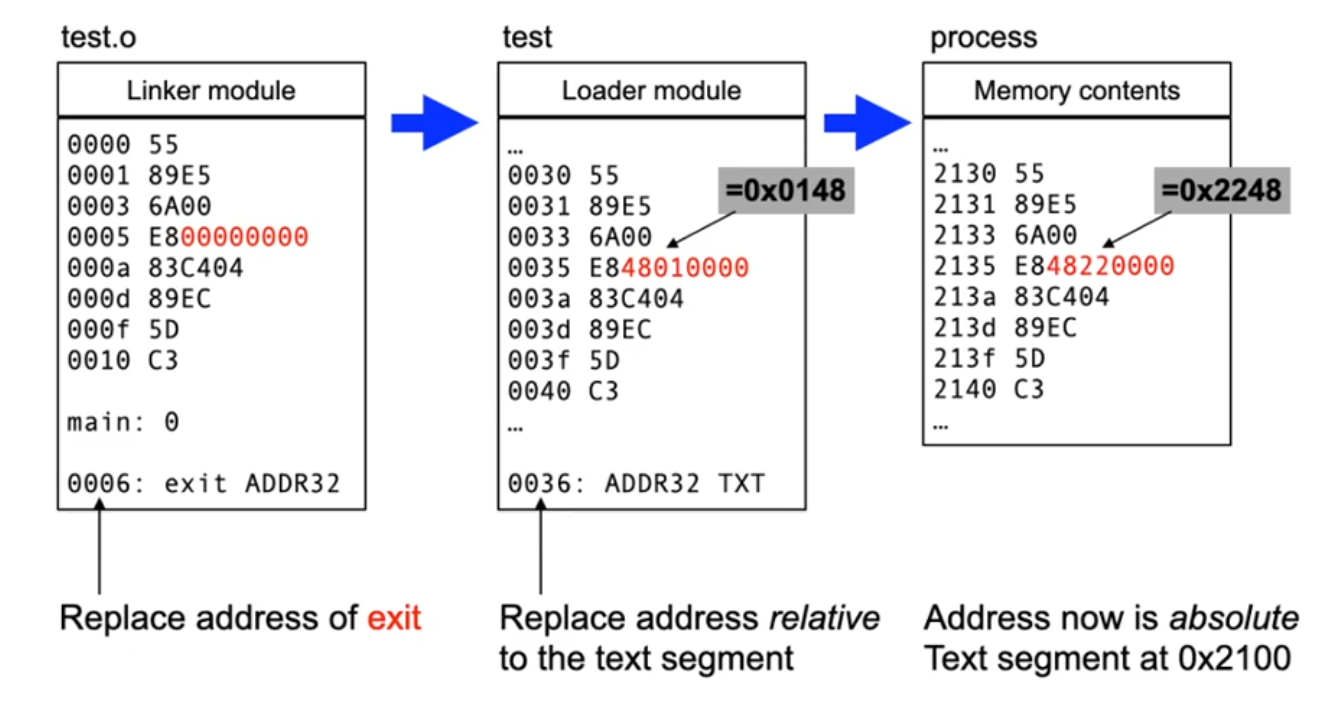

Address linking and relocation (4)

• Relocation information in the linker module (object file)
  • allows the linking of modules into arbitrary programs
• Relocation information in the loader module
  • allows loading of the program at arbitrary locations in memory
  • absolute addresses are generated only at load time
• Dynamic linking with compiler support
  • Program does not use absolute addresses and can thus always be loaded to arbitrary memory locations
    • position independent code (PIC)
• Dynamic linking with MMU support
  • What modern computers usually do
  • Mapping from "logical" to "physical" addresses
    • Relocation at link time is sufficient (except for shared libraries)

Segmentation

• Hardware support: map logical to physical addresses
• The segment in the logical address space can be located at an arbitrary position in the physical space
• The OS controls where a segment is located in physical memory

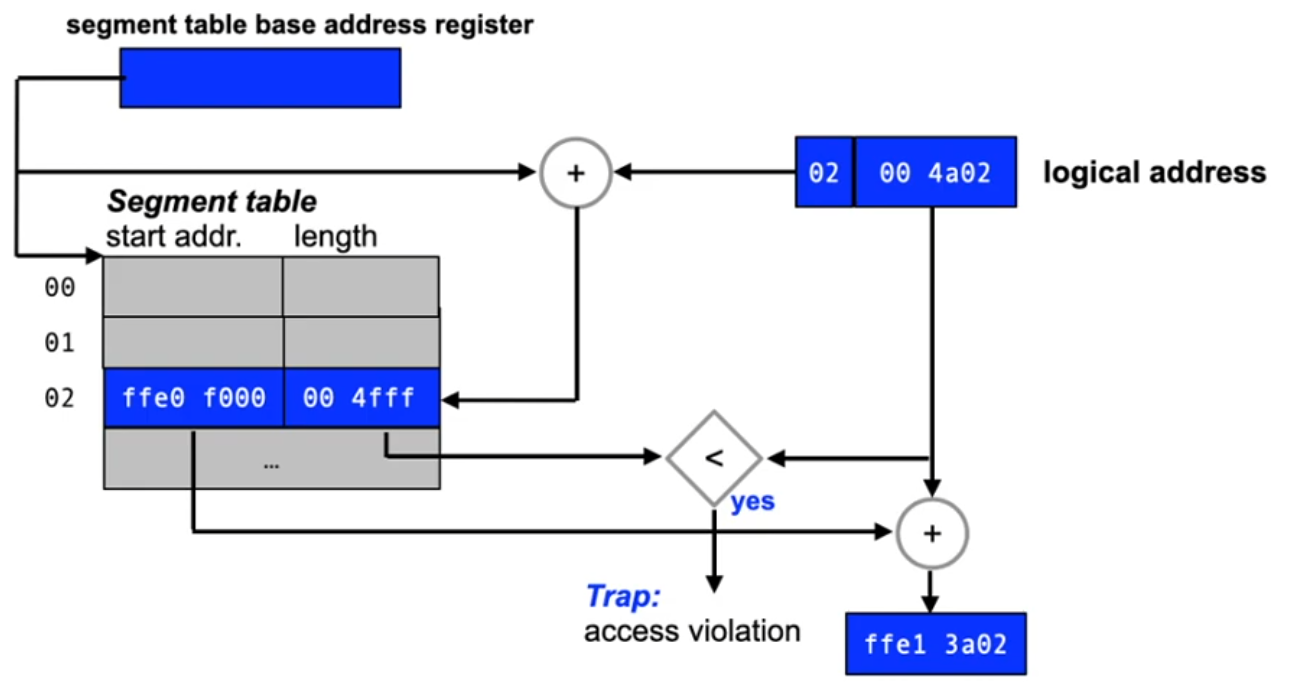

Segmentation (2)

• Using a translation table (per process)

Segmentation (3)

• Hardware component translating addresse: MMU (Memory Management Unit)
• Protects against overstepping the segment limits
  • MMU checks read/write/execute permissions
  • Trap indicates a violation (a process attempts to access non permitted memory location)
  • Programs and operating system are protected against each other
• Process switching by exchanging the segment base
  • each process has its own translation table
• Easier swapping
  • after swapping a process into an arbitrary memory location, only the translation table has to be modified
• Shared segments are possible
  • Instruction (text) segments
  • Data segments (shared memory)

Segmentation (4)

Problems...

• Fragmentation of main memory due to frequent swapping or starting/termination of processes
  • This results in small unusable gaps: external fragmentation
• Compacting helps
  • Segments are moved to close gaps
  • Segment table is modified accordingly
  • Time consuming..
• Long running I/O operations required for swapping
  • Not all parts of a segment are used with the same frequency

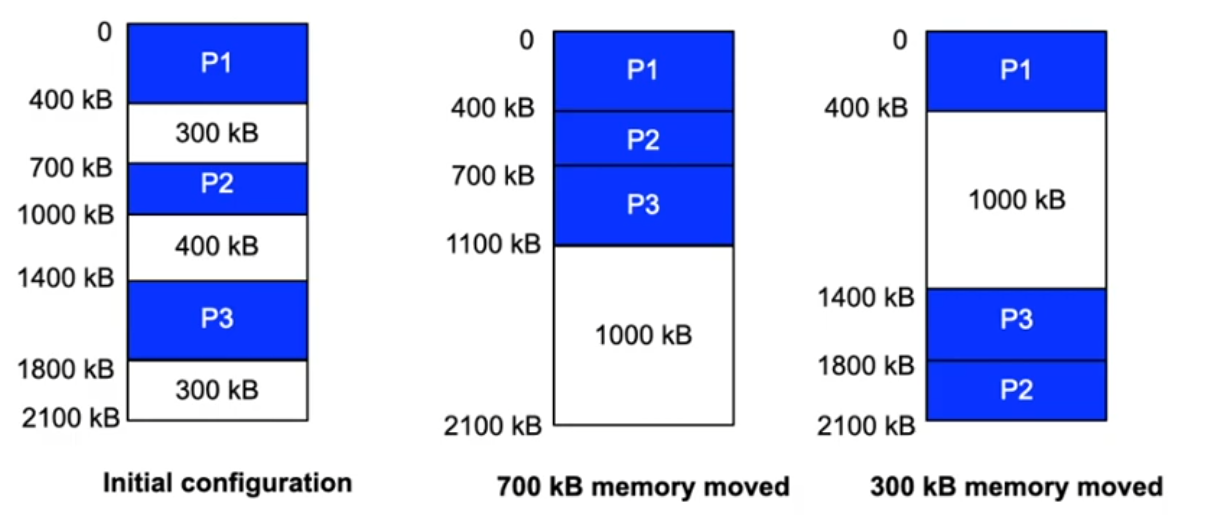

Compaction

• Moving of segments
  • Creates fewer but larger gaps
  • Reduced fragmentation
  • Operation with large overhead
    • Specific overhead depends on the size of the segments that are moved

Paging

• Logical address space is split into pages of identical size
  • Pages can be located at arbitrary positions in the physical memory address space
  • Solves the fragmentation problem
  • No compaction necessary
  • Simplified memory allocation and swapping

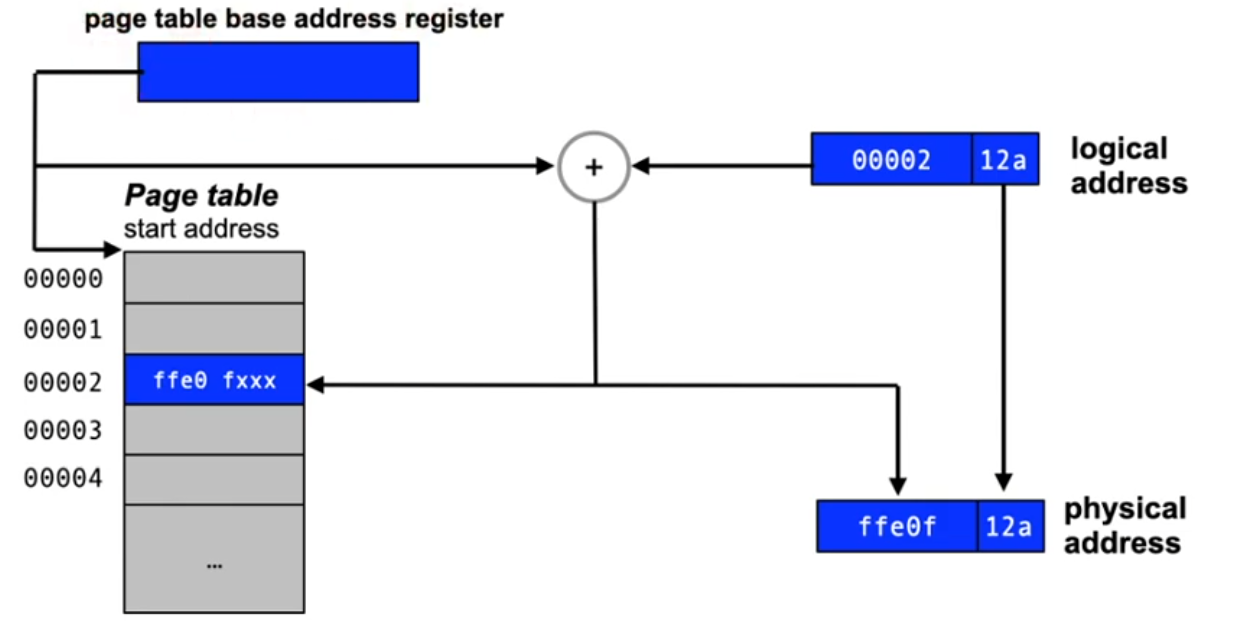

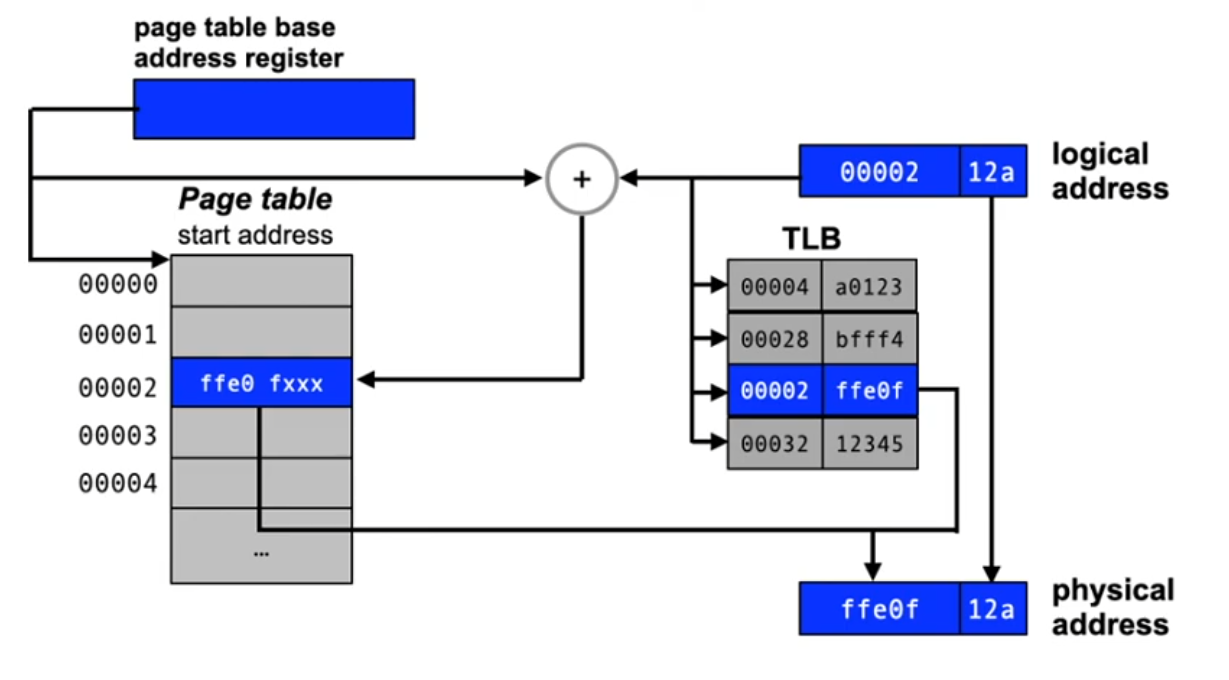

MMU with page table

• A table is used to translate page addresses into page frame addresses

MMU with page table (2)

• Page-based addressing creates internal fragmentation
  • The last page is often not used completely
• Page size
  • small pages reduce internal fragmentation, but increase the size of the page table (and vice versa)
  • common page size: 512 bytes - 8192 bytes
• Page tables are large and have to be kept in main memory
• Large number of implicit page accesses required to map an address
• Only one "segment" per context
  • Makes the "appropriate" use of memory difficult to control
    • e.g. ensuring push/pop only on "stack", execution only of "text"

-> Combine paging with segmentation

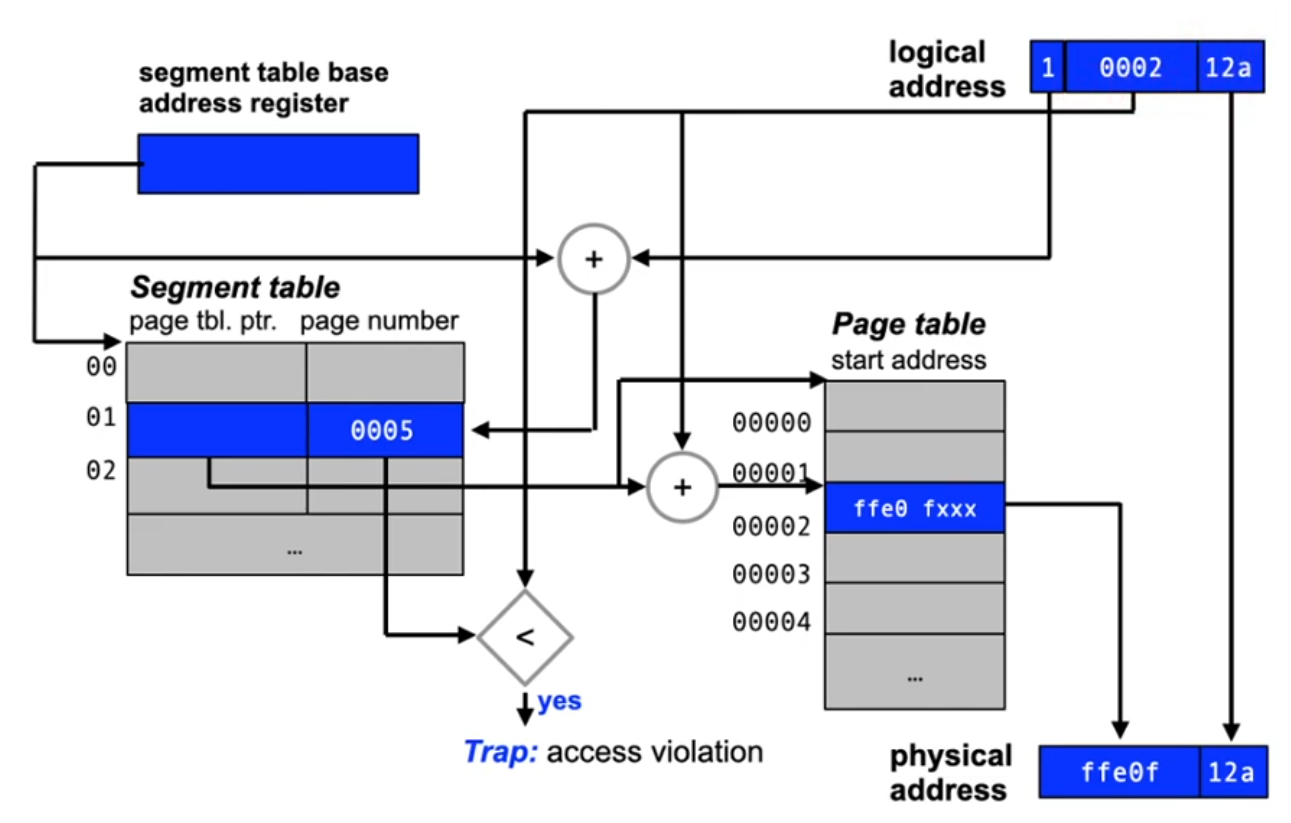

Segmentation and page addressing

Segmentation and page addressing (2)

• This requires even more implicit memory accesses
• Large tables in main memory
• Mixup of the different concepts
• Still swapping of complete segments

-> Multi-level page addressing with paging

Paging

• Swapping complete segments is not necessary
  • Single pages can now be swapped (paged)
• Hardware support
  • If the presence bit is set, nothing changes
  • If the presence bit is cleared, a trap is invoked (page fault)
  • The trap handler (part of the OS) can now initiate the loading of the page from background storage (this requires hardware support in the CPU)

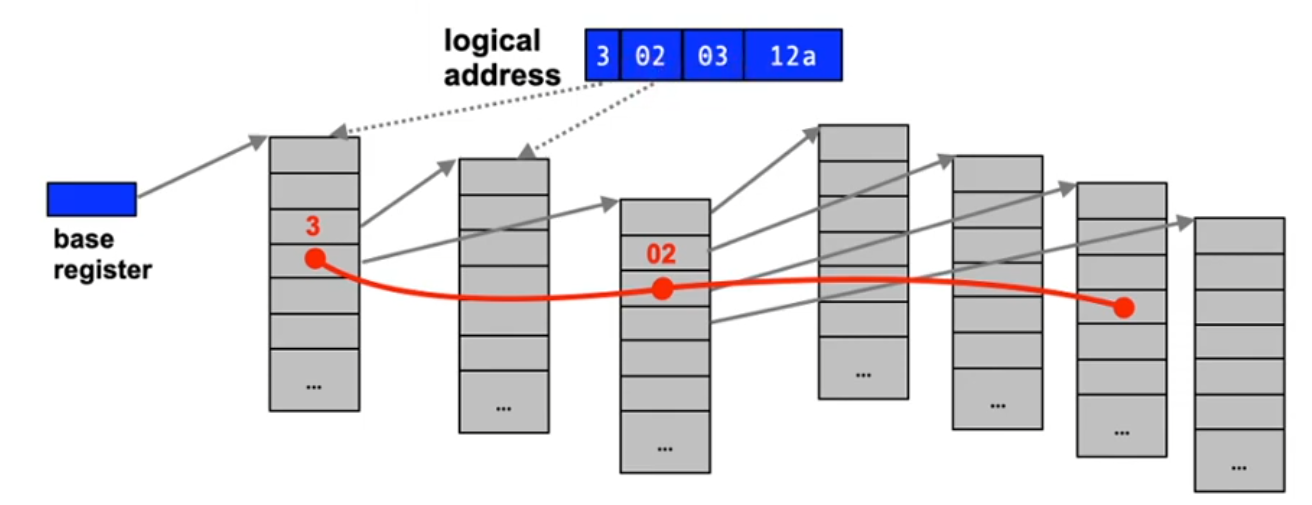

Multi-level page addressing

• Example: two-level page addressing

• Presence bit also for all entries in higher levels
  • This enable the swapping of page tables
  • Tables can be created at access time (on demand) - saves memory!
• However: even more implicit memory addresses required

Translation lookaside buffer (TLB)

• Fast cache which is consulted before a (possible) lookup in the page table

Translation lookaside buffer (2)

• Fast access to page address mapping, if the information is contained in the (fully associative) TLB memory
  • No implicit page accesses required
• TLB has to be flushed when the OS switches context
• If a page not contained in the TLB is accessed, the related access information is entered into the TLB
  • An old TLB entry has to be selected to be replaced by the new one
• TLB sizes:
  • Intel Core i7: 512 entries, page size 4 kB
  • UltraSPARC T2: data TLB = 128, Code TLB = 64, page size 8 kB
  • Larger TLBs are currently not implemented due to timing and cost considerations

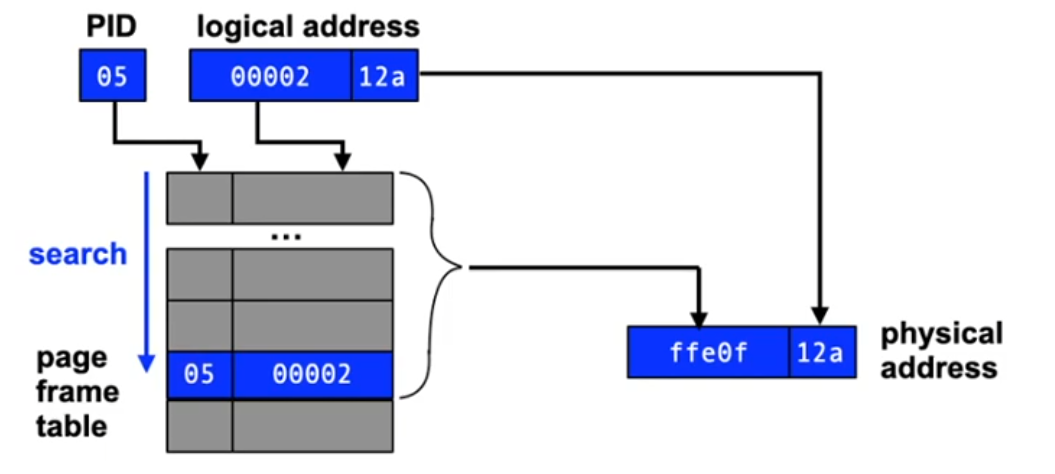

Inverted page tables

• For large logical address spaces (e.g. 64 bit addresses)
  • Classical page tables are very large or
  • Large number of address translation levels
  • Page tables are often only sparsely populated

-> Inverted Page Tables

Inverted page tables (2)

• Advantages
  • Required little memory space to store address mappings
  • Table can always be kept in main memory
• Disadvantages
  • Sharing of page frames is difficult to implement
  • Process-local data structures are used for pages that are swapped out
  • Lookups in the page table have large overhead
    • Use of associative memories and hash functions
• Despite these disadvantages, many 64 bit processors use this approach to address translation:
  • Sun UltraSparc, IBM PowerPC, intel Itanium (IA-64), (DEC Alpha), ...
  • But these are not in much use today

Conclusion

• The OS has to work in close cooperation with the hardware to enable efficient memory management
  • Segmentation and/or page-based addressing
  • The implicit indirection of memory accesses allows to arbitrarily move code and data of running processes under the control of the OS (at page size granularity)
• Additional strategic decisions have to be taken
  • Placement strategy (first fit, best fit, buddy, ...)
    • These differ with regard to fragmentation and the required overhead from allocation and release
    • Selection of an appropriate strategy depends on the expected application profile
  • When swapping segments or pages:
    • Loading strategy
    • Replacement strategy
