Lecture 12: Uniprocessor scheduling

Previous lecture Next lecture

Exam

Processors and processor time as a resource and its management

Important questions:

• Can you define the terms "dispatching" and "scheduling"?
• Which dispatch states exist, which level of scheduling are they related to?
  • Can you describe details of short/medium/long term scheduling?
  • Which process state transitions are related to which scheduling level?
• Can you explain preemptive scheduling and its advantages?
  • Can you give examples for scheduling strategies, explain how they work?
  • Can you determine scheduling orders for a given strategy?
• Can you discuss pros/cons of the different scheduling strategies?
• What is multi-level scheduling and how is this related to priorities?
• Can you give details of scheduling strategies in Unix and Windows?

Processes once again…

• Processes are (still…) the central abstraction for activities in

current operating system

• illusion of independent sequential control flows as a concept (sequence of CPU and I/O bursts)
• in real life, the CPU is multiplexed
• Unix systems provide a set of system calls to create and

manage processes and to provide communication channels

• in addition, modern operating systems also support light and featherweight processes
• Processes are controlled by the operating system
  • allocation of resources
  • preemption of resources

Dispatch states

Depending on the scheduling level, every process is assigned a logical state representing its dispatch state at a given point in time:

• short-term scheduling (µs – ms)*
  • ready, running, blocked
• medium-term scheduling (ms – min)*
  • swapped and ready, swapped and blocked
• long-term scheduling (min – hours)*
  • created, terminated

*Rule of thumb how often a scheduling decision or state change occurs

Short-term scheduling

• ready to be executed by the CPU
  • a process is on the ready (waiting) list for CPU allocation
  • its list position depends on the scheduling algorithm
• running: resource "CPU" has been allocated to the process
  • a process is computing: "CPU burst"
  • there is only one running process per CPU at any given moment in time
• blocked: waiting for an event
  • a process performs input or output: "I/O burst"
  • it waits for the occurrence of at least one condition

Medium-term scheduling

A process is completely swapped out

• the complete contents of its address space are moved to background storage
• the main memory it used is released

The process has to wait to be swapped in:

• swapped out ready (READY SUSPEND)
  • CPU allocation ignores this process
  • the process is on a waiting list for memory allocation
• swapped out blocked (BLOCKED SUSPEND)
  • the process waits for an event (it is blocked)
  • if this event takes place, the process state changes to READY SUSPEND

Long-term scheduling

• Processes are created (NEW) and ready to be started: fork(2)
  • a process instance was created and assigned to a program
  • the allocation of the resource "memory" might still be outstanding (e.g. when paging in parts of the process address space on demand)
• Processes are terminated (EXIT) and wait for their removal: exit(2)/wait(2)
  • the process is terminated, its resources are released
  • the "cleanup" after process termination can be performed by a different process (e.g. in Unix)

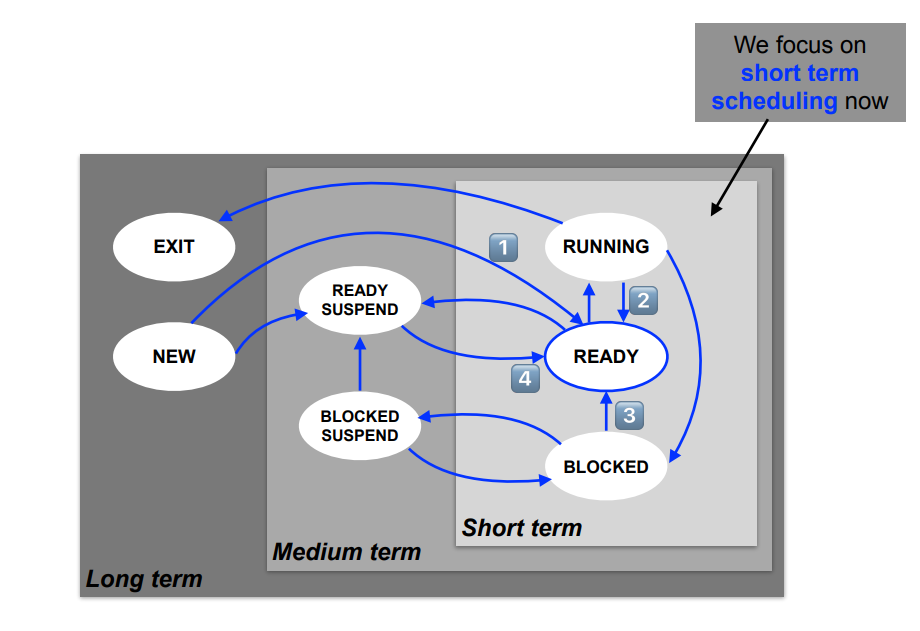

State transitions

Scheduling points

• Every transition into the READY state updates the CPU waiting queue
  • a decision about the queueing of its process control blocks is made
  • the result depends on the CPU allocation strategy of the system
• Scheduling and rescheduling takes places…
  1. after a process is created
  2. if a process yields control of the CPU
  3. if the event a process is waiting for takes place
  4. when a swapped out process is considered for CPU allocation again
• A process can be forced to yield (release) the CPU → preemptive scheduling
  • e.g. using a timer interrupt

First-Come First-Served – FCFS

• A simple and fair (?) algorithm: "first come first served"
• Queueing criterion is the arrival time of a process
• Algorithm is non preempting and assumes cooperating processes

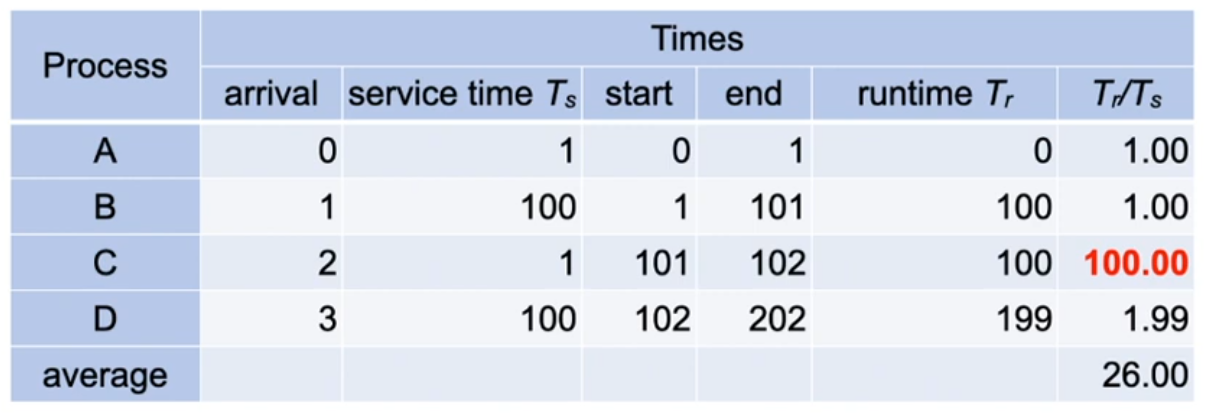

• Example:
• the normalized runtime (Tr / Ts) of C is bad in relation to its service time Ts

Discussion: FCFS – "convoi effect"

• This problem affects short running I/O-intensive processes which follow long CPU-intensive processes
  • Processes with long CPU bursts benefit from this
  • Processes with short CPU bursts are disadvantaged
• FCFS minimizes the number of context switches. However, the convoi effect causes a number of problems:
  • large response time
  • low I/O throughput
• If the system runs a mix of CPU- and I/O-intensive processes,

FCFS is not a suitable approach

• it is typically only used in batch processing systems

Round Robin (RR)

• Reduces the disadvantage of processes with short CPU bursts: "everyone for themselves!"
  • the available processor time is split into time slices
• When a time slice is used up, a process switch can occur
  • the interrupted process is moved to the end of the ready list
  • the next process is selected from ready list according to FCFS
• Basis for protecting access to the CPU: a timer enforces an interrupt at the end of each time slice
• The efficiency of this approach depends essentially on the chosen length of the time slice
  • too long ➛ round robin degenerates to FCFS
  • too short ➛ very high overhead for process switches
• Rule of thumb: time slices should be "a bit longer" than the duration of a "typical interaction"

Discussion: RR – performance problems

• I/O-intensive processes terminate their CPU burst before their time slice is used up
  • they block and are added back to the ready list when their I/O burst is finished
• CPU-intensive processes, however, use their time slice completely
  • they are then preempted and immediately added to the end of the ready list
• The amount of CPU time for processes is thus distributed

inequally ➛ CPU-intensive processes get a larger share

• I/O-intensive processes are not served as well, thus the utilization of I/O devices is low
• the variance of the response time of I/O-intensive processes increases

Virtual Round Robin (VRR)

• Avoids the unequal distribution of CPU times with RR
  • processes are added to a preferred list when their I/O burst ends
  • this list is considered before the ready list
• Virtual Round Robin uses time slices of different lengths
  • processes on the preferred list are only allocated a partial time slice
  • they can use the remaining run time they did not use in their previous time slice
  • if their CPU burst last longer, they are moved to the ready list
• Scheduling in VRR involves a bit more overhead compared to RR

Shortest process next (SPN)

• Reduces the disadvantage of short CPU bursts with FCFS: "let the shortest come first…"
  • this requires knowledge about the process run times
  • no preemption
• The main problem here is the prediction of run times
  • batch processing: the programmer annotates the required time limit
  • interactive procession: time limit estimated based on previous CPU burst lengths of the process
• Response times are reduced significantly and the overall system performance is increased
  • However: danger of starvation of CPU-intensive processes

Discussion: SPN – weighting bursts

• CPU bursts further in the past should be weighted less:

  $$S_{n + 1} = \alpha \cdot T_n + (1 - \alpha) \cdot S_n$$

• values of the constant weighting factor α: 0 < α < 1

• it represents the relative weighting of

single CPU bursts in the time line of the process

• Recursive solving leads us to...

  $$S_{n + 1} = \alpha \cdot \sum_{i = 0}^{n - 1} (1 - \alpha)^i \, T_{n - i} + (1 - \alpha)^n \cdot S_1$$

This statistical approach is also called exponential smoothing.

Shortest Remaining Time First (SRTF)

• Extends SPN with preemption
  • thus appropriate for interactive operation
  • results in improved runtimes
• The running process is preempted if Texp < Trest
  • Texp is the expected CPU burst length of an arriving process
  • Trest is the remaining CPU burst length of the running process
• Difference to RR: SRTF is not based on timer interrupts, but nevertheless preemptive
  • We have to estimate burst lengths instead
• Like SPN, processes can also starve using SRTF

Highest Response Ratio Next – HRRN

• Avoids the possible starvation of CPU-intensive processes that can occur with SRTF

  • HRRN considers the aging of processes – their waiting time

    $$R = \frac{w + s}{s}$$

• w is the "waiting time" the process has accumulated so far

• s is the "expected service time"

• HRRN always selects the process with the highest value of R

  • Again, this is based on an estimation of the service time

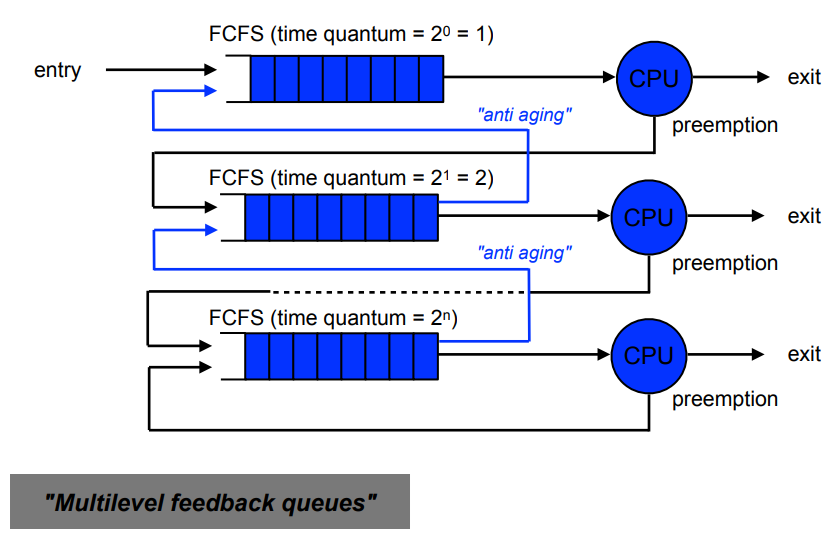

Feedback (FB)

• Short processes obtain an advantage without having to estimate the relative lengths of processes
  • Basis is the penalization of long running processes
  • Processes are preempted
• Multiple ready lists used according to number of priority levels
  • when a process arrives for the first time, it has highest priority
  • when its time slice is used up, it is moved to the next lower priority level
  • the lowest level works according to RR
• Short processes finish in a relatively short amount of time, but long processes can starve
  • It is possible to consider the waiting time to move a process back to a higher priority level (anti-aging)

Discussion: Priorities

• Process priorities significantly influence scheduling decisions
• Static priorities are defined when a process is created
  • their value cannot be changed during the execution of the process
  • this enforces a deterministic ordering of processes
• Dynamic priorities are updated while a process is running
  • the operating system usually updates the priorities, but also the user can be allowed to influence priorities
  • SPN, SRTF, HRRN and FB are special cases of this approach

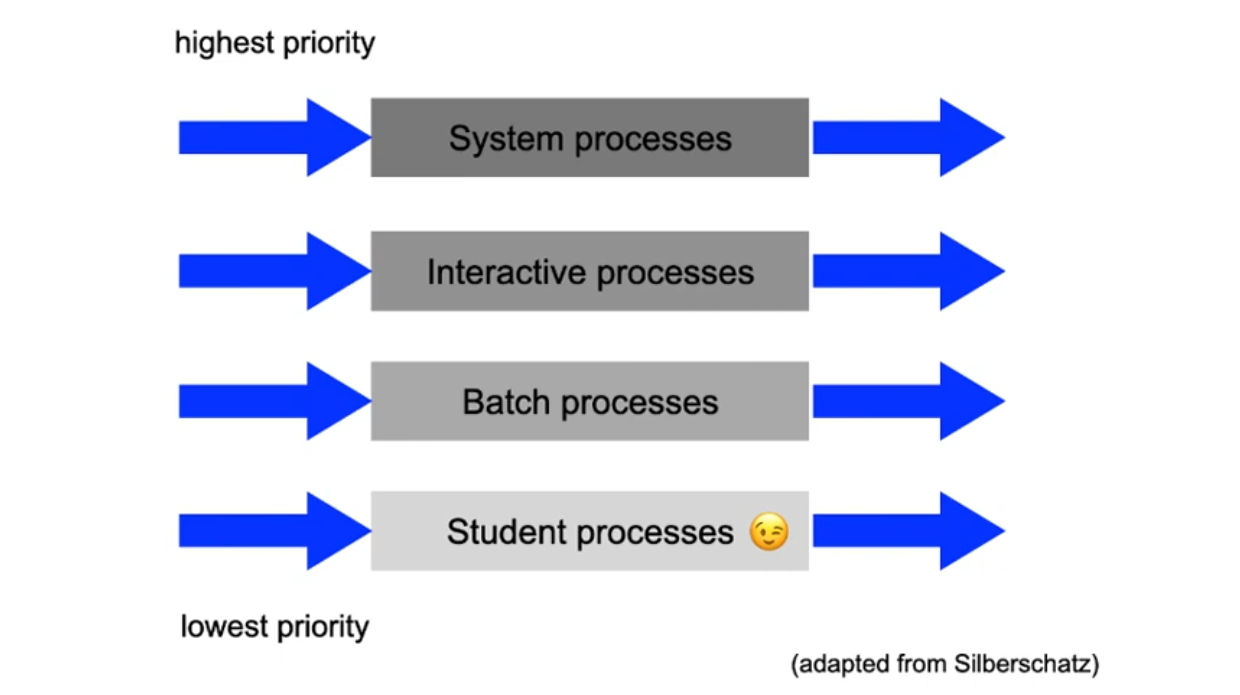

Combination – Multi-level scheduling

• Multiple scheduling strategies can be combined (i.e., used

"simultaneously"), e.g. support of

• interactive and background processing or
• realtime and non-realtime processing
  • interactive / real-time critical processes are preferred
• The implementation typically uses multiple ready lists
  • every ready lists has its own scheduling strategy
  • the lists are typically processed using priority, FCFS or RR
  • overall, a very complex approach!
• FB can be seen as a special case of this approach

Objectives for evaluation

• User oriented:
  • Run time – time between start and termination of a process including the waiting time(s) → batch processing
  • Response time – time between user input and program response → interactive systems
  • Tardiness – for the interaction with external physical processes, deadlines have to be adhered to → real-time systems
  • Predictability – processes are always processed identically independent of the load → hard real-time systems
• System oriented:
  • Throughput – finish as many processes as possible per time unit
  • CPU load – keep the CPU busy at all times
    • avoid overhead (scheduling decisions, context switches)
  • Fairness – no process should be disadavantaged (e.g. by starvation)
  • Load balancing – I/O devices should also be utilized uniformly

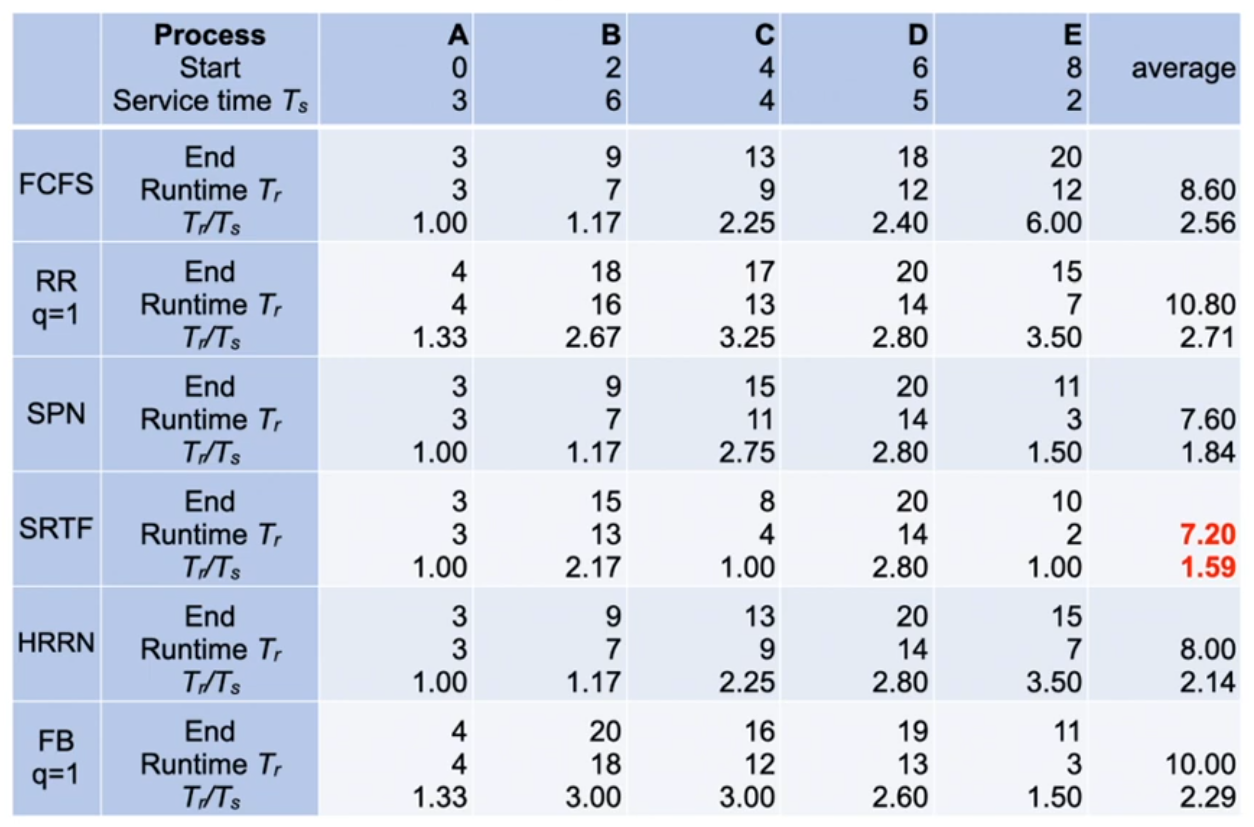

Quantative comparison

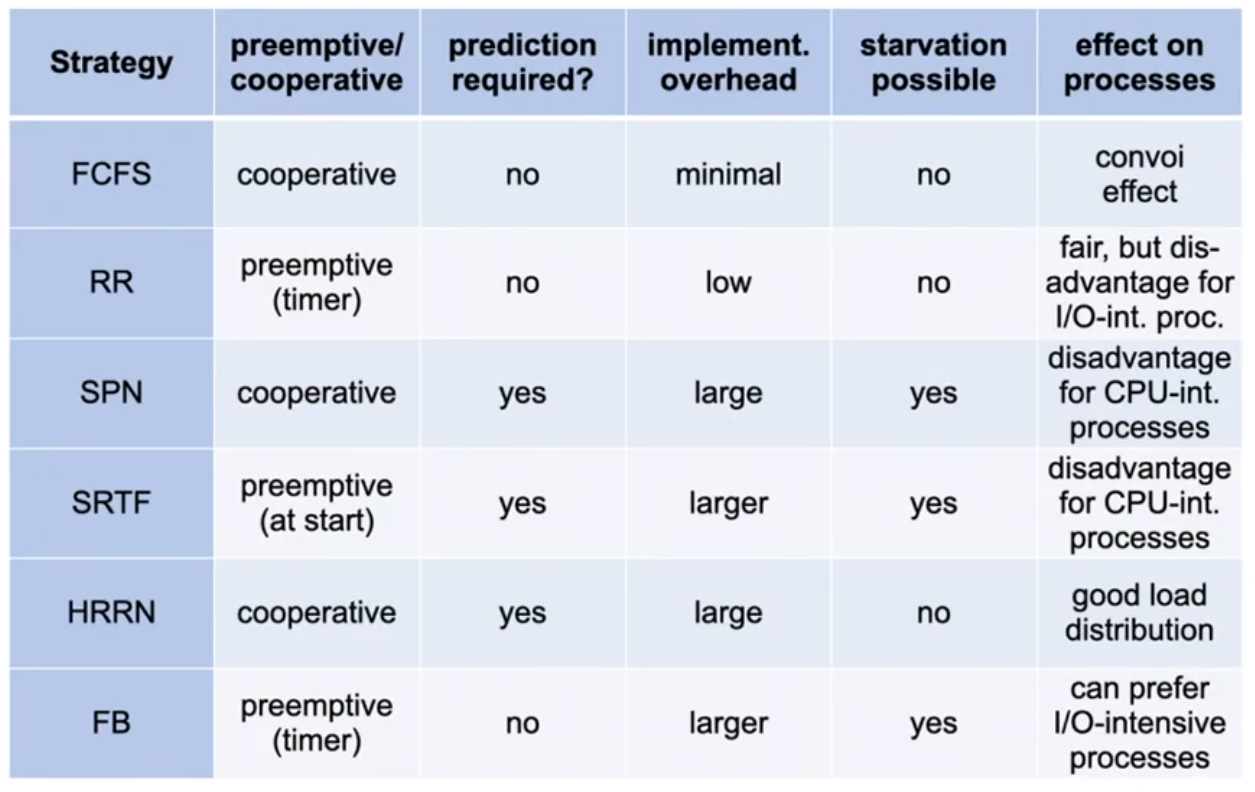

Qualitative comparison

Scheduling in Unix

• Two step preemptive approach
  • objective: reduce response times
• No long term scheduling
• high-level: mid term, using swapping
• low-level: short term preemptive, MLFB, dynamic process priorities

prio = cpu_usage + p_nice + base

• Once a second:
  • every "tick" (1/10 s) reduces the "usage entitlement" for the CPU by increasing cpu_usage for the running process
  • high prio value = low priority!
• The amount of cpu_usage over the time is reduced (smoothed)
  • the smoothing function is different in various versions of Uni

UNIX – 4.3 BSD (1)

• The user priority is determined at every fourth tick (40ms):

  $$P_{usrpri} = \min(PUSER + \frac{P_{cpu}}{4} + 2 \cdot P_{nice}, 127)$$

• Pcpu is incremented (by 1) with every tick and is smoothed once

a second:

$$P_{cpu} \impliedby \frac{2 \cdot load}{2 \cdot load + 1} \cdot P_{cpu} + P_{nice}$$

• Smooting for processes that are woken up and were blocked for

more than 1 second:

$$P_{cpu} \impliedby \left( \frac{2 \cdot load}{2 \cdot load + 1} \right)^{P_{slptime}} \cdot P_{cpu}$$

UNIX – 4.3 BSD (2)

• Smoothing (using a decay filter):

for an assumed average load of 1: Pcpu := 0.66 · Pcpu + Pnice

• In addition, we assume that a process collects Ti ticks in the time

interval i and Pnice = 0

Pcpu1 = 0.66 T0
Pcpu2 = 0.66 (T1 + 0.66 T0 ) = 0.66 T1 + 0.44 T0
Pcpu3 = 0.66 T2 + 0.44 T1 + 0.30 T0
Pcpu4 = 0.66 T3 + … + 0.20 T0
Pcpu5 = 0.66 T4 + … + 0.13 T0

• After 5 seconds, only 13% of the "old" load are considered

Windows NT – Priority classes

• Preemptive, priority- and time slice-based thread scheduling
  • preemption also occurs for threads executing in the kernel → different to Unix
  • RR for processes of the same priority: 0 reserved, 1–15 variable, 16-31 real-time
• The thread type (fore-/background thread) determines the time quantum available to the thread → quantum stretching
  • quantum (between 6 and 36) is reduced by 3 or 1 with every tick (10 or 15 ms), if the thread changes to the waiting state
  • the length of a time slice varies with the process: 20–180 ms
    • foreground/background, server or desktop configuration
• In addition, NT has variable priorities:
  • process_priority_class + relative_thread_priority + boost

NT – Adaptive priorities

• Thread priorities are dynamically increased when certain conditions are given: dynamic boost
  • Completion of input/output (disk): +1
  • Mouse movement, keyboard input: +6
  • Deblocking, release of resources (semaphore, event, mutex) +1
  • Other events (network, pipe, …) +2
  • Event in foreground process +2
• Dynamic boosts are decreased again ("used up") with every tick
• Guarantee of progress
  • avoids the starvation of threads
  • up to 10 "disadvantaged" threads are allocated priority 15 for two time slices every 3–4 seconds

Conclusions

• Operating systems take CPU scheduling decisions on three different levels:
  • Long term scheduling: admission of processes to the system
  • Medium term scheduling: swapping of processes
  • Short term scheduling: short-term CPU allocation
• All algorithms discussed in this lecture are considered short term scheduling approaches:
  • there are different user- and system oriented criteria to assess the properties of a CPU scheduling algorithm
  • the selection of an approach is difficult and can have unexpected negative effects
  • the "best" approach can only be found by an analysis of typical application profiles and all given constraints
