Lecture 10, part 1: Virtual memory and replacement strategies

Previous lecture Next lecture

Exam

Details on concepts and implementation of virtual memory

Important questions:

• What is the locality principle in computers?
  • Which kinds of locality exist, can you describe their properties?
  • How can locality be used to optimize performance?
• What is the idea behind virtual memory, which abstraction/illusion is created by virtual memory?
• How does demand paging work?

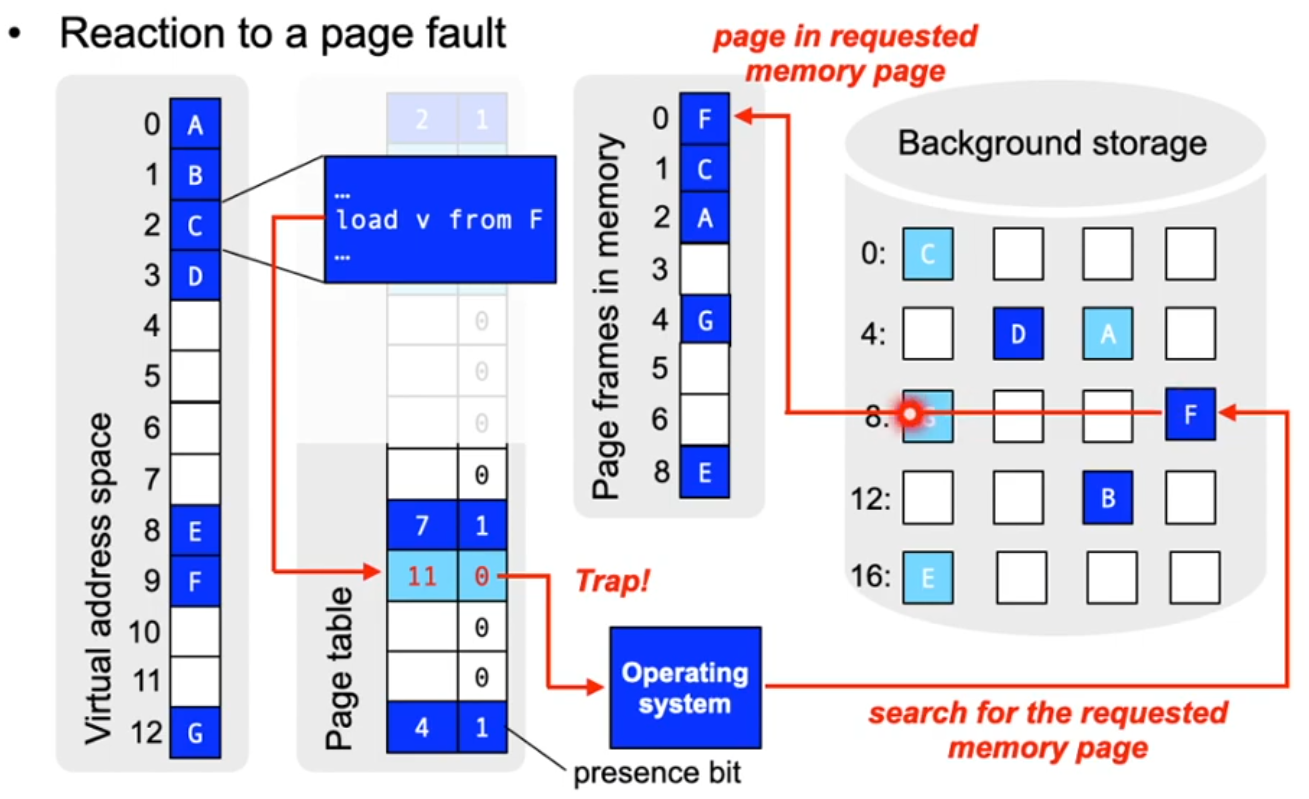

  • What is a page fault and how is it handled?
  • What are tasks of the OS and hardware when handling page faults?
• Can you name different page replacement strategies and discuss their pros/cons? (FIFO, optimal, LRU, second chance)
  • Can you simulate different strategies given an access sequence?
• Can you define thrashing and name causes and possible solutions?
• What is the working set of a process and how can you determine it?

Locality of memory accesses

• The execution of single instructions only requires the presence of very few memory pages
• This strong locality also manifests itself over longer periods of time
  • e.g. instructions are usually executed one after the other (without jump or exceptions)
• This locality can be exploited when the system is running out of available main memory
  • e.g. using overlays

The idea of "virtual memory"

• Decouple the memory requirements from the available amount of main memory
  • Processes do not access all memory locations with the same frequency
    • certain instructions are used (executed) only very infrequently or not at all (e.g. error handling code)
    • certain data structures are not used to their full extent
  • Processes can use more memory than available as main memory
• Idea:
  • Create the illusion of a large main memory
  • Make currently used memory areas available in main memory
  • Intercept accesses to areas currently not present i main memory
  • Provide required areas on demand
  • Swap or page out areas which are (currently) not used

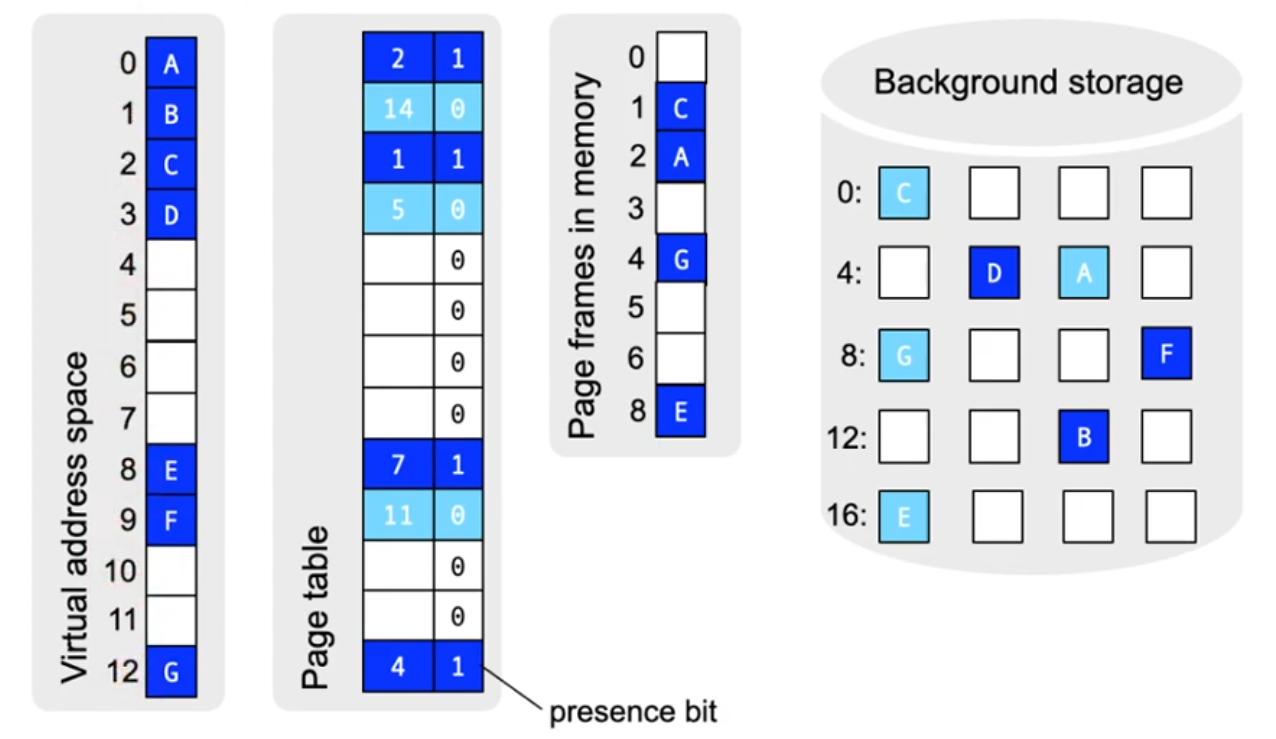

Demand paging

• Providing pages on demand

Discussion: paging performance

• Performance of demand paging
  • No page faults:
    • Effective access time ~10-200 ns
  • When a page fault occurs:
    • Let p be the probability of a page fault
    • Assume that the time required to page in a page from background memory = 25 ms (8 ms latency, 15 ms positioning time, 1 ms transfer time)
    • Assume a normal access time of 100 ns
    • Effective access time: (1 - p) _ 100 + p _ 25 000 000

-> Page fault rate has to be extremely low (p is close to 0)

Discussion: additional properties

• Process creation
  • Copy on write
    • Easy to implement also using a paging MMU
    • More fine grained compared to segmentation
  • Program execution and loading can be interleaved
    • Requrested pages are loaded on demand
• Locking the access to pages
  • Required for I/O operations

Discussion: demand segmentation

• In principle possible, but this comes with disadvantages
  • Coarse granularity
    • e.g. code, data, stack segment
  • Difficult main memory allocation
    • With paging, all free page frames are equally useful
    • When swapping segments, the search for appropriate memory areas is more difficult
  • Background memory allocation is more difficult
    • The background memory is divided into blocks, similar to page frames (sizes = 2^n)

Demand paging has won in practice!

Page replacement

• What if no free page fram is available when a request comes in?
  • One page has to be preempted to create space for the new page!
  • Select pages with unchanged content (refer to the dirty bit in the page table entries)
  • Preemption of a page implies paging it to disk if its contents were changed
• Sequence of events:
  1. page fault: trap into the OS
  2. page out a page frame, if no free page frame is available
  3. page in the requested page
  4. repeat the memory access
• Problem: which page to choose to be paged out (the "victim")?

Replacement strategies

• We will discuss replacement strategies and their effect on access sequences (also: access or reference orders)
• Access sequence
  • Sequence of page numbers which represents the memory access behavior of a process
  • Determine access sequences, e.g. by recording the addresses accessed by a process
    • Reduce the recorded sequence to only page numbers
    • Conflate consecutive accesses to the same page to one
• Example access sequence:
  • 1, 2, 3, 4, 1, 2, 5, 1, 2, 3, 4, 5

Least recently used (LRU)

• Backward distance
  • Time since the last access to the page

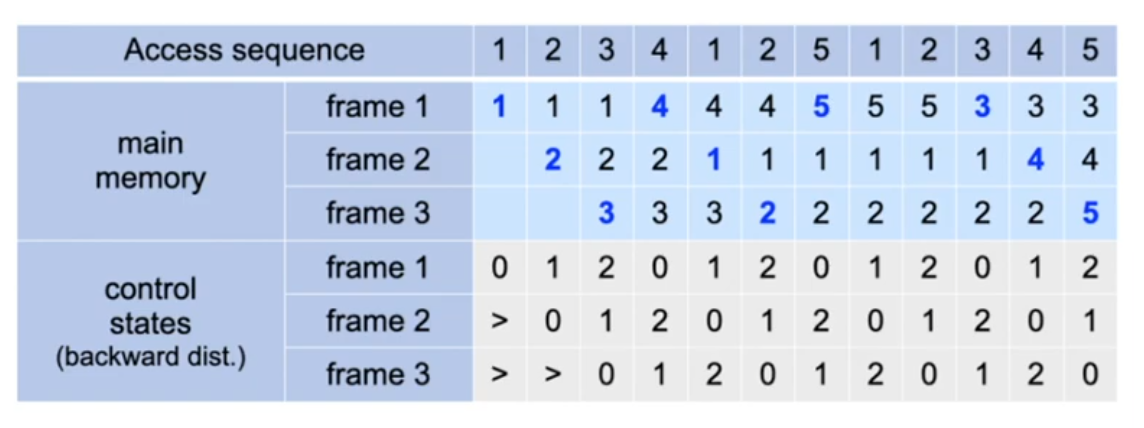

• LRU strategy (10 page ins)
  • "Replace the page with the largest backward distance!"

Least recently used (LRU) (2)

• No anomaly
  • In genreal: there exists a class of alorithms (stack algorithms) that do not show an anomaly:
    • For stack algorithms with k page frames, the following holds: At every point in time a subset of the pages is paged in that would also be paged in at the same time in a system with k+1 page frames!
    • LRU: the most recently used k pages are paged in
    • OPT: the k pages are pages in which will be accessed next
• Problem
  • Implementing LRU requires hardware support
  • Every memory access has to be considered

Least recently used (LRU) (3)

• Naive idea: hardware support using counters
  • CPU implements a counter that is incremented with every memory access
  • For every access, the current counter value is written into the respective page descriptor
  • Select the page with the lowest counter value (search!)
• large implementation overhead
  • Many additional memory accesses required
  • Large amount of additional memory required
  • Minimum search required in the page fault handler

Lecture 10, part 2: Virtual memory and thrashing

Second chance (clock) (1)

• This approach works: use reference bits
  • Reference bit in the apge descriptor is set automatically by the hardware when a page is accessed
  • easier to implement
  • fewer additional memory accesses
• Moden processors/MMUs support reference bits (e.g. called "access" bit on x86)
• Objective: approach LRU
  • the reference bit of a newly paged in page is initially set to 1
  • when a "victim" page is needed, the reference bits are checked in order
    • if the reference bit = 1, set it to 0 (second chance)
    • if the reference bit = 0, replace this page!
• If all reference bits are = 1, then second chance is a FIFO

Second chance (clock) (2)

• Second chance can also show the FIFO anomaly
  • If all reference bits are = 1, this is a FIFO order
• In the common case, however, second chance is close to LRU
• Extension
  • Modification bit can be considered in addition (dirty bit)
  • Three classes of (reference bit, modification bit):
    • (0, 0), (1, 0) and (1, 1)
  • Search for the "lowest" class (used in macOS)

Discussion: free page buffer

...accelerates page fault handling

• Instead of replacing a page, a number of free pages is always kept in memory
  • Pageout take place "in advance"
  • More efficient: time to replace a page is dominated by the time required for the page in (no need to find a victim and page it out)
• Page-to-page frame relation is still valid after paging out
  • In case the page is used again before it would be replaced, it can be reused with high efficiency
  • The page is no longer allocated to the free page buffer and is reallocated to its respective process

Page frame assignment (1)

• Problem: Distribution of page frames to processes
  • How many page frames should a single process use?
    • Maximum: limited by the number of page frames
    • Minimum: depends on the processor architecture
      • At least the number of pages which is necessary to execute a machine instruction
• Identical share size
  • The number of frames allocated to a process depends on the number of processes
• Program size dependent shares
  • Program size is considered when determining the number of page frames to allocate to it

Page frame assignment (2)

• Global and local page requests
  • Local: a process only replaces its own pages
    • Page fault behavior depends only on the behavior of the process
  • Global: a process can also replace pages of other processes
    • More efficient, since unused pages of other processes can be used

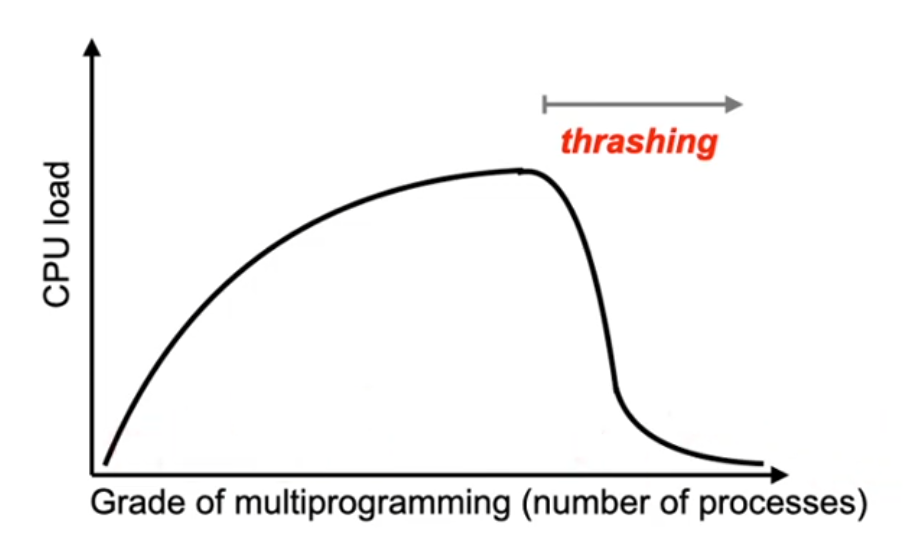

Thrashing (1)

• A page that was paged out is accessed immidiately after the page out happened
  • The process spends more time waiting to handle page faults than with its own execution

Thrashing (2)

• Causes
  • A process is close to its page maximum
  • Too many processes in the system at the same time
  • Suboptimal replacement strategy
• Local page requests avoids thrashing between processes
• Allocating a sufficiently large number of page frames avoids thrashing within process pages
  • Limitation of the number of processes

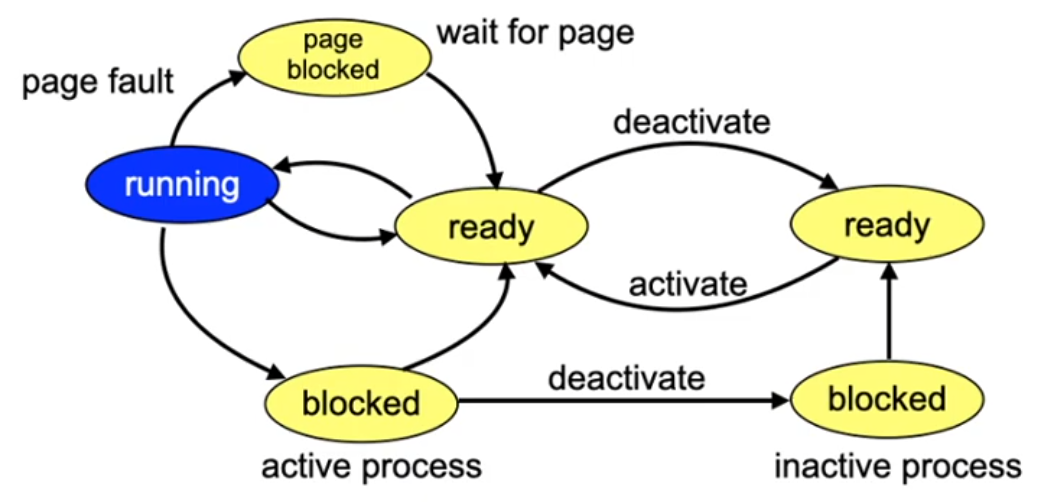

Solution 1: swapping of processes

• Inactive processes do not require page frames
  • Page frames can be distributed among fewer processes
  • Has to be combined with scheduling to
    • avoid starvation
    • enable short answer (reaction) times

Solution 2: working set model

• Set of pages really needed by a process (working set)
  • Can only be approximated, since this is usually not predictable
• Approximation by looking at the more recently accessed $\Delta$ pages
  • Appropriate selection of a $\Delta$
    • too large: overlapping of local access patterns
    • too small: working set does not contain all necessary pages
  • Notice: $\Delta > |\text{working set}|$, since a single page is usually accessed multiple times in a row

Working set model

• Approximate accesses by time values
  • A certain time interval is ~proportional to the number of memory accesses
• Requires measuring the virtual time of the process
  • Only that time is relevant in which the process is in state RUNNING
  • Each process has its own virtual clock

Determining the working set and timers (1)

• Naive idea: approximate the working set using:
  • A reference bit
  • Age information per page (time interval in which the page was not used)
  • Timer interrupt (using a system timer)
• Algorithm
  • Periodic timer interrupts are used to update the age information using the reference bit
    • reference is set (page was used) -> set page to zero
    • else increase the age information
    • only pages of the currently running process "age"
  • Pages with an age > $\Delta$ are no longer considered to be part of the working set of the respective process

Determining the working set and timers (2)

• Imprecise
  • Reduce the time intervals: more overhead, but more precise measurement
  • However, the system is not sensitive to this imprecision
• Inefficient
  • A large number of pages has to be checked

Determine the working set with WSclock

• This is the real solution: WSClock algorithm (working set clock)
  • Works like the previous clock algorithm
  • A page is only replaced if
    • it is not an element of the working set of its process
    • or the process is deactivated
  • When resetting the reference bit, the current time of the respective process is noted
    • this time can be e.g. be kept and updated in the process control PCB
  • Determining the working set:
    • Calculate the difference between the virtual time of the process and the time stamp in the page frame

Discussion: working set problems

• Time stamps also need memory
• It is not always possible to ascribe a page to a specific process
  • shared memory pages are the rule rather than an exception in modern operating systems
    • shared libraries
    • shared pages in the data segment (shared memory)
• Solution 3: Thrashing can be avoided in an easier way by directly controlling the page fault rate
  • Measure per process
    • rate < limit: reduce page frame set
    • rate > limit: enlarge page frame set

Loading strategy

• Load on demand
  • Safe approach
• Prefetch
  • Difficult: Pages that are paged out are not used right now, only later
  • Often, one machine instruction leads to multiple page faults
    • Prefetching of these pages can be realized by interpreting the machine instruction that causes the first page fault. This will avoid any additional page faults for this instruction.
  • Load the complete working set in advance when a process is swapped in
  • Detect sequential access patterns and prefetch subsequent pages

Conclusions

• Virtual memory allows to use large logical address spaces even if the physical memory is small
• However, this involves some overhead
  • Hardware overhead
  • Complex algorithms in the operating system
  • "Surprising" effects (such as "thrashing")
  • Timing behavior not predictable

Simple (special purpose) systems that do not necessarily need these features should better not implement them
